7430 8-Input NAND Gate IC

Description

7430 8-Input
NAND Gate IC

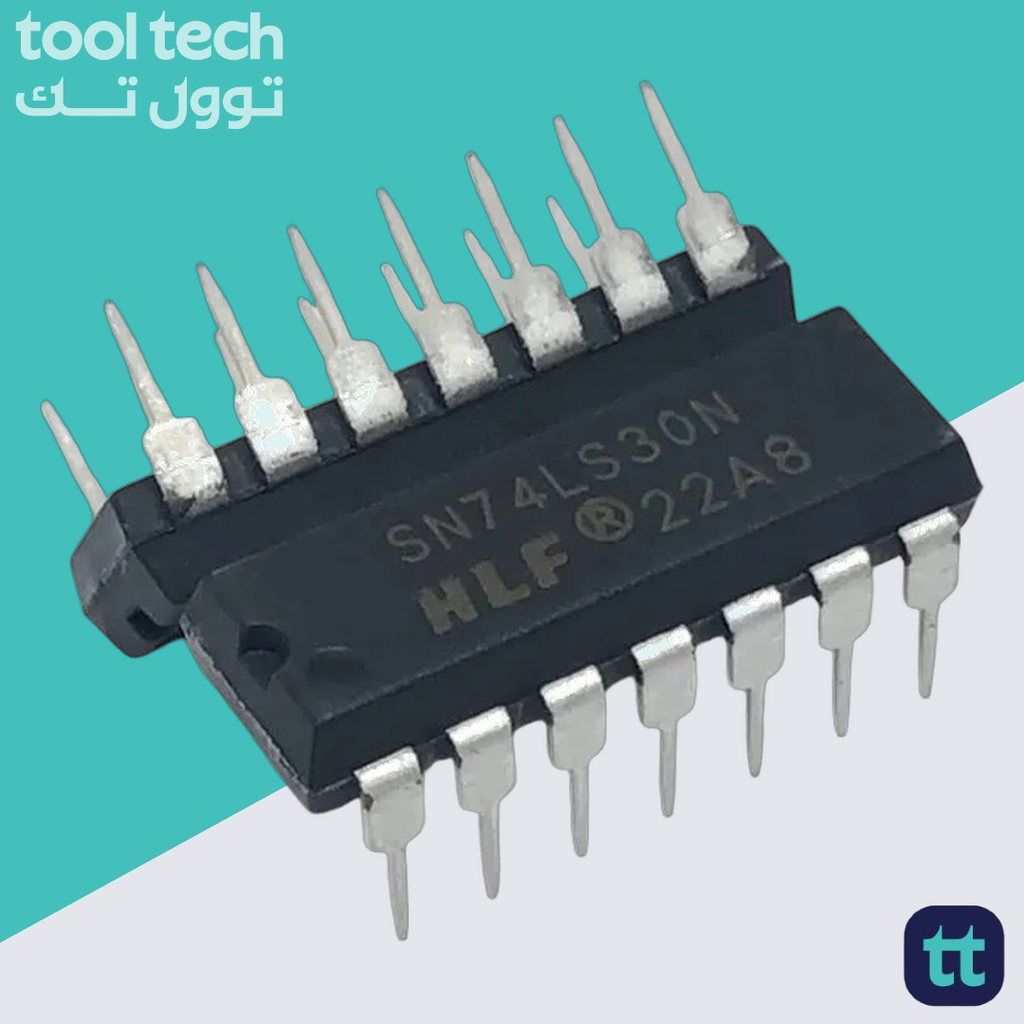

The SN74LS30N is an 8-input NAND gate integrated circuit designed for digital logic applications. It offers a high degree of reliability and is fully compatible with TTL (Transistor-Transistor Logic) and DTL (Diode-Transistor Logic) logic levels. This IC is used in various industrial, digital logic, and control systems. Available in both DIP14 and, the SN74LS30N is suitable for compact and efficient designs.

Features:

8-input NAND gate IC.

Fully compatible with TTL and DTL input/output logic levels.

Available in DIP14 packages.

Low propagation delay: 20ns (PLH) and 10ns (PHL).

Wide operating temperature range: 0-70°C.

Specifications:

Parameter

Value

Manufacturer

Shenzhen honglifa Electronics Co

Model Number

SN74LS30N

Component Description

8-input NAND Gate IC

Package

DIP14

Logic Family

LS

Propagation Delay

20ns (PLH), 10ns (PHL)

Voltage – Supply

4.75V to 5.25V

Operating Temperature

0°C to 70°C

Input Logic Level – Low

0.7V

Input Logic Level – High

2V

Output Logic Level – Low

0.4V

Output Logic Level – High

2.7V to 3.7V

Quiescent Current (Iq)

0.3mA to 1.1mA

Current – Output High (IOH)

-400uA

Number of Channels

8

Logic Type

NAND Gate

Current – Output Low (IOL)

8mA

Pin Configuration:

Foot Print:

Applications:

Digital logic drivers.

Industrial control systems.

Battery-powered electronic devices.

Logic gates for digital systems.

Package Include:

1x
7430 8-Input NAND Gate IC.

Datasheet:

SN74LS30N
