Description

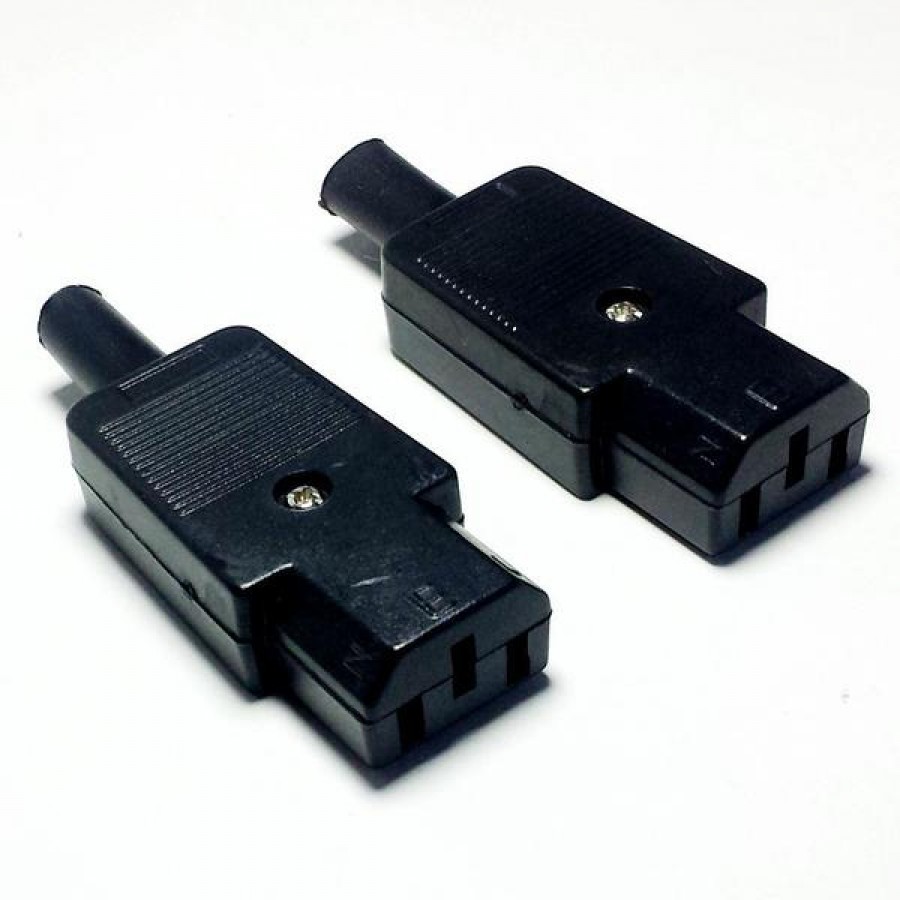

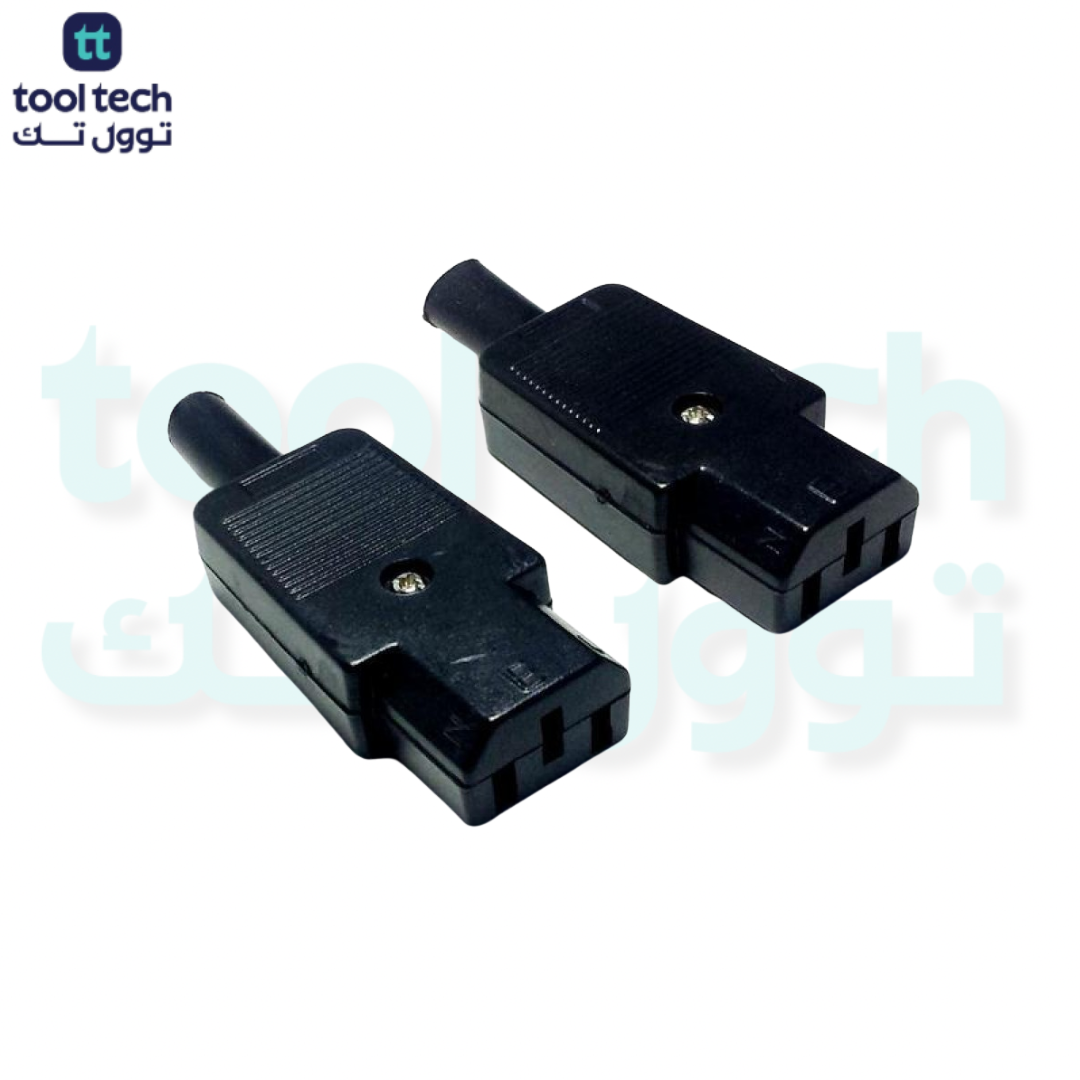

AC Power Extension Plug Female Jack Socket (Model: pp07)
Product Overview
The pp07 AC Power Extension Plug Female Jack is a heavy-duty, rewireable electrical socket connector designed to construct custom extension cords, repair damaged power lines, or deploy inline trailing sockets. Engineered with a spacious internal wire chamber, this rugged component allows field technicians to easily route, strip, and terminate high-gauge mains wires onto reliable internal screw clamp contacts.
This industrial-grade female receptacle accepts standard European dual-pin and grounded plugs securely, preventing accidental loose contacts that can trigger electrical arcing or equipment drops. Constructed with a high-impact, flame-retardant outer shell and high-elasticity internal brass contact sleeves, it delivers excellent thermal performance and dependable power transmission across high-wattage hardware arrays and benchtop equipment.
Key Features
-
Rewireable Open-Chamber Architecture: Designed with an easily accessible internal layout and industrial screw-down termination plates for fast, secure wire clamping during manual field assembly.
-
Universal High-Elasticity Receptacle: Equipped with reinforced internal brass alloy contact collars that maintain tight mechanical tension over thousands of insertion cycles, eliminating static hums or loose connections.
-
Flame-Retardant Engineered Housing: Molded from heavy-duty, impact-resistant polymer (Model: pp07) that easily withstands accidental drops, crushing forces, and localized electrical heating.
-
Integrated Compression Strain Relief: Features a built-in internal clamp collar and a flexible rubber boot exit pathway to compress the wire jacket uniformly, protecting internal core connections from pulling tension and severe bends.
-
Standard Grounded Configuration: Built with explicit internal terminal markings for Phase (L), Neutral (N), and dedicated Safety Ground (E) to guarantee absolute short-circuit protection and safe implementation.
Technical Specifications
| Parameter | Specification |
| Component Type | Inline AC Power Extension Female Jack / Trailing Socket |
| Stock Number / Model | pp07 |
| Plug/Socket Compatibility | Standard 2-Pin Grounded / Ungrounded European Plugs |
| Termination Style | Heavy-Duty Internal Screw Clamp Terminals |
| Conductor Wiring Layout | 3-Wire System (Line, Neutral, dedicated Safety Ground) |
| Housing Material | High-Impact, Flame-Retardant ABS / Polycarbonate Polymer |
| Internal Contacts | High-Conductivity Phosphor Bronze / Brass Alloy Sleeves |
| Rated Operating Voltage | 220V – 250V AC Max |
| Rated Current Load | 10A – 16A Continuous Max (Depending on internal wire gauge) |
| Insulation Resistance | $\ge 100\,\text{M}\Omega$ at 500V DC |
| Dielectric Strength | 2000V AC for 1 Minute |
| Compatible Cable Diameters | Accommodates $3 \times 0.75\,\text{mm}^2$ up to $3 \times 1.5\,\text{mm}^2$ wire lines |
Applications
The ideal, heavy-duty solution for custom power routing, cord assembly, and industrial maintenance benches:
-
Custom Extension Cord Fabrication: Allowing assembly technicians to build heavy-duty, custom-length mains extension lines specifically tailored for factory floors, test labs, and workshop spaces.
-
Power Supply Cord Repairs: Serving as a reliable, heavy-duty replacement end-piece for fixing severed or failed female receptacles on commercial trailing cords and industrial equipment lines.
-
Benchtop Instrument Grid Routing: Easily integrated into modular power strips or trailing nodes to supply steady power to switching DC power supplies, load banks, and lab instruments.
-
Industrial CNC & 3D Printer Panels: Providing an easily swappable, inline disconnect node for high-current mains voltage running directly into heavy heating blocks, step drivers, and controller frameworks.
