DC Geared Motor Dual Shaft 3:12VDC 450RPM

Description

escription:

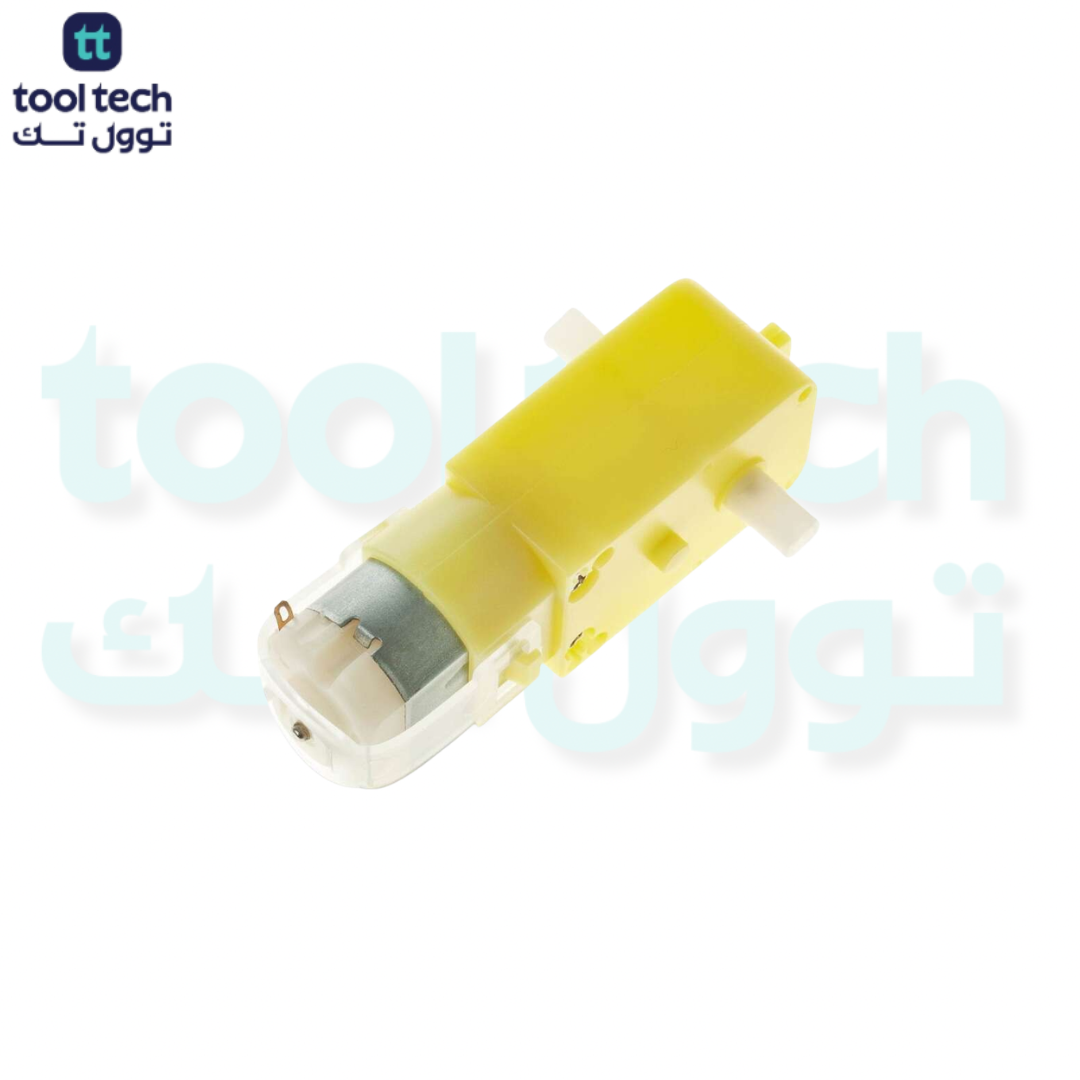

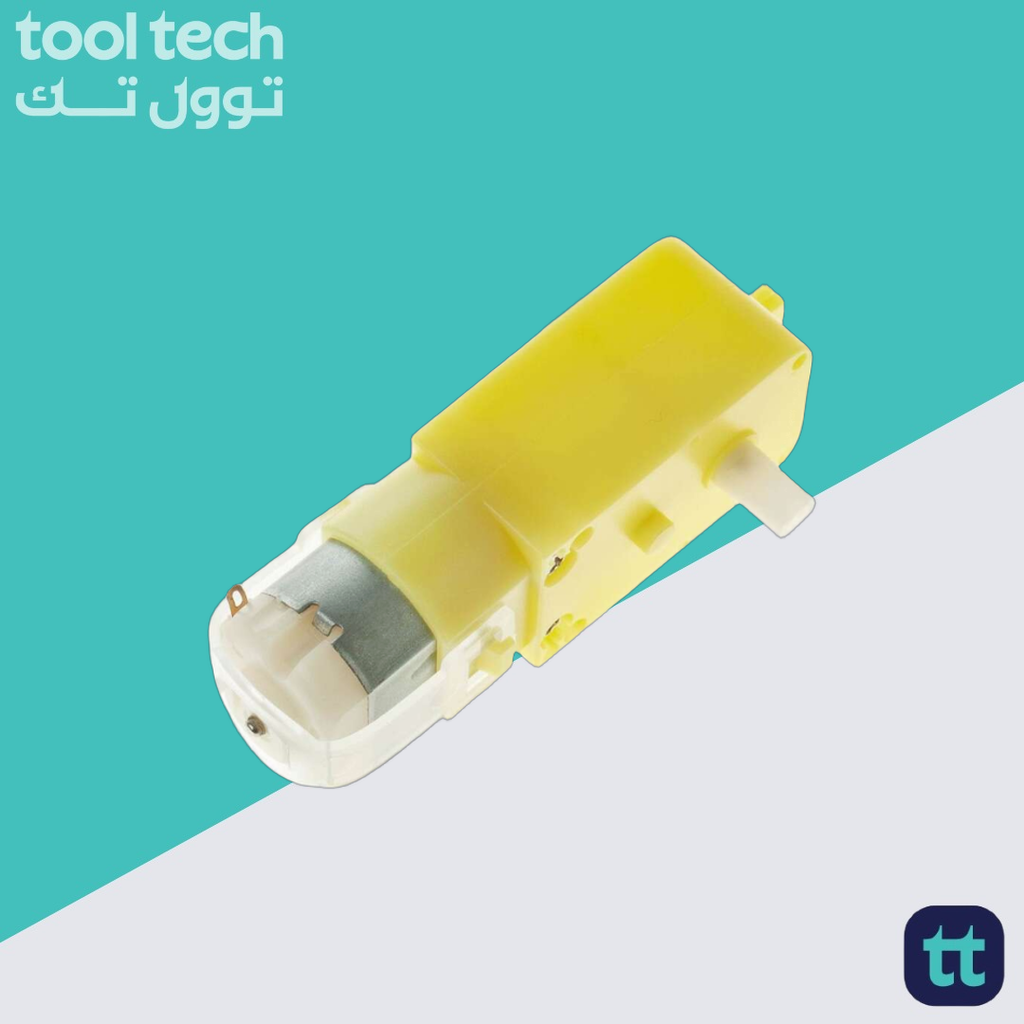

Plastic motor with gearbox. The dual shaft turns up to about 450 rpm (Max). Powered by 3-12 volts, draws an average of 190 mA of current (max 250 mA).

Motor Specifications :

• Power supply voltage: 3-12 V
• Power consumption: 190 mA (max. 250 mA)
• Speed: 150 ± 10 rpm (at 3V)
• Speed: 250 ± 10 rpm (at 6V)
• Speed: 450 ± 10 rpm (at 12V)
• Shaft diameter: 5.4 mm
• The shaft is cut on both sides
• The shaft has a threaded hole to fit M3 screws (not supplied)
• The motor has a double-shaft
