Description

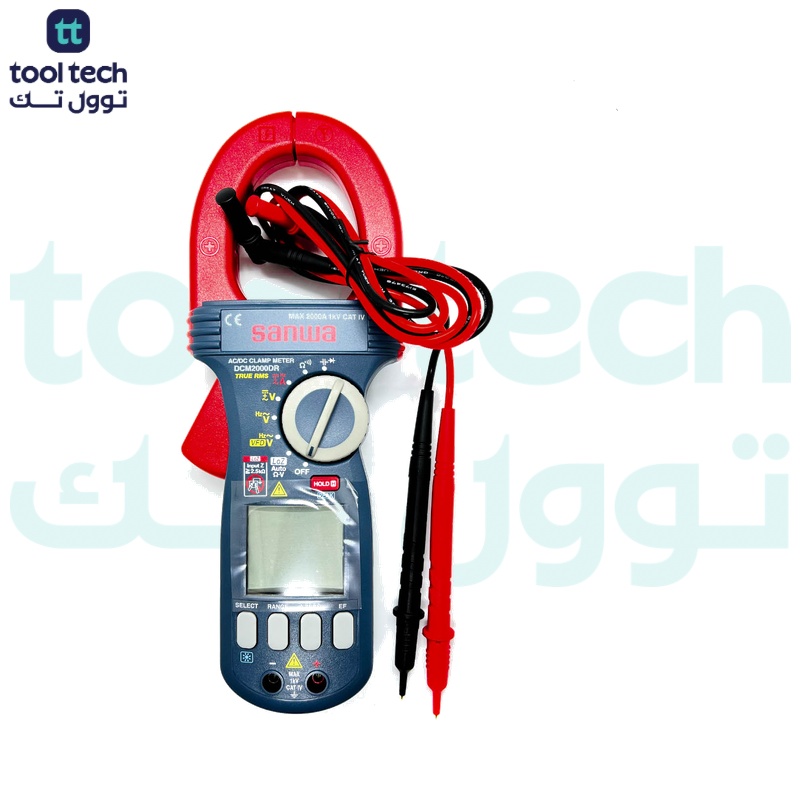

Sanwa DCM2000DR AC/DC True RMS Clamp Meter
The Sanwa DCM2000DR AC/DC True RMS Clamp Meter is a professional-grade digital instrument designed for high-current measurements up to 2000A with CAT IV 1000V safety compliance. Featuring a 6000-count dual display with backlight, it provides True RMS AC readings, simultaneous voltage/current and frequency display, and VFD (Variable Frequency Drive) support for industrial applications. Additional functions include DC current/voltage, resistance up to 40MΩ, capacitance to 2000μF, electric field (EF) detection, peak hold (5ms), and low-pass filtering to minimize ghost voltage effects. Powered by 2x R6P (AA) batteries with auto power save after 30-34 minutes, it measures Ø55mm conductors up to 20x66mm and ensures overload protection at DC/AC 1100V CAT or 2000A. Ideal for low-voltage circuitry, electric equipment, power facilities, and motor testing, it includes a carrying case, manual, and TL-29 test leads.
Features
- True RMS measurement ensures accurate readings even with distorted or non-linear waveforms, making it reliable for modern electrical systems.
- AC/DC current measurement up to 2000A provides high versatility for industrial, maintenance, and power applications.
- Dual display with frequency allows simultaneous monitoring of multiple parameters, improving efficiency during diagnostics.
- EF (Electric Field) detection enables non-contact voltage sensing, increasing user safety and quick fault detection.
- Low-pass filter and VFD measurement improve accuracy when working with variable frequency drives and noisy signals.
- Low input impedance function reduces ghost voltage effects, ensuring more reliable voltage readings.
- Data hold, range hold, and peak hold functions enhance usability by capturing and stabilizing readings in dynamic conditions.
- Auto power save feature extends battery life and improves energy efficiency during field use.
- CAT IV 1000V safety rating ensures high protection level, making it suitable for demanding electrical environments.
Specifications
| Parameter | Value |
|---|---|
| Display Counts | 6000/9999Hz |
| Sampling Rate | 5times/sec |
| AC Current Range/Accuracy | 200A/2000A±(2.0%+5) |
| DC Current Range/Accuracy | 200A/2000A±(2.0%+5) |
| AC Voltage Range/Accuracy | 6V/60V/600V/1000V±(1.2%+5) |
| DC Voltage Range/Accuracy | 6V/60V/600V/1000V±(0.5%+5) |
| Resistance Range/Accuracy | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ±(0.5%+5) |
| Frequency Range/Accuracy | 10-1999Hz±(0.1%+4) |
| Capacitance Range/Accuracy | 60nF/600nF/6μF/60μF/600μF/2000μF±(2.0%+5) |
| Clamp Diameter | Ø 55mm |
| Conductor Size | 20mm x 66mm |
| Power Supply | 2xR6P |
| Battery Life (Current) | 80hrs |
| Battery Life (Others) | 240hrs |
| Dimensions | 264mm x 97mm x 43mm |
| Safety Standards | CATIV1000V |
| Overload Protection | DC/AC1100VCTDC/AC2000A |
| Bandwidth | 50-400Hz |
Applications
- Current and voltage measurements in low-voltage circuitry.
- Testing electric equipment and machinery.
- Monitoring power supply facilities and distribution systems.
- Electric field strength detection for safety checks.
- Variable Frequency Drive (VFD) voltage and frequency measurements in industrial motors.
- Resistance, capacitance, and diode testing as a multimeter.
- Peak hold measurements for transient current analysis.
Package Contents
- 1 x sanwa DCM2000DR AC/DC True RMS Clamp Meter.
- 1 x TL-29 test leads.
- 1 x Carrying Case.
- 1 x Instruction Manual.
- 1 x 2 x R6P (AA) batteries.
