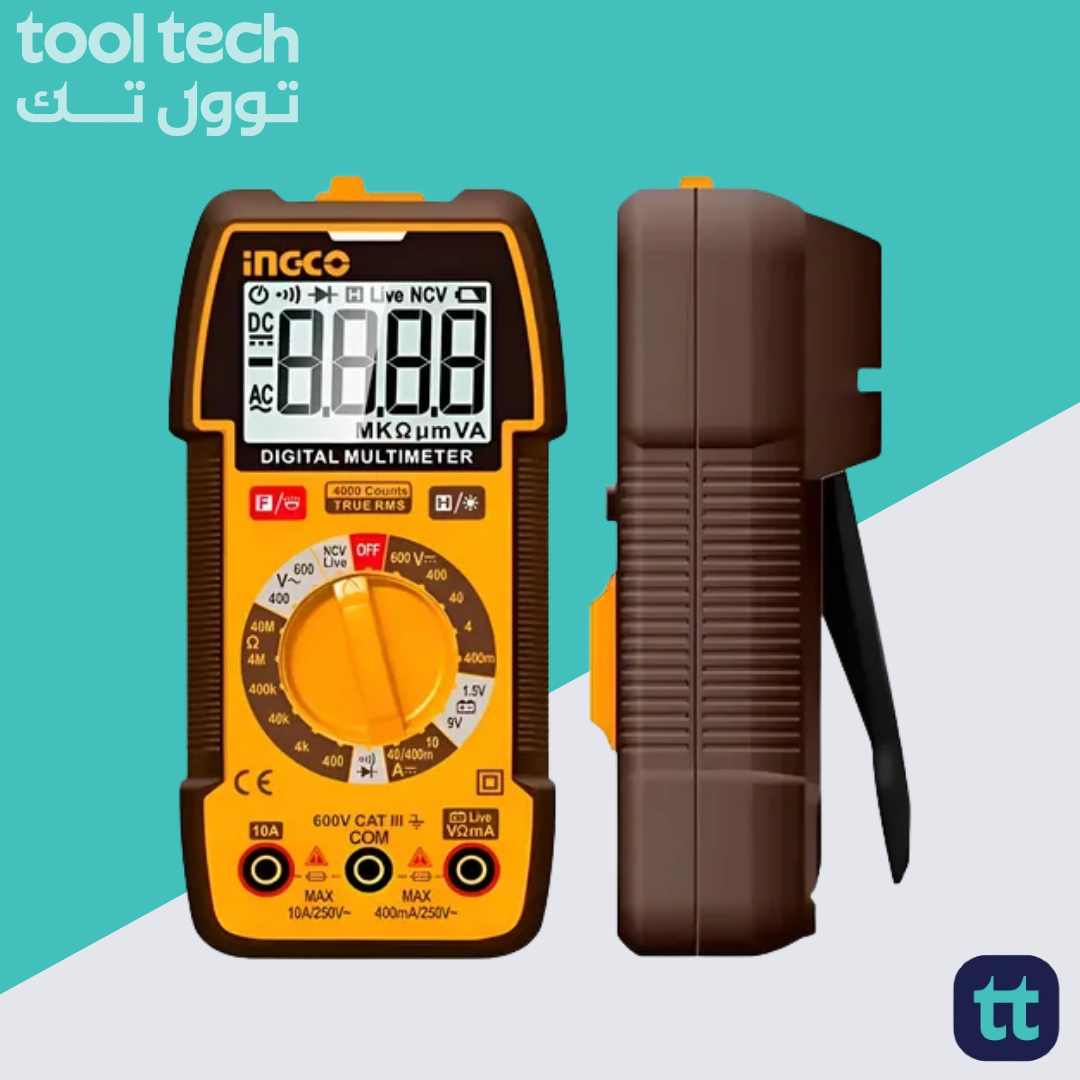

DM36002 Digital multimeter

Description

DM36002 Digital multimeter — Compact True RMS troubleshooting
The DM36002 delivers practical measurement capability for electrical troubleshooting with a TRUR RMS 4000 counts display. It covers DC/AC voltage, DC current, resistance, and includes diagnostic functions such as NCV, diode test and data hold for straightforward readings.

Key Benefits

1) True RMS accuracy

The TRUR RMS 4000 counts display provides clearer AC and DC readings compared with non-RMS meters for everyday diagnostics.

2) Wide voltage and current coverage

Measure DC/AC voltage across four ranges (400mV / 4V / 40V / 600V) and DC current across 40mA / 400mA / 10A ranges to handle common electrical checks.

3) Built-in diagnostic tests

Includes resistance ranges, diode test and NCV to help identify wiring issues and component faults quickly.

4) Field-ready visibility

Both backlight and an integrated flashlight improve visibility in dim environments for on-the-spot measurements.

5) Ready to use out of the box

Supplied with 2 × LR03 AAA batteries and packed in a double blister for easy storage and immediate use.

Use Case Section

Typical applications
The DM36002 Digital multimeter is suitable for:

• General electrical troubleshooting and maintenance
• Checking DC/AC voltage on circuits and equipment
• Measuring DC current for basic electrical tests
• Verifying resistors and performing diode checks
• Non-contact voltage detection (NCV) for live-wire awareness
• Battery condition checks using the battery test function

These applications are inferred from the published measurement ranges and built-in diagnostic functions.

Features Section

Essential features that help with routine electrical measurements:

• Model: DM36002
• Display: TRUR RMS 4000 counts
• DC/AC Voltage ranges: 400mV / 4V / 40V / 600V
• DC Current ranges: 40mA / 400mA / 10A
• Resistance ranges: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Diode test and NCV (non-contact voltage detection)
• Data hold and battery test functions
• Backlight and built-in flashlight for low-light use
• Low battery indication; includes 2 × LR03 AAA batteries

What’s in the Box

Inside the package, you get:

• 1 × DM36002 Digital multimeter

Technical Specifications

All specifications above are taken from the supplied Excel description.

Compact and practical, the DM36002 combines a TRUR RMS 4000-count display with voltage, current and resistance measurement ranges plus NCV and diode testing. It ships with 2 LR03 AAA batteries and is packed by double blister for convenient storage and transport.

Callout Blocks

TRUR RMS Display
Accurate AC/DC readings with a 4000-count display.

NCV & Diode Test
Quick checks for live wires and diode verification.

Includes Batteries
Supplied with 2 × LR03 AAA batteries for immediate use.

FAQ

What display does the DM36002 use?
The meter features a TRUR RMS 4000 counts display.

What voltage ranges can it measure?
DC/AC voltage ranges are 400mV, 4V, 40V and 600V.

What current ranges are supported?
DC current ranges are 40mA, 400mA and 10A.

Does it include non-measurement features?
Yes — it includes NCV, diode test, data hold, battery test, backlight, flashlight and low battery indication.

Are batteries included?
Yes. The package includes 2 × LR03 AAA batteries.
