Description
DESCRIPTION

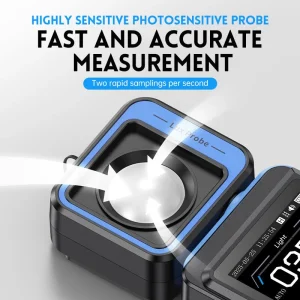

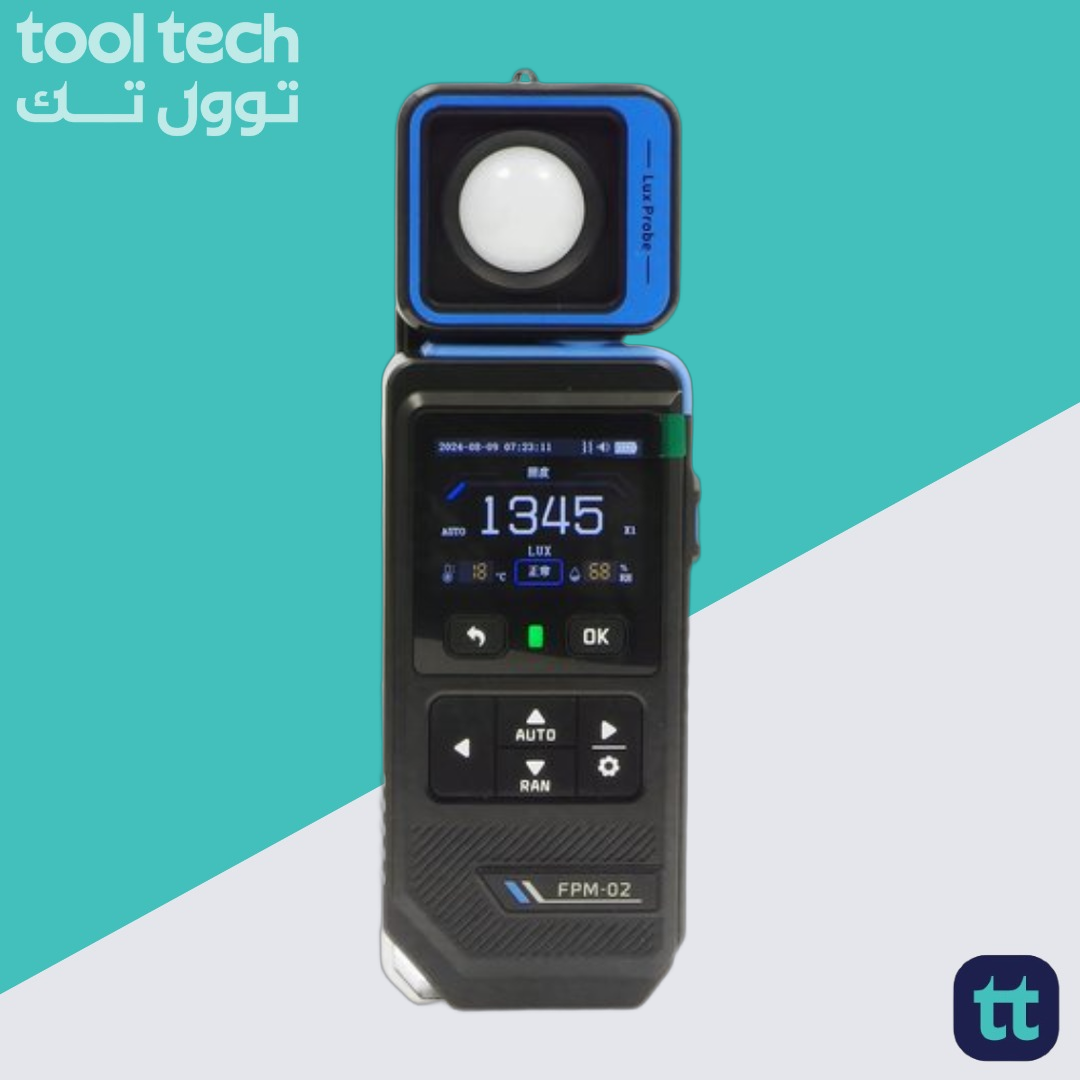

FNIRSI FPM-02 99990 Lux Temperature Humidity Lightness Luxmeter
The FNIRSI FPM-02 is a multifunction portable lux meter designed for accurate measurement of illumination intensity along with ambient temperature and humidity monitoring. It features a high-sensitivity silicon photo detector with optical filtering for reliable light measurement in indoor environments. The device supports Lux (LUX) and Foot-Candle (FC) measurement units, making it suitable for lighting inspection, photography studios, classrooms, offices, factories, greenhouses, warehouses, and environmental testing applications.
The FPM-02 includes a 2.0-inch color display, real-time curve visualization, data hold function, threshold alarm recording, sleep mode, and adjustable brightness settings. It also supports environmental monitoring by displaying humidity and temperature simultaneously with illumination data. The portable rechargeable design and user-friendly interface make it useful for electricians, photographers, facility managers, agricultural monitoring, and industrial maintenance personnel.
Features:
- Multifunction digital lux meter.
- Measures illumination intensity.
- Temperature and humidity monitoring.
- 2.0-inch color display.
- Real-time data visualization.
- Lux and Foot-Candle unit support.
- High-sensitivity silicon photo detector.
- Optical filter sensor design.
- Data hold function.
- Alarm threshold recording.
- Automatic and manual range adjustment.
- Adjustable screen brightness.
- Sleep mode support.
- Compact handheld design.
- Rechargeable battery operation.
- Real-time curve display.
- Portable lightweight construction.
- Indoor environmental monitoring support.
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI |
| Model | FPM-02 |
| Device Type | Digital Lux Meter |
| Display | 2.0-inch Color Screen |
| Measurement Units | LUX / FC |
| Lux Measurement Range | 1000 / 9999 / 99990 LUX |
| Foot-Candle Range | 100 / 1000 / 10000 FC |
| Resolution | <1000: 0.1 LUX |
| Sensor Type | Silicon Photodetector with Optical Filter |
| Accuracy (Standard Lamp) | ±(3% + 5 Lux) |
| Accuracy (Other Visible Light) | ±(6% + 5 Lux) |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | Max 80% RH |
| Storage Temperature | -10°C to 50°C |
| Storage Humidity | Max 70% RH |
| Product Dimensions | 63 × 28 × 182 mm |
| Product Weight | 205g |
| Displayed Parameters | Illumination, Temperature, Humidity |
| Indoor Use | Supported |
Applications:
- Workplace light inspection.
- Photography studio lighting measurement.
- Agricultural greenhouse monitoring.
- Office illumination testing.
- Classroom lighting analysis.
- Warehouse environmental monitoring.
- Laboratory measurements.
- Industrial maintenance inspection.
- Interior lighting optimization.
- Environmental monitoring.
- Electrical installation inspection.
- Building safety compliance testing.
Package Included:
- FNIRSI FPM-02 Lux Meter.
- USB Type-C Cable.
- User Manual.
- Storage Packaging.
