Description

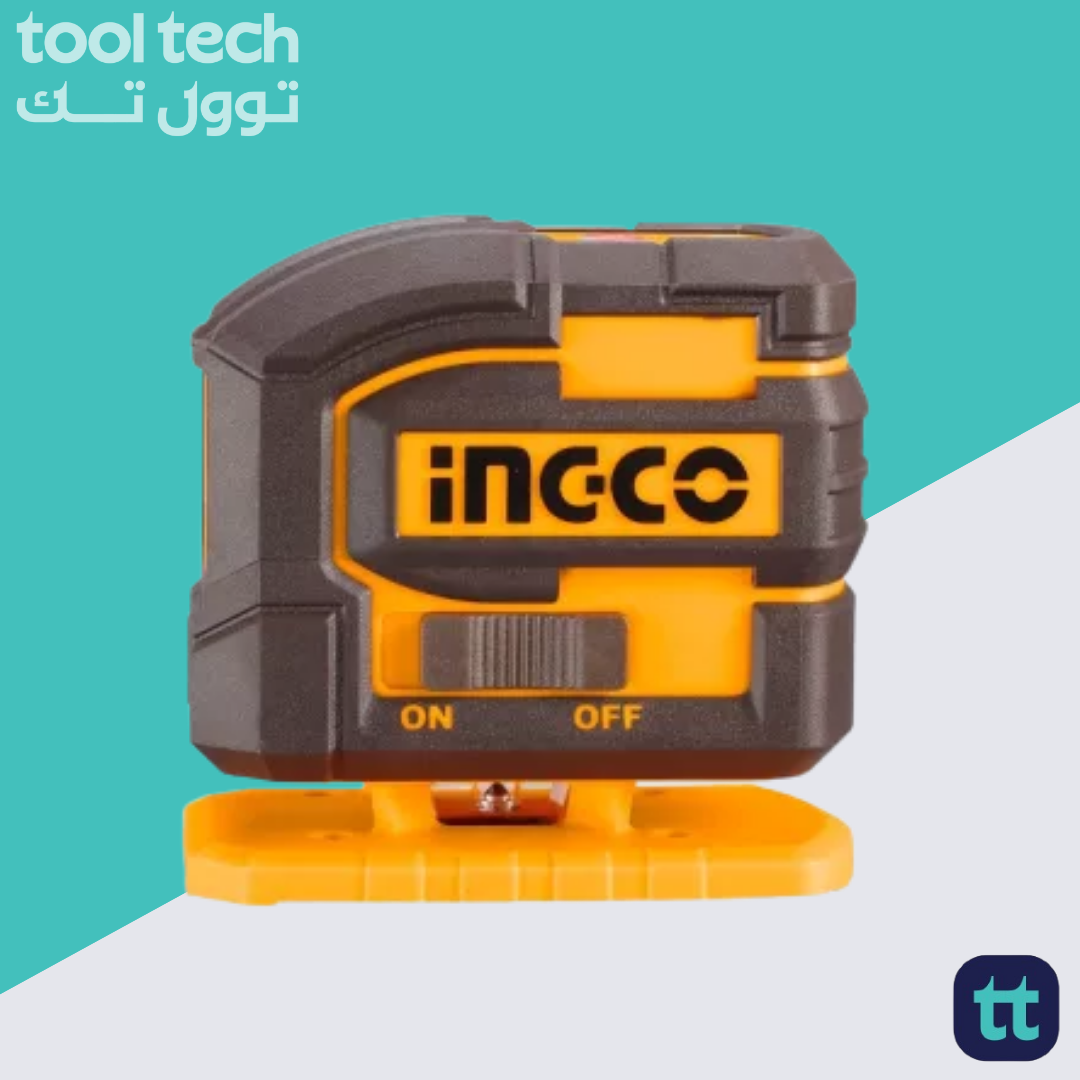

Fast, accurate 360° self‑leveling line laser
The HLL306502 delivers quick self-levelling for interior layout and finishing tasks. It projects a 360° horizontal line plus a vertical line, levels in ≤3 s, and supports a working range up to 0–35 m for room-scale alignment.
Key Benefits
1) Full-room alignment
360° horizontal plus one vertical laser line gives continuous reference across an entire room for consistent alignment.
2) Fast self-levelling
Automatic leveling is completed in ≤3 s for rapid setup and less time adjusting the tool.
3) Reliable accuracy
Levelling and line accuracy of ±1.5 mm @ 7 m helps keep installations true and consistent.
4) Long working reach
Effective working range to 0–35 m supports larger rooms and extended layout tasks.
5) Convenient charging and accessories
USB type-C charging plus included remote control, magnetic bracket, and canvas bag simplify power and mounting.
Use Case Section
Ideal for
The HLL306502 Self-leveling line laser is suitable for:
- Tiling and floor layout
- Aligning wall frames and partitions
- Installing cabinets and shelving
- Leveling drop ceilings and trims
- Interior layout and finishing work
These applications are informed by the product’s published features such as 360° lines, range, and accuracy.
Features Section
Key features at a glance.
- Model: HLL306502 — Self‑Leveling Line Laser
- 360° horizontal line plus one vertical line for continuous reference
- Working range: 0–35 m
- Levelling accuracy: ±1.5 mm @ 7 m; Line accuracy: ±1.5 mm @ 7 m
- Levelling time: ≤3 s; Self-levelling angle: ≤4°
- Laser type: 520±10 nm; Laser Class II: <1 mW
- Battery charging port: USB type‑C
- Operating temperature: 0 ~ +40℃; Storage temperature: -10 ~ +50℃
- Includes: 1 × remote control, 1 × magnetic bracket, 1 × USB type‑C cable; packed in a canvas bag
What’s in the Box
Inside the package, you get:
- 1 × HLL306502 Self-leveling line laser
Technical Specifications
| Specification | Details |
|---|---|
| Model | HLL306502 |
| Product Type | Self-Leveling Line Laser |
| Green Laser Beams Working Range | 0~35m 1 Pcs 360° horizontal and 1 pcs vertical lines Levelling accuracy: ±1.5mm@7m Line accuracy: ±1.5mm@7m Levelling time: ≤3s Suitable for tiling Self-levelling angle: ≤4° Laser type: 520±10nm Laser class Ⅱ: <1mW Operating temperature: 0~+40℃ Storage temperature: -10~+50℃ Battery charging port: USB type-C Include: 1 Pcs remote control 1 Pcs magnetic bracket 1 Pcs USB type-C Packed by canvas bag |
| Working Range | 0~35 m |
All specifications above are taken from the supplied Excel description.
Designed for interior alignment tasks, the HLL306502 combines a room‑wide 360° horizontal reference with a vertical line and precise ±1.5 mm @ 7 m accuracy. Its fast self‑levelling, USB‑C charging, and included mounting accessories make setup straightforward for tiling and general finishing work.
Callout Blocks
360° Coverage
Continuous horizontal line plus vertical line for whole-room reference.
Precision at Distance
±1.5 mm @ 7 m accuracy for reliable alignment.
Ready to Mount
Includes magnetic bracket and remote control; packed in a canvas bag.
FAQ
What laser lines does the HLL306502 project?
It projects one 360° horizontal line and one vertical line.
What is the working range?
The working range is 0–35 m.
How accurate is the leveling?
Levelling accuracy and line accuracy are ±1.5 mm @ 7 m.
How quickly does the unit self-level?
Self-levelling is completed in ≤3 s.
What accessories and charging options are included?
Includes a remote control, magnetic bracket, and USB type‑C cable; the unit charges via USB type‑C and is packed in a canvas bag.
