Description

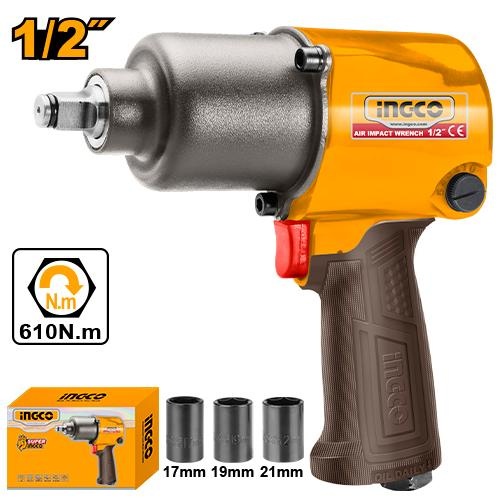

INGCO AIW12562 Air Impact Wrench — 1/2″ Drive, 610Nm
The INGCO AIW12562 is a compact air impact wrench equipped with a 12.5mm (1/2″) square drive, rated maximum torque of 610Nm (450Ft-lb), and a 7000/min no‑load speed. Suited for powered socket fastening where a pneumatic supply is available.
Key Benefits
1) Powerful fastening and loosening
Delivers up to 610Nm (450Ft-lb) for stubborn nuts and bolts.
2) Fast operation
High 7000/min no‑load speed for quick socket turnover and reduced job time.
3) Standard socket compatibility
Uses a 12.5mm (1/2″) square drive compatible with common impact sockets.
4) Compact form factor
At 187mm (7.3″) length and 2.6kgs (5.7lbs), it fits into tighter working spaces while remaining manageable.
5) Workshop‑ready pneumatic performance
Operates at 6.3bar (90psi) with an air consumption of 142.5l/min (5.0cfm), matching standard workshop air supplies.
Use Case Section
Recommended use cases
The INGCO AIW12562 Air Impact Wrench is suitable for:
- Automotive wheel and lug‑nut work (with suitable sockets)
- Vehicle maintenance and repair tasks
- Assembly and disassembly of machinery fasteners
- Workshop bolt and nut tightening/loosening
- Service bay and garage operations
- General heavy‑duty fastening where pneumatic power is available
Applications are suggested based on the tool’s 1/2″ drive and torque specifications.
Features Section
Key specifications and connection details
- Model: AIW12562
- Product Type: Air Impact Wrench
- Square Drive: 12.5mm (1/2″)
- No‑load Speed: 7000/min
- Max. Torque: 610Nm (450Ft-lb)
- Weight: 2.6kgs (5.7lbs)
- Air Consumption / Pressure: 142.5l/min (5.0cfm) at 6.3bar (90psi)
- Air Connections: Air Inlet 1/4″ — Air Hose 3/8″
- Length & Packaging: 187mm (7.3″) length; packaged in color box
What’s in the Box
Inside the package, you get:
- 1 × INGCO AIW12562 Air Impact Wrench
Technical Specifications
| Specification | Details |
|---|---|
| Model | AIW12562 |
| Product Type | Air Impact Wrench |
| Square Drive | 12.5mm(1/2") |
| No-load Speed | 7000/min |
| Max.torque | 610Nm(450Ft-lb) |
| Weight | 2.6kgs(5.7lbs) |
| Air Consumption | 142.5l/min(5.0cfm) |
| Air Pressure | 6.3bar(90psi) |
| Length | 187mm(7.3") |
| Air Inlet | 1/4" |
| Air Hose | 3/8" |
| Packaging | color box |
All specifications above are taken from the manufacturer product page.
The INGCO AIW12562 arrives packaged in a color box. Its 1/4″ air inlet and 3/8″ hose specification align with common workshop pneumatic fittings.
Callout Blocks
High Torque
Maximum 610Nm (450Ft-lb) for demanding fasteners.
Standard 1/2″ Drive
12.5mm square drive for broad socket compatibility.
Pneumatic Specs
Runs at 6.3bar (90psi) with 142.5l/min (5.0cfm) consumption; 1/4″ inlet.
FAQ
What is the square drive size?
The tool uses a 12.5mm (1/2″) square drive.
What maximum torque does the AIW12562 produce?
Maximum torque is 610Nm (450Ft-lb).
What air pressure and consumption does it require?
Rated for 6.3bar (90psi) with an air consumption of 142.5l/min (5.0cfm).
What air connections does it use?
Air inlet size is 1/4″ and compatible air hose size is 3/8″.
How big and heavy is the tool?
Length is 187mm (7.3″) and weight is 2.6kgs (5.7lbs).
