Description
Powerful 1600W Circular Saw

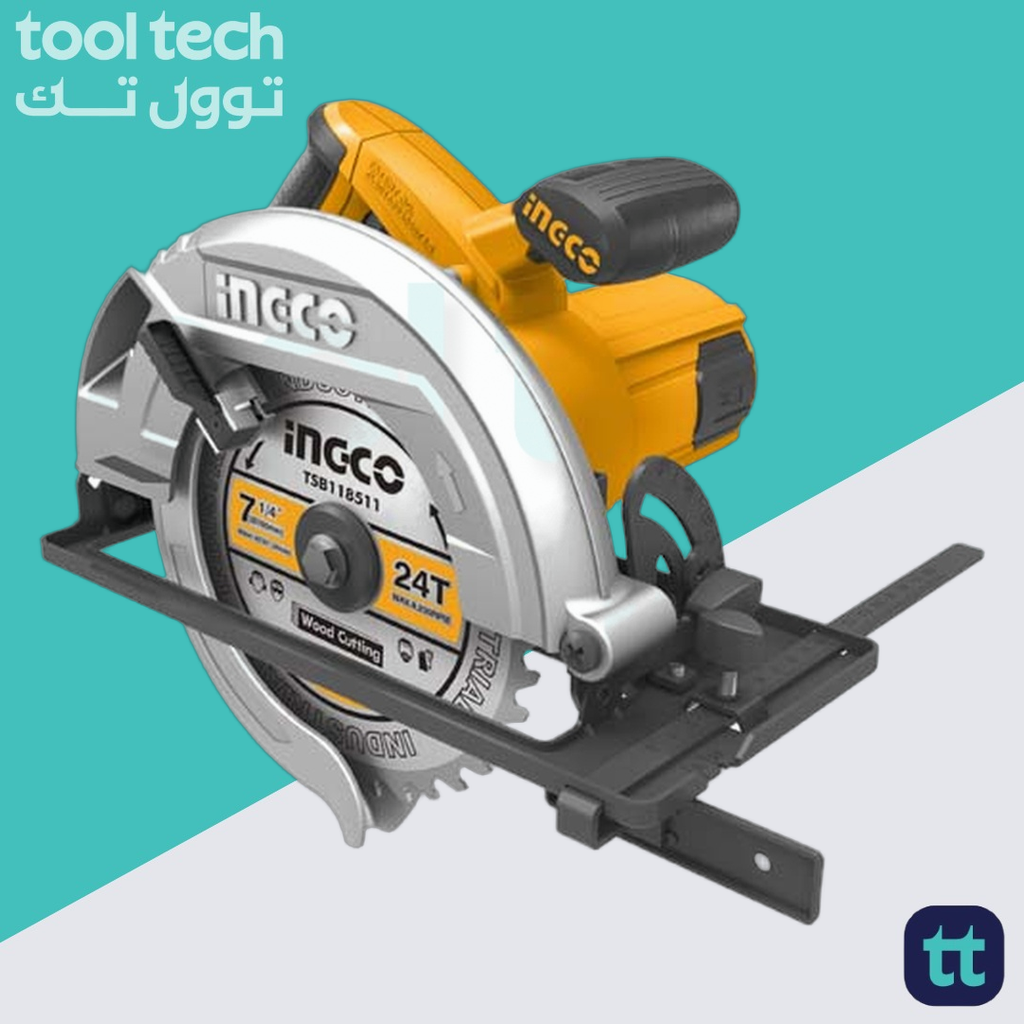

The INGCO CS18568 Circular Saw pairs a 1600W input power rating with a 5000rpm no-load speed to deliver steady cutting performance. It accepts a 185×20mm blade and provides cutting depths of 65mm at 90° and 45mm at 45°, operating from 220–240V~50/60Hz mains.
Key Benefits
1) Reliable power
A 1600W input rating provides consistent motor output for routine cutting tasks.
2) Steady operating speed
A 5000rpm no-load speed supports consistent blade performance for repeatable cuts.
3) Standard blade compatibility
Fits a 185×20mm blade, a common size for a wide range of cutting jobs.
4) Generous cutting depth
Cutting capacity reaches 65mm at 90° and 45mm at 45° for thicker material work.
5) Mains-ready design
Designed for 220–240V~50/60Hz supply so it runs from standard mains power in supported regions.
Use Case Section
Typical applications
The INGCO CS18568 Circular Saw is suitable for:
- Straight and bevel cuts in wood and wood-based panels
- Sizing and trimming boards to length
- Bevel and angled cuts up to 45°
- Workshop cutting tasks that use a 185×20mm blade
- On-site cutting where 220–240V mains power is available
- General carpentry and trimming jobs within the saw’s depth limits
These applications are practical inferences based on the tool’s listed specifications.
Features Section
Key specifications and features:
- Model: CS18568
- Product type: Circular Saw
- Voltage: 220–240V~50/60Hz
- Input power: 1600W
- No-load speed: 5000rpm
- Blade diameter: 185×20mm; cutting depths 65mm (90°) / 45mm (45°)
What’s in the Box
Inside the package, you get:
- 1 × INGCO CS18568 Circular Saw
Technical Specifications
| Specification | Details |
|---|---|
| Model | CS18568 |
| Product Type | Circular Saw |
| Voltage | 220-240V~50/60Hz |
| Input Power | 1600W |
| No-load Speed | 5000rpm |
| Blade Diameter | 185x20mm |
| 45 Degree | 45mm |
| 90 Degree | 65mm |
| Packaging | color box |
All specifications above are taken from the manufacturer product page.
The CS18568 is supplied packaged in a color box and is configured for use with standard 185×20mm blades; refer to the blade manufacturer’s guidance for blade selection and mounting.
Callout Blocks
Model
CS18568
Power
1600W input power for steady performance
Cutting capacity
65mm at 90° and 45mm at 45°
FAQ
What voltage does the CS18568 require?
The saw is specified for 220–240V~50/60Hz mains supply.
What is the input power of this model?
Input power is 1600W.
What blade size does the CS18568 use?
Blade diameter is 185×20mm.
What are the cutting depths at 90° and 45°?
Cutting depth is 65mm at 90° and 45mm at 45°.
