Description

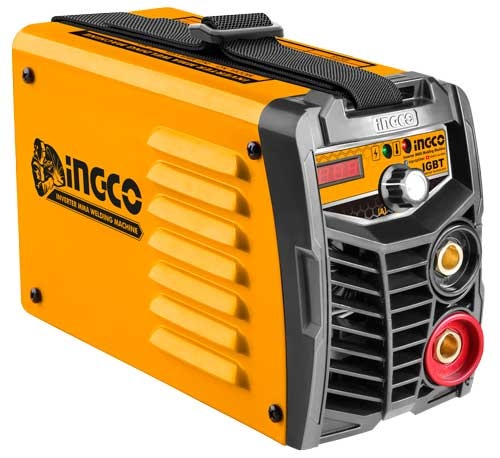

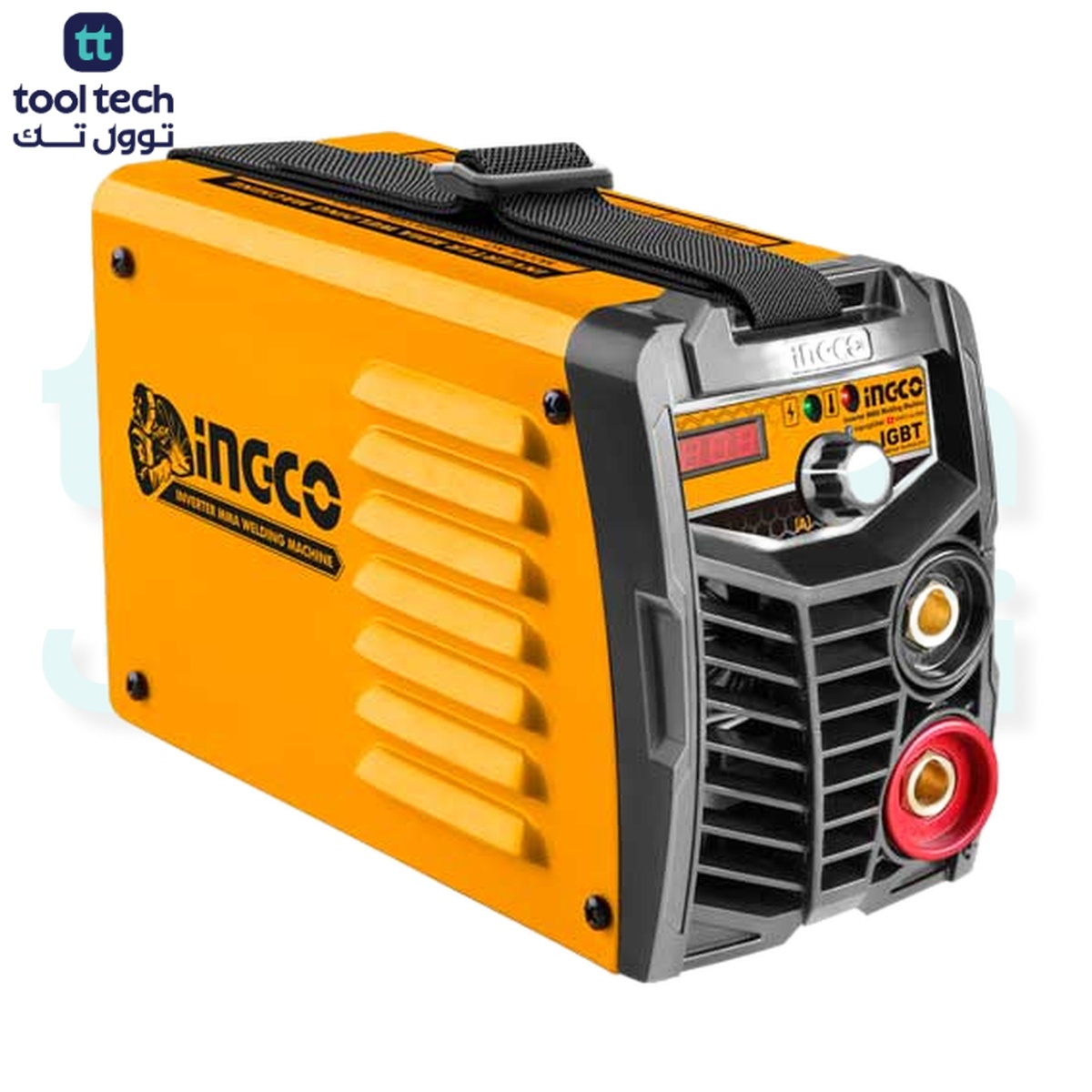

INGCO ING-MMA1805 Inverter MMA Welding Machine
The INGCO ING-MMA1805 is an inverter MMA welding machine designed for MMA/stick welding. It accepts 1~220-240V input at 50/60Hz and delivers an output current range of 10–180A with a no-load voltage of 85V. The unit supports electrodes from 1.6–4.0 mm and is specified at 180A@40% duty cycle.
Key Benefits
1) Broad welding current range
An output span of 10–180A lets you work across a variety of MMA welding requirements without changing machines.
2) Compatible electrode sizes
Supports common MMA electrode diameters of 1.6–4.0 mm for flexible stick welding options.
3) Single-phase power compatibility
Runs from standard single-phase supply of 1~220-240V, 50/60Hz, suitable where that mains is available.
4) Clearly stated duty performance
Rated at 180A@40% duty cycle so you can plan work intervals around the specified output capability.
5) Defined open-circuit voltage
A no-load voltage of 85V provides a consistent reference for arc striking and electrode handling.
Use Case Section
Typical applications
The INGCO ING-MMA1805 Inverter MMA Welding Machine is suitable for:
- MMA (stick) welding tasks
- Workshop metal repair and maintenance
- On-site welding where 220–240V single-phase power is available
- Welding with 1.6–4.0 mm MMA electrodes
- Fabrication tasks requiring up to 180A output
- Routine equipment and structural repairs
Applications reflect the machine’s MMA welding capability, supported electrode range, and electrical requirements.
Features Section
Key specifications and features
- Model: ING-MMA1805
- Product type: Inverter MMA Welding Machine
- Input voltage: 1~220-240V
- Frequency: 50/60Hz
- Output current: 10–180A
- Max. output current: 180A
- Duty cycle: 180A@40%
- No-load voltage: 85V
- Electrode diameter: 1.6–4.0 mm
What’s in the Box
Inside the package, you get:
- 1 × INGCO ING-MMA1805 Inverter MMA Welding Machine
Technical Specifications
| Specification | Details |
|---|---|
| Model | ING-MMA1805 |
| Product Type | Inverter MMA Welding Machine |
| Input Voltage(v) | 1~220-240 |
| Frequency(hz) | 50/60 |
| Output Current(a) | 10-180 |
| Duty Cycle(%) | 180A@40% |
| No-Load Voltage(v) | 85 |
| Max.output Current(a) | 180 |
| Diameter Of Electrode(mm) | 1.6-4.0 |
| Packaging | carton box |
All specifications above are taken from the manufacturer product page.
The INGCO ING-MMA1805 is supplied packaged in a carton box and is configured for single-phase 220–240V operation with an MMA electrode range of 1.6–4.0 mm and a maximum output current of 180A.
Callout Blocks
Model
ING-MMA1805
Power input
1~220-240V, 50/60Hz
Electrode range
1.6–4.0 mm
FAQ
What input voltage does this machine require?
The machine accepts 1~220-240V at 50/60Hz.
What is the welding current range?
Output current ranges from 10 to 180A, with a max output current of 180A.
Which electrode diameters are supported?
Recommended electrode diameter range is 1.6–4.0 mm.
What is the duty cycle rating?
Duty cycle is specified as 180A@40%.
What is the no-load voltage?
The no-load voltage is 85V.
