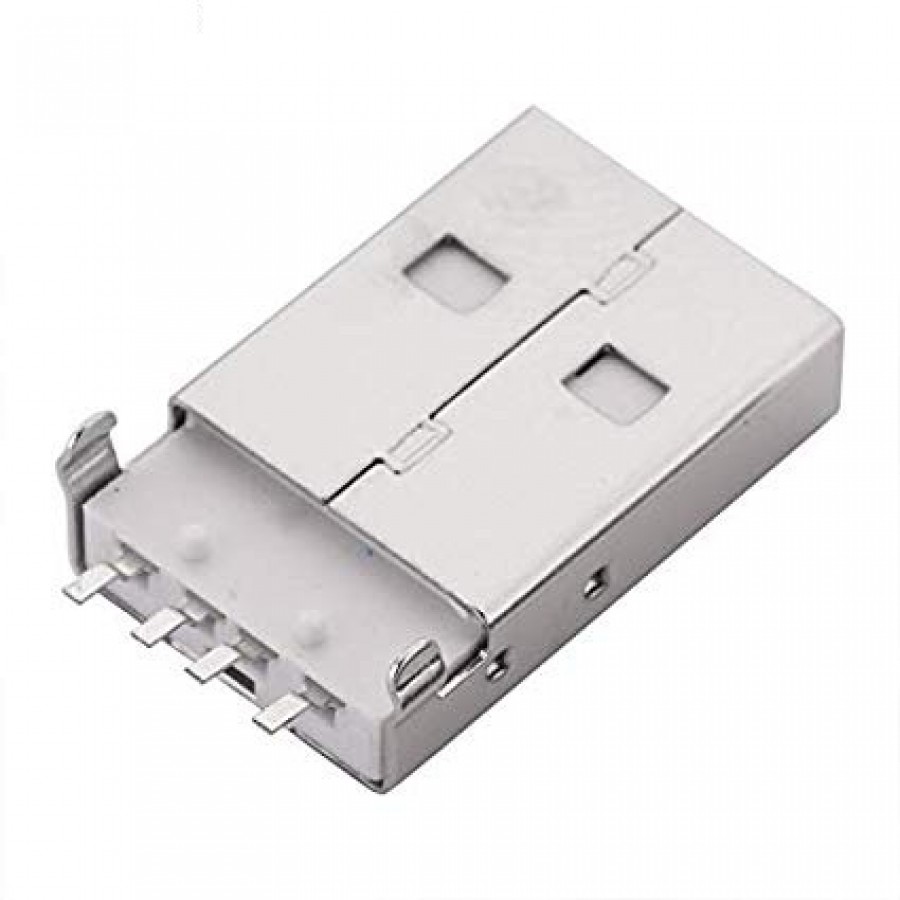

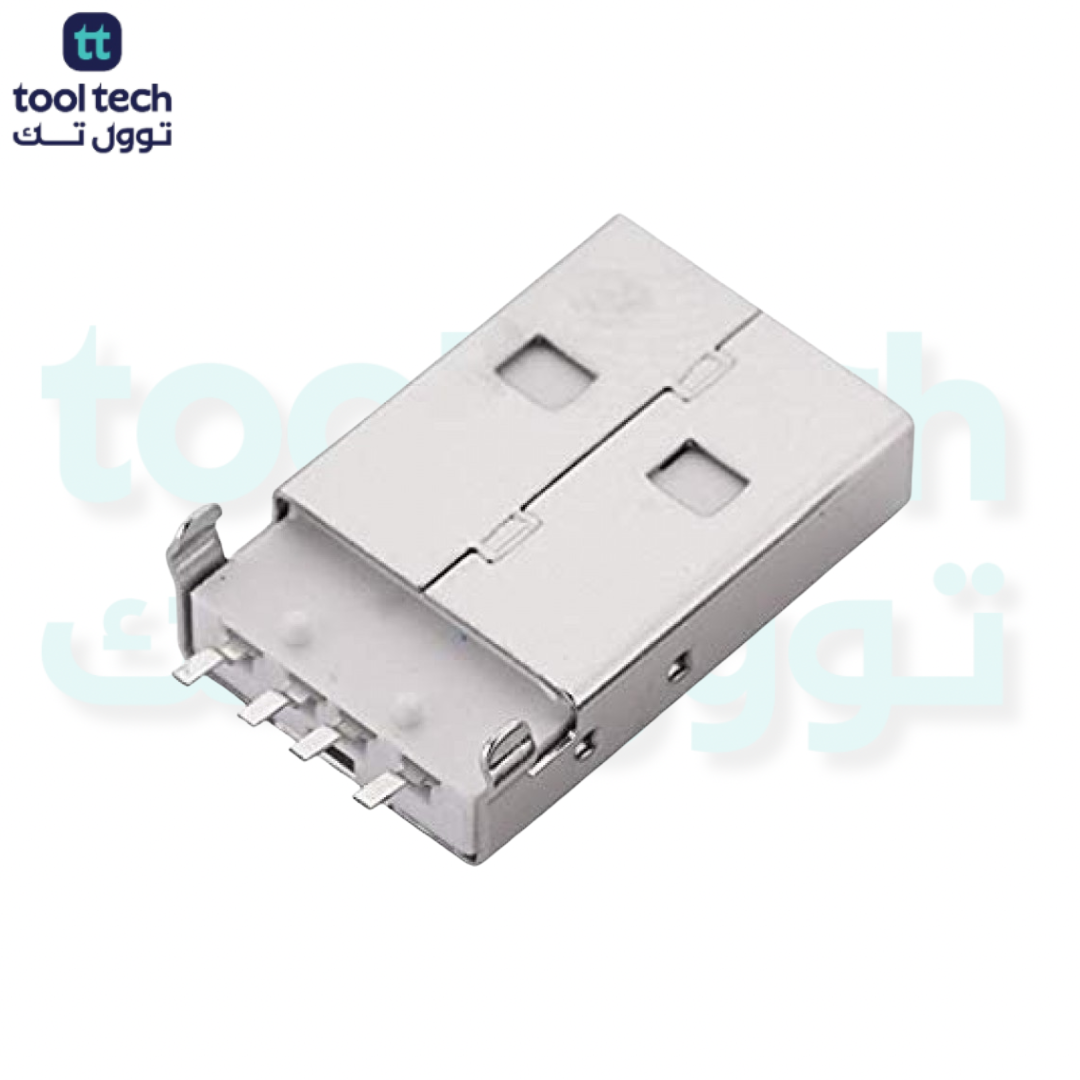

Compact Male USB Type-A SMD Connector
Product Overview
This Male USB Type-A SMD (Surface Mount Device) connector is a low-profile, board-mounted plug designed for ultra-slim hardware applications. Engineered to mount directly onto the surface of the PCB, this component eliminates the need for through-hole pins, making it ideal for double-sided PCB designs and automated, high-speed pick-and-place manufacturing.
It provides a secure, streamlined way to add direct-plug USB functionality to modern consumer electronics, compact dongles, and smart wearable charging modules.
Key Features
-
SMD/SMT Integration: Mounts completely on the board surface, optimizing PCB trace routing on the opposite layer and reducing manufacturing steps.
-
Streamlined Form Factor: Enables the production of ultra-thin devices by keeping the physical profile of the connector flush with surface-mount components.
-
Reinforced Mechanical Tabs: Equipped with robust surface ground pads that anchor the metal shield firmly to the board, absorbing the shear stress of repeated plug-in cycles.
-
High-Temperature Performance: Constructed using premium Liquid Crystal Polymer (LCP) engineering plastic to withstand high-temperature reflow soldering without warping.
Technical Specifications
| Parameter | Specification |
| Connector Type | USB Type-A Male (Plug) |
| Mounting Type | SMD / SMT (Surface Mount) |
| Orientation | Horizontal / Edge-Mount |
| Number of Pins | 4 Active Pins (VBUS, D-, D+, GND) + Shell Grounds |
| Current Rating | 1.5A |
| Voltage Rating | 30V AC/DC |
| Contact Resistance | $\le 30\text{ m}\Omega$ |
| Insulation Resistance | $\ge 1000\text{ M}\Omega$ |
| Dielectric Withstanding | 500V AC for 1 minute |
| Mating Cycles | 1,500+ insertions |
Applications
The ideal choice for modern, space-constrained hardware that plugs directly into standard USB ports:
-
Smart Dongles: Compact Wi-Fi receivers, Bluetooth LE adapters, and RF wireless mouse/keyboard receivers.
-
Portable Memory: Slimline USB flash drives and high-speed solid-state thumb drives.
-
Wearables & IoT: Dedicated magnetic charging docks, custom smart band chargers, and low-profile telemetry modules.
-
Development Equipment: Miniature USB pass-through sniffers, hardware keys, and inline voltage/current testers.
