Description
DESCRIPTION
Power Supply 36V 15A

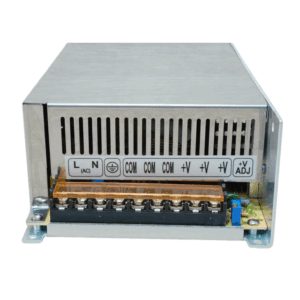

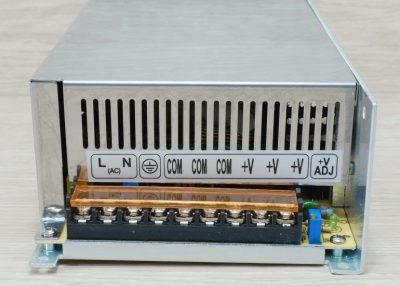

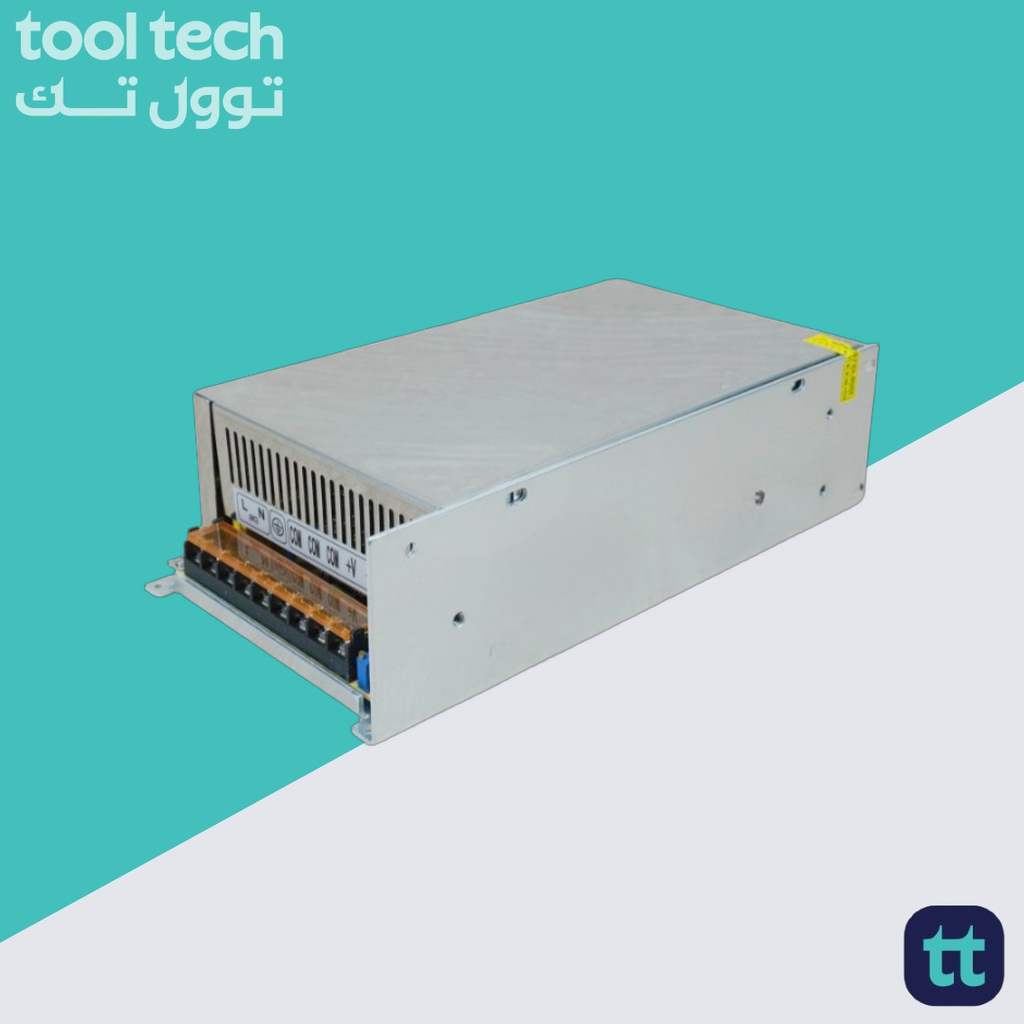

The S-540-36 is a high-performance switching power supply that delivers a stable 36V DC output at 15A, with a total power capacity of 540W. Designed for reliability and efficiency, this unit is perfect for industrial and electronic applications where consistent power is essential. It features a selectable AC input range, built-in protection mechanisms, and a cooling fan to maintain performance under heavy loads. Whether powering machinery or electronics, the S-540-36 ensures dependable operation with minimal energy waste.
Features:
- Full load burn-in test.
- It’s good quality and high performance.
- Great switching power supply for home appliances.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | S-540-36 |
| Input Voltage | 100–240VAC, 50/60Hz |
| Output Voltage | 36VDC |
| Output Current | 15A |
| Rated Power | 540W |
| Voltage Tolerance | ±1% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Ripple & Noise | <360mVp-p |
| Efficiency | ≥86% |
| Power Factor Correction (PFC) | ≥0.99 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 20%–90% RH (non-condensing) |
| Cooling Method | Forced air via built-in fan |
