DESCRIPTION

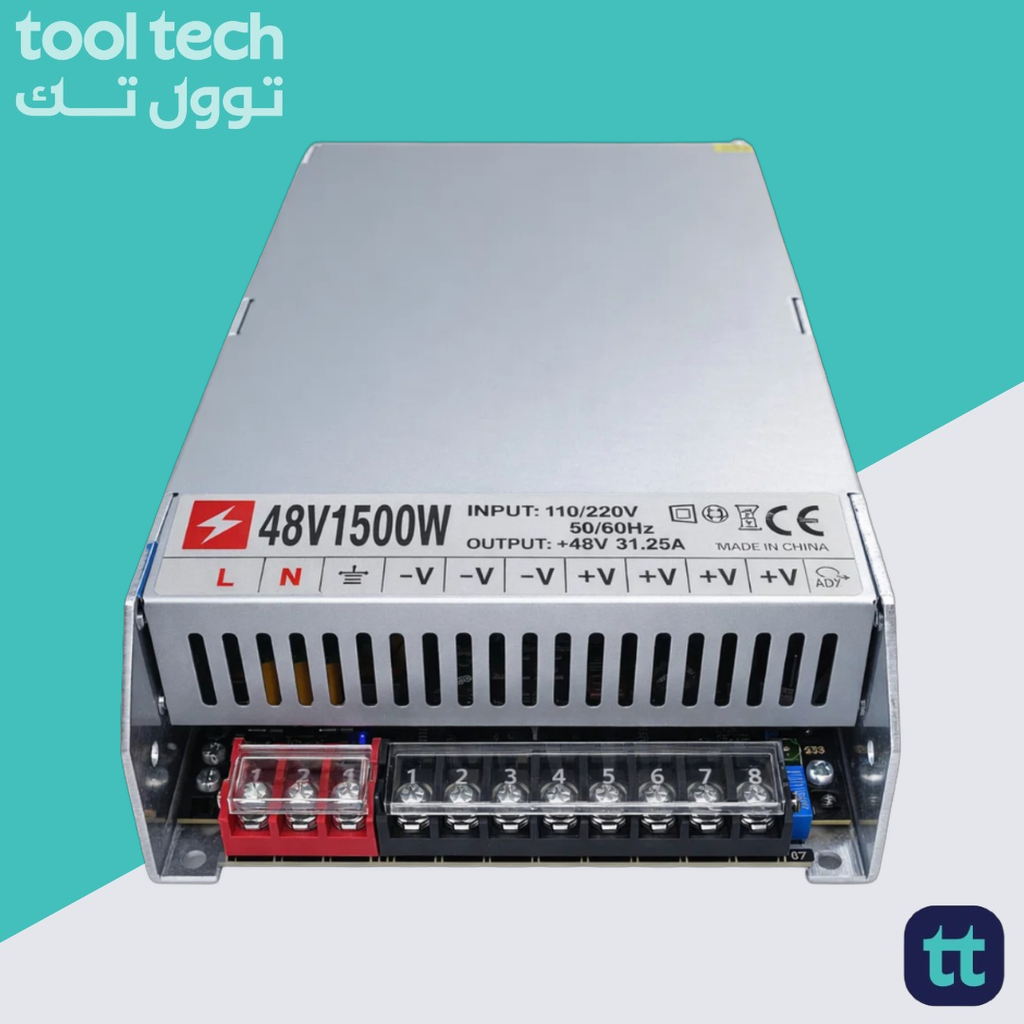

Power Supply 48V 30A
The Power Supply 48V 30A 1500W Switching (S-1500-48 Type) is a high-efficiency AC to DC converter designed for heavy-duty and industrial applications requiring stable and high-current output. Delivering a regulated 48V DC output with a maximum current of 31.25A, this unit provides up to 1500W of continuous power.
Features:
- High output power of 1500W with stable 48V DC output.
- Maximum output current up to 31.25A.
- Dual input voltage 110V/220VAC selectable via switch.
- Dual cooling fans for enhanced heat dissipation.
Specifications
| Parameter | Value |
|---|---|
| Model Type | S-1500-48 |
| Output Voltage | 48VDC |
| Output Current | 31.25A |
| Output Power | 1500W |
| Input Voltage | 110/220VAC Switch Selectable |
| Input Voltage Range | 90-264VAC |
| Input Frequency | 47-63Hz |
| Voltage Adjustment Range | ±10% |
| Efficiency | ≥85% |
| Ripple & Noise | ≤240mVp-p |
| Cooling Method | Dual Fan Cooling |
| Operating Temperature | -10°Cto+50°C |
| Dimensions (L×W×H) | 280×140×65mm |
Applications
- Telecommunications equipment and network infrastructure.
- LED lighting systems.
- Industrial automation and control systems.
- DC motor control.
- Battery charging systems.
- CCTV and security systems.
Package Include:
- 1x Power Supply 48V 30A.
