DESCRIPTION
Raspberry Pi 5 Computer Model B – 16GB RAM – Made in UK
The Raspberry Pi 5 Computer Model B with 16GB RAM represents a significant leap forward in the evolution of single-board computers. Manufactured in the UK, this latest model is engineered to deliver exceptional performance, making it suitable for a diverse array of applications, from educational tools and hobbyist projects to professional and industrial solutions.

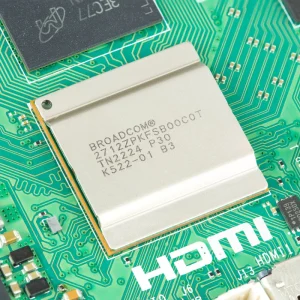

At the heart of the Raspberry Pi 5 is the Broadcom BCM2712 system-on-chip, featuring a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU. This powerful processor, equipped with cryptographic extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache, provides up to three times the performance of its predecessor, the Raspberry Pi 4. This substantial boost in processing power enables users to tackle more demanding tasks, such as high-definition video processing, complex computations, and multitasking with ease.
Features:
- Processor: Broadcom BCM2712, 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptographic extensions.
- Graphics: VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2.
- Memory: 16GB LPDDR4X-4267 SDRAM.
- Display: Dual 4Kp60 HDMI outputs with HDR support.
- Video Decoding: 4Kp60 HEVC decoder.
- Wireless Connectivity: Dual-band 802.11ac Wi-Fi, Bluetooth 5.0 / BLE.
- Wired Connectivity: Gigabit Ethernet with PoE+ support (requires separate HAT).
- USB Ports: 2 × USB 3.0, 2 × USB 2.0.

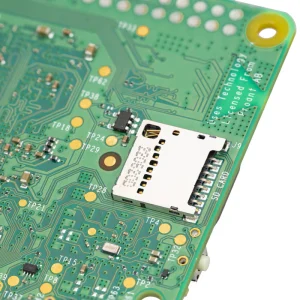

- Storage: MicroSD card slot with high-speed SDR104 mode.
- Camera/Display Interfaces: 2 × 4-lane MIPI transceivers.
- Expansion: PCIe 2.0 x1 interface (requires separate M.2 HAT or adapter).
- GPIO: Standard 40-pin header.
- Power: 5V/5A DC via USB-C, Power Delivery enabled.
- Additional Features: Real-time clock (RTC), on-board power button.
Specifications:
|
Parameter |
Value |
|---|---|
|
Processor |
Broadcom BCM2712, 2.4GHz quad-core Arm Cortex-A76 |
|
GPU |
VideoCore VII |
|
Memory |
16GB LPDDR4X-4267 |
|
Wi-Fi |
Dual-band 802.11ac |
|
Bluetooth |
5.0 / BLE |
|
Ethernet |
Gigabit, PoE+ (with HAT) |
|
USB |
2×USB3.0, 2×USB2.0 |
|
Display |
2×HDMI 4Kp60 |
|
Camera |
2×MIPI CSI |
|
Storage |
MicroSD (SDR104) |
|
PCIe |
1×PCIe 2.0 x1 |
|
Power |
5V/5A USB-C PD |
|
GPIO |
40-pin |
|
RTC |
Yes |
|
Power Button |
Yes |
Configuration:
Applications:
- Educational tool for learning programming and electronics.
- DIY projects such as robotics, home automation, and IoT devices.
- Media center for streaming and playing multimedia content.
- Retro gaming console emulation.
- Prototyping platform for hardware and software development.
- Industrial applications including automation and monitoring.
- Edge computing device for local data processing.
Package Include:
- 1x Raspberry Pi 5 Computer Model B – 16GB RAM – Made in UK
Documents:
- Datasheet
- Raspberry Pi 5 mechanical drawing
- Getting started documentation
- RP1 peripherals documentation
