Description

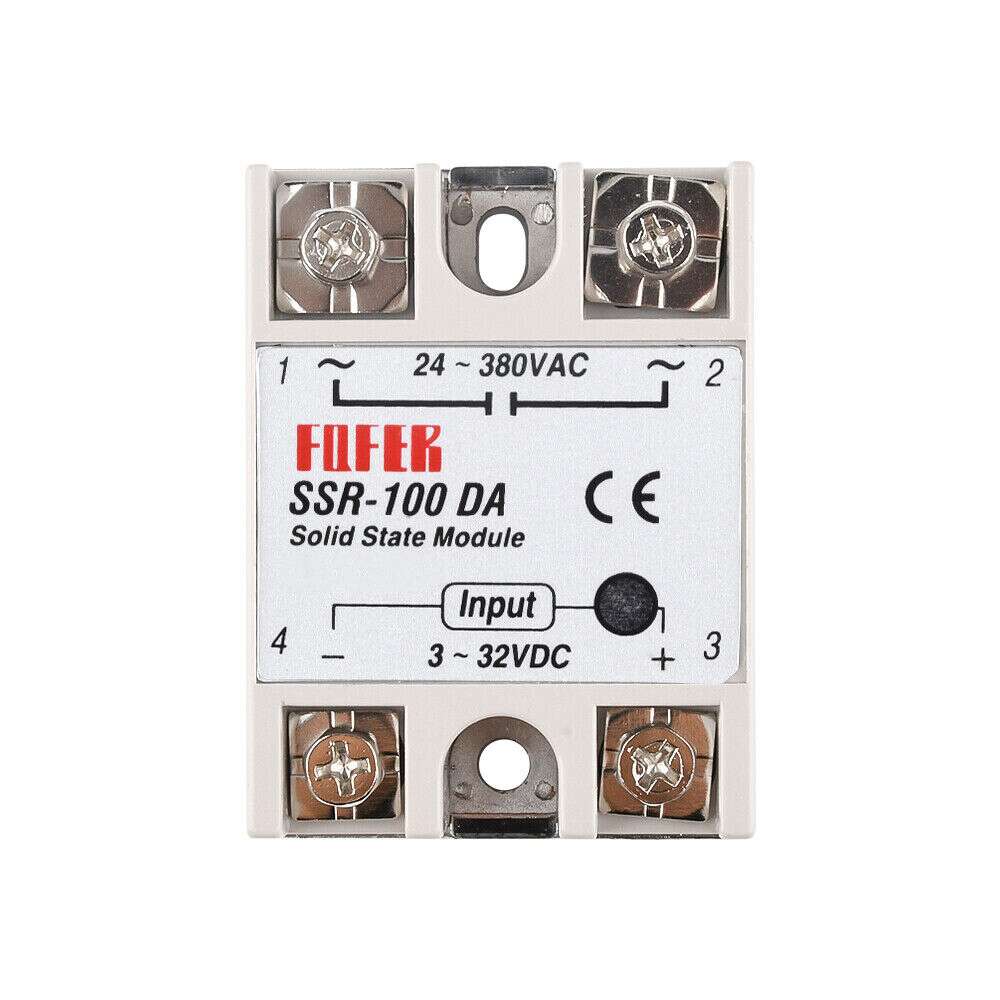

Solid State Relay SSR-100 DA 3V~32V DC to AC 24V~380V
Solid state relay SSR – 100 DA, controlled with the voltage in the range from 3 V to 32 V DC. It allows to control of devices of high power with a voltage from 24 V to 380 V AC and current up to 100 A.
Relay, because it was made in semiconductor technology, is characterized by high reliability. It provides high sensitivity and high switching speed, up to 10 ms. Thanks to the fact that the relay is of a semiconductor material, it does not have mechanical contacts which means it has silent operation. Relays of this type are in great demand in automatic control systems. To ensure long and reliable operation at extreme loads, it is recommended to use the radiators to remove the heat.
Features :
- Long service life and high reliability.
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
- Status LED.
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage (Output) | 24 V – 380 V AC |
| Control Voltage (Input) | 3 V – 32 V DC |
| Rated Current | 100 A |
| Response Time | Up to 10 ms |
| Operating Temperature | -30°C to 80°C |
| Mounting Hole Distance | 47 mm |
| Dimensions | 60 × 45 × 24 mm |
Applications:
- Industrial Heating Systems Controls heaters and ovens for precise temperature regulation.
- Motor Control Manages motors in automation and manufacturing equipment.
- Lighting Control Facilitates on/off or dimming functions in commercial and industrial lighting.
- Renewable Energy Systems Switches power in solar or wind energy setups.
- HVAC Systems Regulates components in heating, ventilation, and air conditioning units.
Dimensions:
Wiring Diagram:
Package includes :
- 1 X Solid State Relay 3V~32V DC to AC 24V~380V SSR-100 DA.
