Product Overview

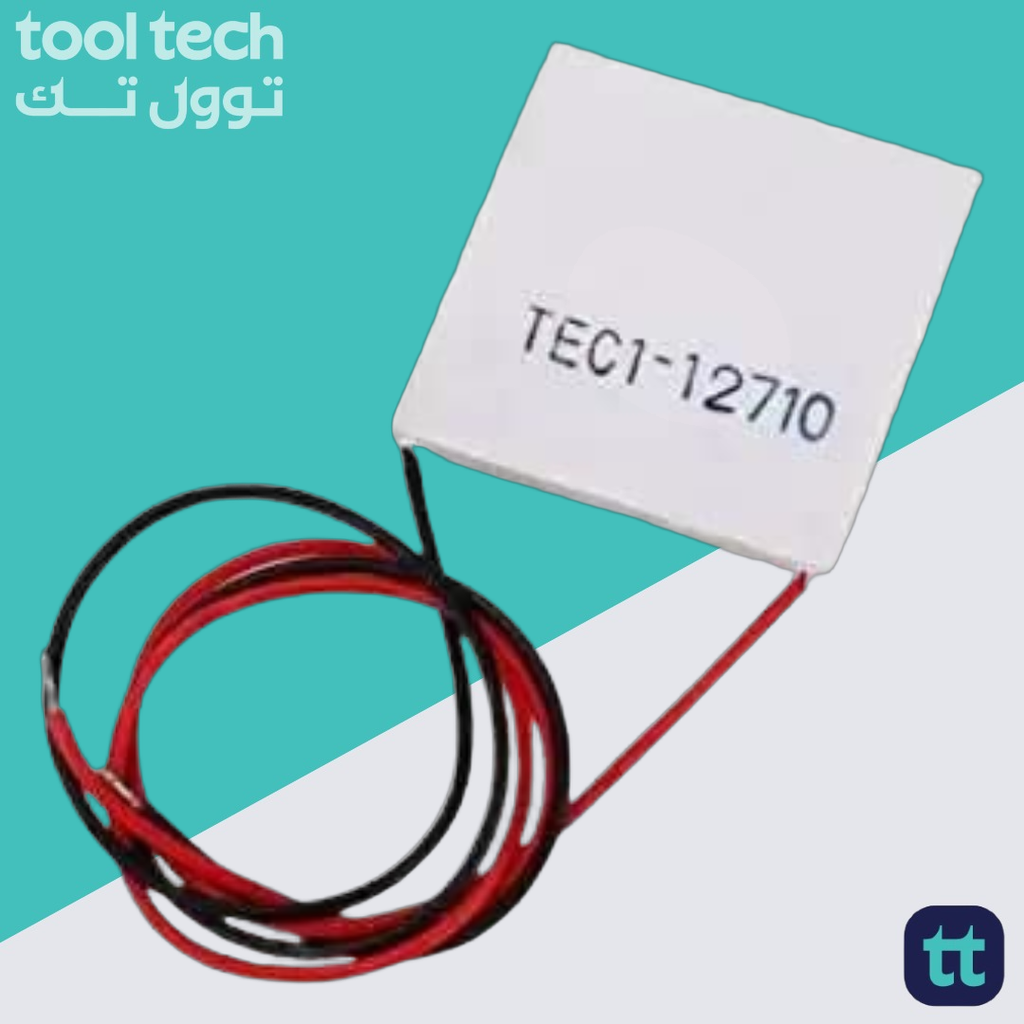

The TEC1-12710 (often designated as TES1-12710) is a high-amperage, high-capacity solid-state thermoelectric cooling module. Constructed with 127 internal semiconductor couples, it delivers heavy-duty thermal performance within the classic 40mm x 40mm (4x4cm) footprint.
Drawing a massive 10A of current at maximum load, this module is engineered for applications requiring rapid temperature drops or the pumping of significant thermal loads (up to 92W). It is a major power upgrade over standard 12706 (6A) modules.
Technical Specifications
| Parameter | Specification |
| Model | TEC1-12710 / TES1-12710 |
| Dimensions | $40\text{mm} \times 40\text{mm} \times 3.4\text{mm}$ to $3.8\text{mm}$ |
| Couples (P-N Junctions) | 127 |
| Max Current ($I_{max}$) | 10.0A |
| Max Voltage ($V_{max}$) | ~15.4V DC (Typically run at 12V DC for balanced efficiency) |
| Max Cooling Power ($Q_{max}$) | ~85W to 92W ($\Delta T = 0^\circ\text{C}$) |
| Max Temperature Difference ($\Delta T_{max}$) | $\ge 65^\circ\text{C}$ to $68^\circ\text{C}$ |
| Internal Resistance | ~1.2Ω to 1.5Ω |
| Sealing / Protection | Perimeter sealed with silicone rubber to prevent condensation moisture |
Key Features
-
High-Density Heat Pumping: Operating at 10A allows this module to pull heat away at roughly double the speed and capacity of mainstream entry-level Peltier chips.
-
Standardized 4x4cm Size: Seamlessly drops into the standard mounting brackets, CPU coolers, water blocks, and clamping mechanisms designed for the 40mm ecosystem.
-
Dual-Action Thermal Cycling: Instantly shifts from freezing to heating by swapping the DC power polarity, allowing for strict closed-loop temperature control.
-
Vibration-Free Operation: Ideal for sensitive mechanical or optical setups because it cools purely through solid-state physics, without moving parts or fluids.
Common Applications
-
High-Performance Liquid Chillers: Perfect for custom PC water cooling loops, high-end overclocking setups, or specialized laser/aquarium water chillers.
-
Industrial & Lab Equipment: Used in medical analysis devices, PCR thermal cyclers, and military-grade electronics cooling where rapid thermal adjustments are vital.
-
Deep Freezing DIY Units: Excellent for specialized DIY projects like portable medical coolers or ultra-cold portable storage boxes requiring lower sub-zero temperatures than a standard 12706 can provide.
⚠️ High-Power Critical Usage Warning
Because this module draws 10 Amps, it requires careful power and thermal management:
-
Massive Hot-Side Heat Dissipation is Mandatory: At 10A, the hot side will generate a violent amount of heat instantly. Standard passive aluminum heatsinks will fail. You must use a high-end CPU tower cooler with multiple copper heat pipes and a high-RPM fan, or—ideally—a liquid water cooling block.
-
Instant Burnout Risk: Powering this module “dry” (without a heavily cooled heatsink and thermal paste) for even 1 second will cause thermal runaway, melting the internal bismuth telluride connections and permanently killing the chip.
-
Power Supply Requirements: Ensure your 12V DC power supply can continuously handle a 10A load (120W+ dedicated to just this module) without dropping voltage. Standard wall-wart adapters will overload and trip.
