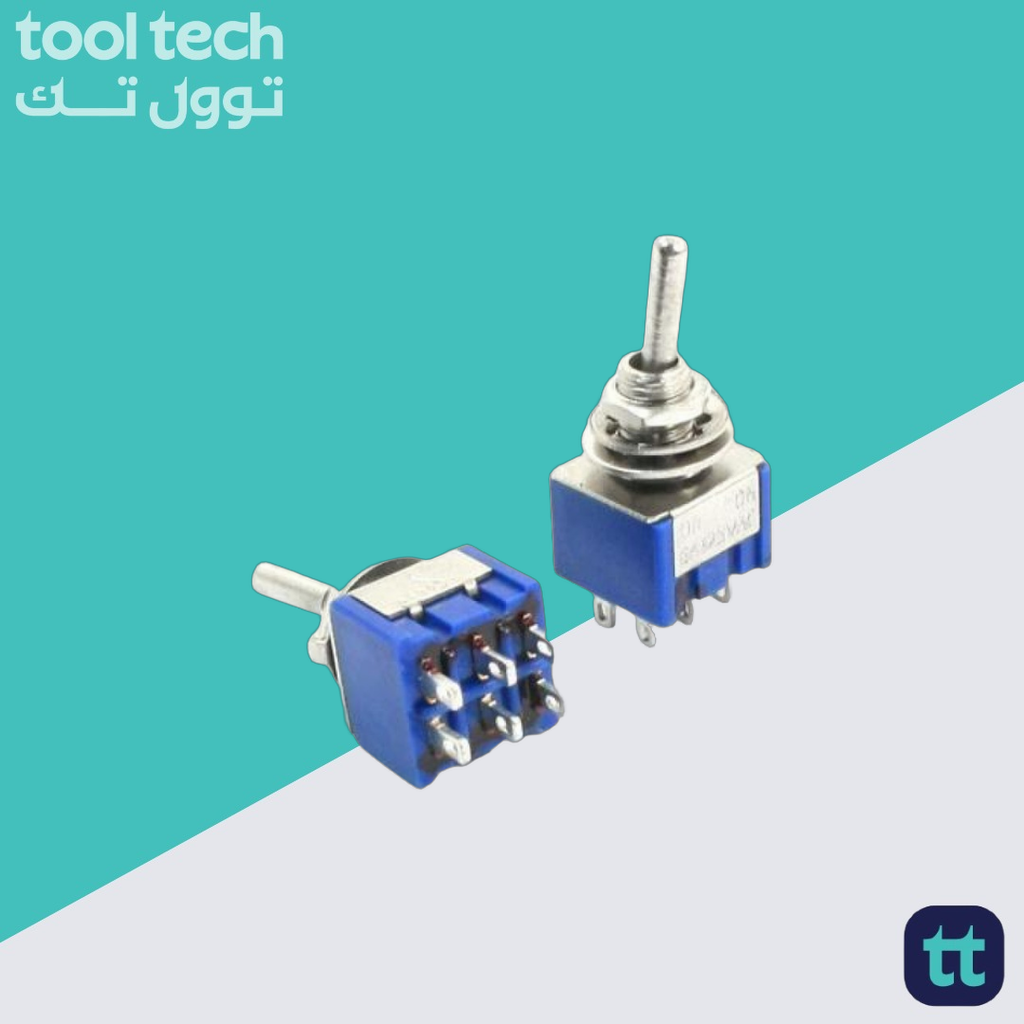

6-Pin Toggle Switch (DPDT, ON-ON) (6A, 125VAC) (202) (SW-16)
The SW-16 (202) Toggle Switch is a reliable, high-utility DPDT (Double Pole Double Throw) switch featuring an “ON-ON” latching action. Designed for signal-level and moderate power applications, this switch allows for the simultaneous control of two independent circuits. Its versatile 6-pin configuration makes it a staple for custom electronic projects, control panels, and automation tasks where switching between two active states is required.
Key Features
-
DPDT (ON-ON) Logic: Provides continuous switching between two active circuits (or two different modes/sources) without an “OFF” position in the center.
-
Compact Professional Design: The standard toggle form factor ensures compatibility with a wide range of enclosure styles and control layouts.
-
Reliable Contact Performance: Rated for 6A at 125VAC, offering consistent, long-life performance for hobbyist projects, DIY instrumentation, and prototyping.
-
Easy Panel Integration: Features a rugged, threaded bushing that ensures a tight, professional-grade mount on any control console or chassis.
Technical Specifications
| Feature | Specification |
| Model | SW-16 (202) |
| Switch Logic | DPDT (Double Pole Double Throw) |
| Action | ON-ON (Latching) |
| Rating | 6A @ 125VAC / 3A @ 250VAC |
| Terminals | 6 Pins |
| Mounting | Panel Mount (Threaded Bushing) |
Catalog Strategy
-
Professional Imagery: Adhere to your standard: pure white background, sharp focus, no retail packaging, no labels, and no text. Ensure the 6-pin terminal array is clearly captured, as your professional clients need to confirm the DPDT pin orientation for their wiring harnesses.
-
SEO & Visibility: Optimize your catalog listings with technical keywords such as “SW-16 toggle switch,” “6-pin DPDT switch,” “ON-ON toggle switch 6A,” and “Double pole double throw panel switch.”
-
Systematic Organization: Categorize this under “DPDT Toggle Switches” in your WordPress catalog. Distinguishing this clearly from your “ON-OFF-ON” (center-off) series is vital to ensure your B2B customers select the correct logic type for their specific circuit-routing needs.
