Name: UNI-T UT202+ Digital Clamp Meter
SKU: UT202
Availability: InStock

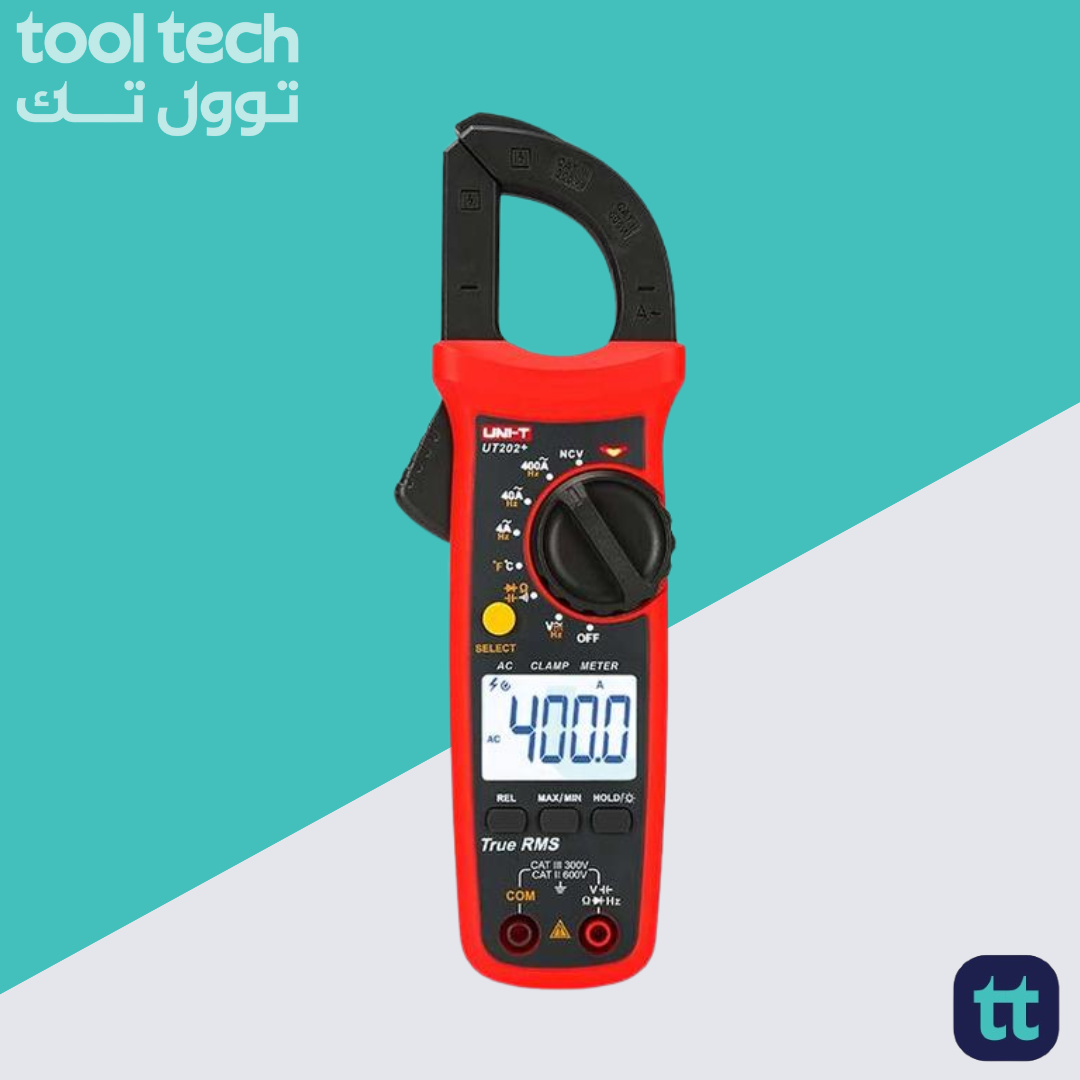

UNI-T UT202+ Digital Clamp Meter

1,175 EGP

UNI-T UT202+ Digital Clamp Meter with true RMS, auto-ranging, NCV detection, and a 4000-count LCD for accurate AC/DC voltage, current, resistance, and more.

Description

The UNI-T UT202+ Digital Clamp Meter is a versatile and reliable tool designed for both professionals and DIY enthusiasts, offering accurate measurements of AC and DC current, voltage, resistance, and continuity. Its compact design features a user-friendly interface with a clear LCD display, making it easy to read measurements in various lighting conditions. The clamp meter is equipped with a durable construction that ensures longevity, while its lightweight design allows for convenient portability. Ideal for electrical troubleshooting and maintenance tasks, the UNI-T UT202+ combines functionality with ease of use, making it an essential addition to any toolkit.

UNI-T UT202+ Digital Clamp Meter

UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.

Features:

True RMS
LCD backlight
Large screen and display digits

Specifications:

Specifications	Range	UT202+
AC current (A)	400A	±(2%+10)
AC current frequency (Hz)	50Hz~100Hz	±(1%+5)
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency(Hz)	10Hz~10kHz	±(1%+5)
DC voltage (A)	600V	±(0.5%+2)
Resistance (Ω)	40MΩ	±(0.8%+2)
Capacitance (F)	4mF	±(4%+5)
Temperature (℃)	-40℃~1000℃	±(1.5%+5)
Features
Display count		4000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Continuity test		√
Diode		√
MAX/MIN		√
Relative mode		√
Data hold		√
Low battery indication		√
Auto power off		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product color	Red and grey
Product net weight	UT202+：248g
Product size	215mm x 63mm x 36mm

Applications:

AC/DC Voltage Measurement.
AC/DC Current Measurement.
Resistance Testing.
Capacitance Measurement.
Frequency Analysis.
Temperature Monitoring.
Non-contact Voltage Detection.
HVAC System Diagnostics.
Electrical Maintenance and Troubleshooting.

Package Contents:

1x UNI-T UT202+ Digital Clamp Meter
1x Test Leads
1x Temperature Probe
1x User Manual
1x Carrying Case

Documents:

Datasheet
User Manual
