Name: UNI-T UTi260B Heavy Duty Thermal Camera
SKU: UTI260B
Availability: InStock

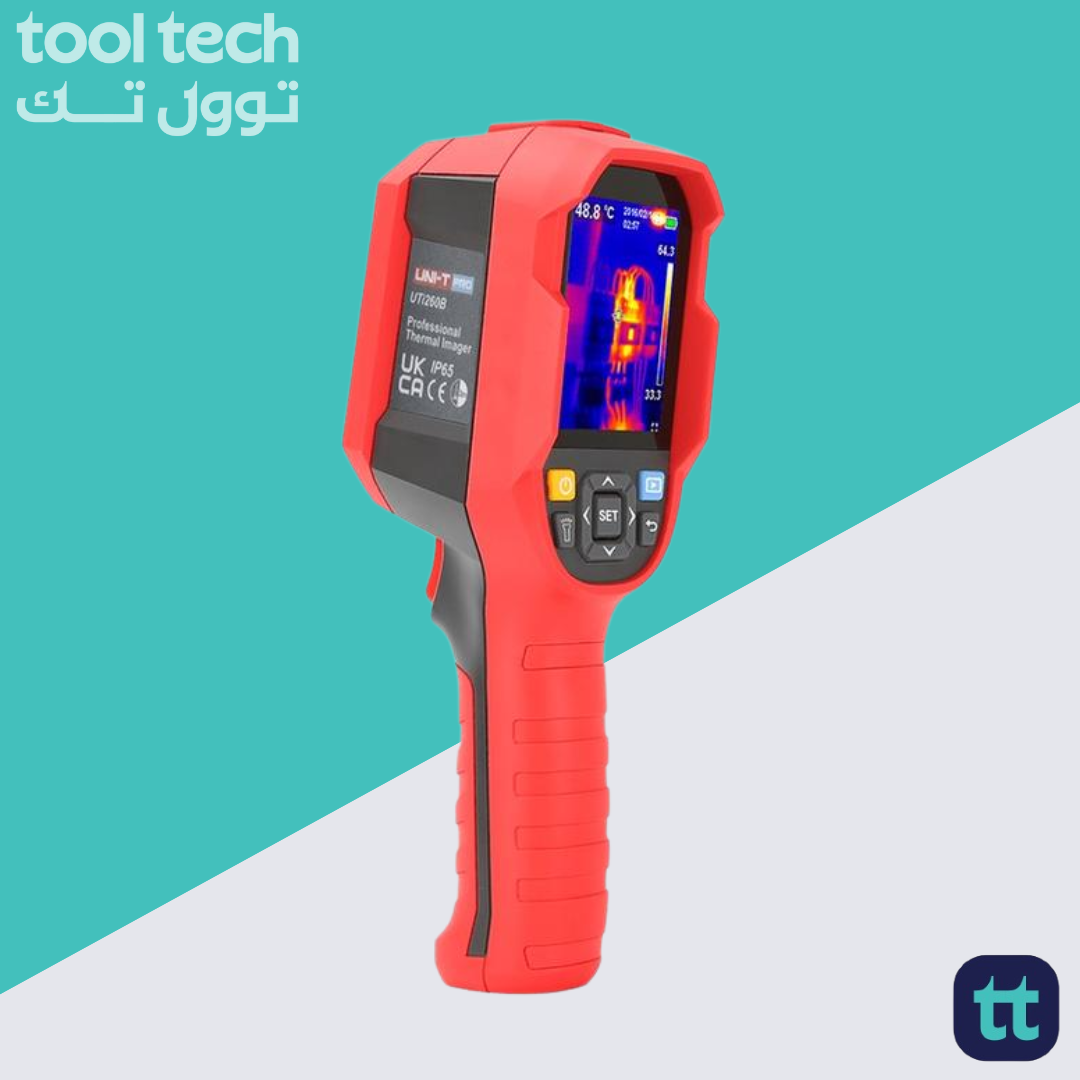

UNI-T UTi260B Heavy Duty Thermal Camera

17,450 EGP

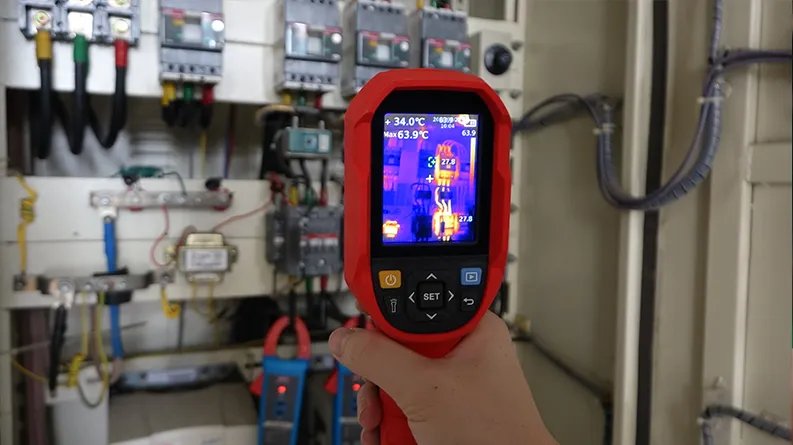

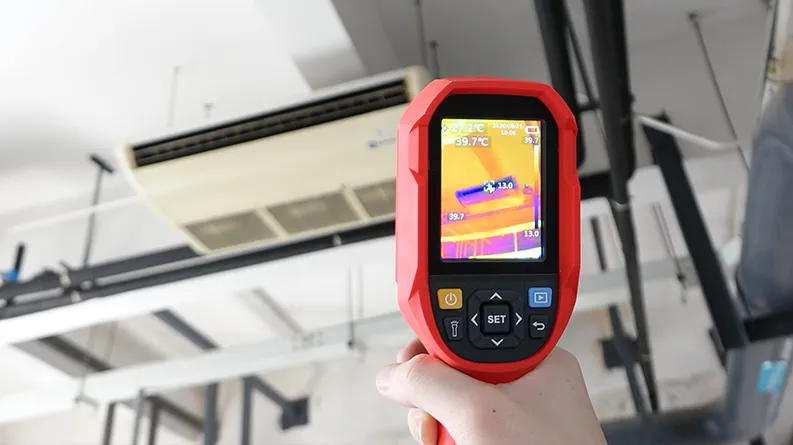

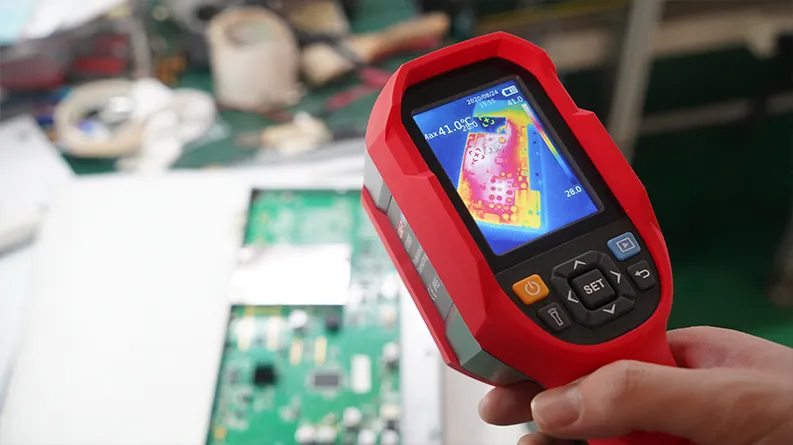

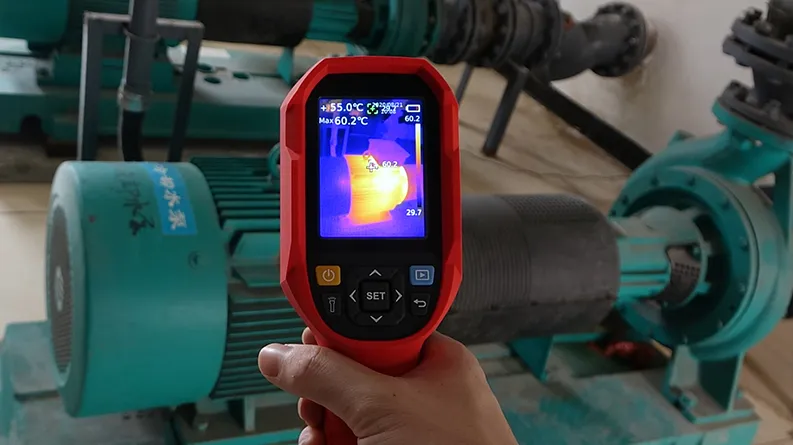

The UNI-T UTi260B is a high-resolution handheld thermal imaging camera designed for precise temperature measurement and professional inspections. It delivers sharp infrared images to quickly detect overheating components, electrical faults, mechanical issues, and insulation problems. With fast response, reliable accuracy, and user-friendly operation, the UTi260B thermal camera is ideal for industrial maintenance, electrical troubleshooting, building inspection, and preventive diagnostics.

Description

The UNI-T UTi260B Heavy Duty Thermal Camera is designed for professionals seeking reliable thermal imaging solutions in demanding environments. With its robust construction, this camera offers durability while providing clear and accurate temperature readings across a variety of applications, from electrical inspections to building diagnostics. The intuitive interface ensures ease of use, allowing users to quickly capture and analyze thermal images. Equipped with advanced features, the UTi260B enables effective monitoring and troubleshooting, making it an essential tool for technicians and engineers alike.

UNI-T UTi260B Heavy Duty Thermal Camera

UTi260B is a featured product of UNI-T heavy-duty series thermal cameras. It is cost-effective and with a wide temperature range: -20℃~550℃. It has a higher IR resolution: 256×192 pixels than other models and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture-in-picture. It is also user-friendly and rugged enough to pass IP65 and 2m drop test.

Features:

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modes: Thermal, Visual image, Fusion, PIP
Digital camera resolution: 640×480
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery
1/4”Tripod Mounting Hole
IP65
2m drop proof

Specifications:

Technical Data
IR resolution (Pixels)	256×192
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	56°×42°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes	Thermal, Visual image, Fusion, PIP
On-screen analyzer	3 Points
Digital camera resolution	640×480
Hi/Lo temperature alarm	Icon, LED flashlight
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥ 6 hours
USB	Type-C
IP rating	IP65
Drop-proof	2m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC, RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm

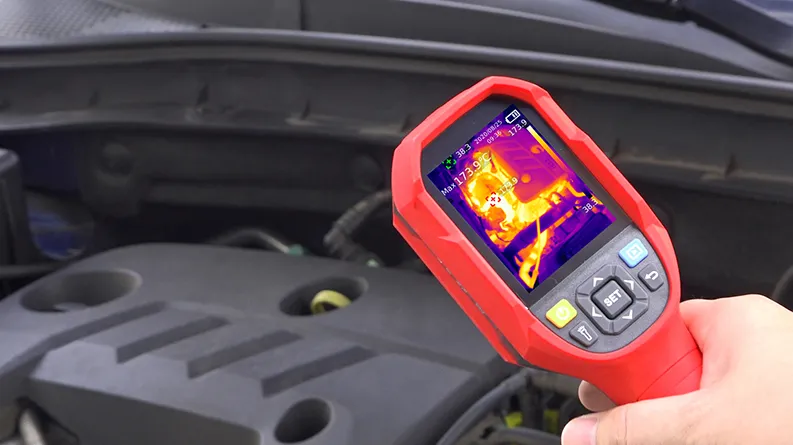

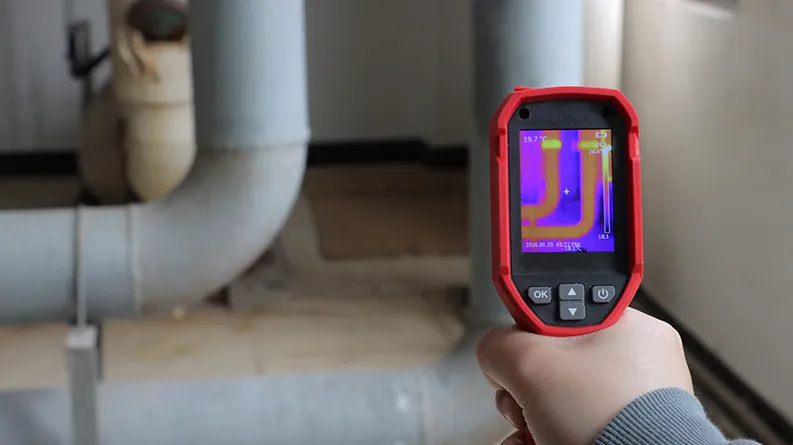

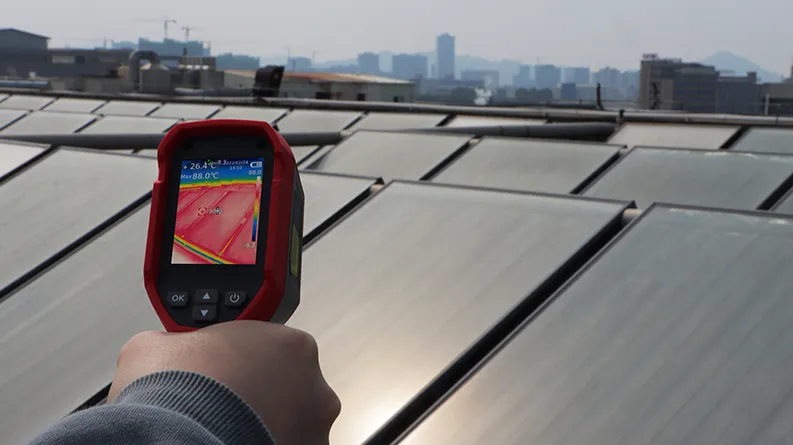

Applications :
