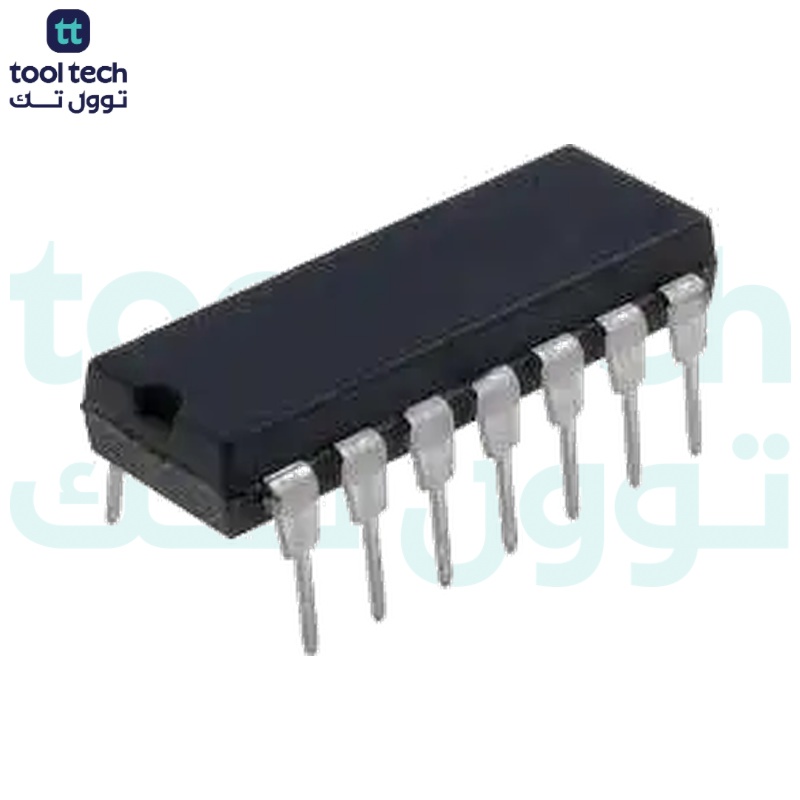

4007 IC Dual Complementary Pair and Inverter- Orignal

Description

Technical Specifications

Physical

Case/Package

PDIP

Mount

Through Hole

Number of Pins

14

Technical

High Level Output Current

-2.4 mA

Logic Function

Inverter

Low Level Output Current

2.4 mA

Max Operating Temperature

125 °C

Max Power Dissipation

200 mW

Max Supply Voltage

20 V

Min Operating Temperature

-40 °C

Min Supply Voltage

3 V

Number of Bits

3

Number of Channels

3

Number of Circuits

2

Number of Elements

1

Number of Gates

1

Number of Input Lines

3

Number of Inputs

3

Number of Output Lines

3

Number of Outputs

3

Operating Supply Voltage

18 V

Output Current

6.8 mA

Polarity

Inverting

Propagation Delay

110 ns

Quiescent Current

5 µA

Turn-On Delay Time

110 ns

Datasheet
