Description

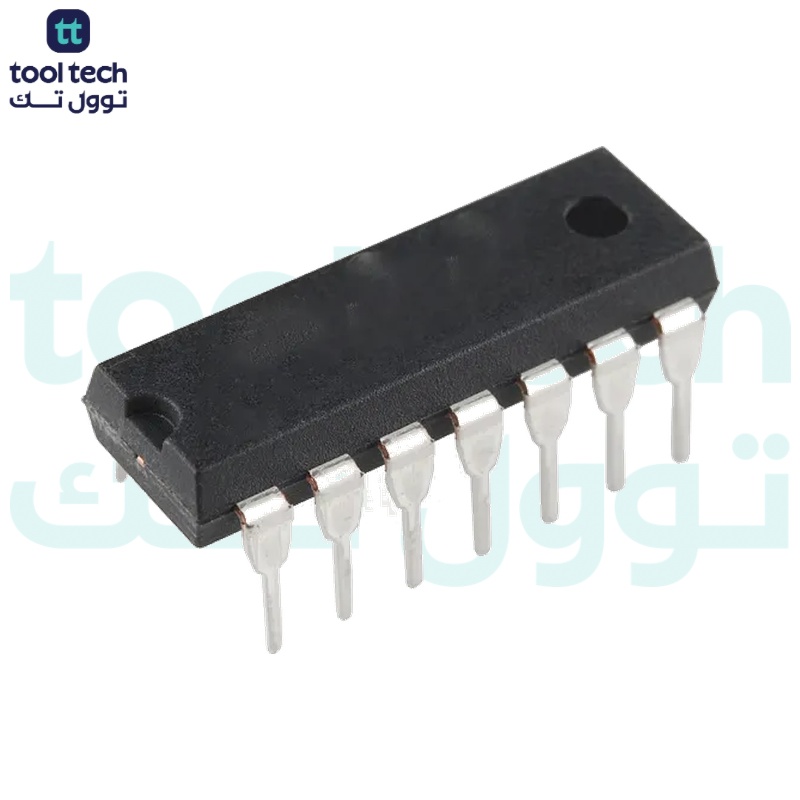

4075 IC Triple 3-Input
OR Gate
DIP-14
The 4075 IC Triple 3-Input OR Gate DIP-14 is a CMOS logic device containing three independent 3-input OR gates. Each gate performs the logical OR function, outputting HIGH when any one or more of its inputs are HIGH. Designed using advanced CMOS technology, the IC ensures low power consumption and high noise immunity. It operates over a wide voltage range, making it compatible with both TTL and CMOS logic systems. The 4075 IC is housed in a standard 14-pin dual in-line package (DIP), making it easy to use on breadboards and through-hole PCBs for digital logic design, signal processing, and control circuits.
A 3-input OR gate works just like a normal OR gate. Its output becomes HIGH if any of the inputs are HIGH. Otherwise, its output is LOW.
Check the truth table below to see the result for any combination of inputs.
3-input OR gate symbol
Input A
Input B
Input C
Output Q
0
0
0
0
0
0
1
1
0
1
0
1
0
1
1
1
1
0
0
1
1
0
1
1
1
1
0
1
1
1
1
1
Truth Table for the 3-input OR gate
Features
Three independent 3-input OR gates in one package.
Wide supply voltage range: 3V to 15V.
High noise immunity and low power consumption.
Compatible with both TTL and CMOS logic levels.
Standard 14-pin dual in-line (DIP-14) package.
Propagation delay typically low for fast switching.
Fully static operation for stable performance.
Input and output fully buffered for reliable logic operation.
Ideal for digital logic, signal control, and timing applications.
Pinout Configuration
Pin No.
Symbol
Description
1
A₂
Input A for OR Gate 2
2
B₂
Input B for OR Gate 2
3
A₁
Input A for OR Gate 1
4
B₁
Input B for OR Gate 1
5
C₁
Input C for OR Gate 1
6
Q₁
Output of OR Gate 1
7
GND
Ground (0V)
8
C₂
Input C for OR Gate 2
9
Q₂
Output of OR Gate 2
10
Q₃
Output of OR Gate 3
11
C₃
Input C for OR Gate 3
12
B₃
Input B for OR Gate 3
13
A₃
Input A for OR Gate 3
14
VDD
Supply Voltage (+3V to +15V)
Specifications
Product Attribute
Attribute Value
Product Category
Logic Gates
Product
Single-Function Gate
Logic Function
OR
Number of Gates
3 Gate
Number of Input Lines
9 Input
Number of Output Lines
3 Output
High Level Output Current
– 6.8 mA
Low Level Output Current
6.8 mA
Propagation Delay Time
60 nsec
Supply Voltage – Max
18 V
Supply Voltage – Min
3 V
Minimum Operating Temperature
– 55 C
Maximum Operating Temperature
+ 125 C
Mounting Style
Through Hole
Package/Case
PDIP-14
Packaging
Tube
Function:
Triple 3-Input.
Input Type
CMOS
Logic Type
3-Input OR
Number of Bits
3 bit
Operating Supply Current
15 µA
Operating Supply Voltage
10 V
Operating Temperature Range
– 55 C to + 125 C
Output Type
CMOS
Product Type
Logic Gates
Quiescent Current
20 µA
Applications
Digital logic and combinational circuit design.
Signal processing and control systems.
Data routing and logic level decoding.
Timing and sequencing operations.
Industrial automation and control logic.
Embedded and microcontroller-based projects.
Educational and laboratory experiments in digital electronics.
Package Contents
1 x
4075 IC Triple 3-Input OR Gate DIP-14
Datasheet
4075
