Description

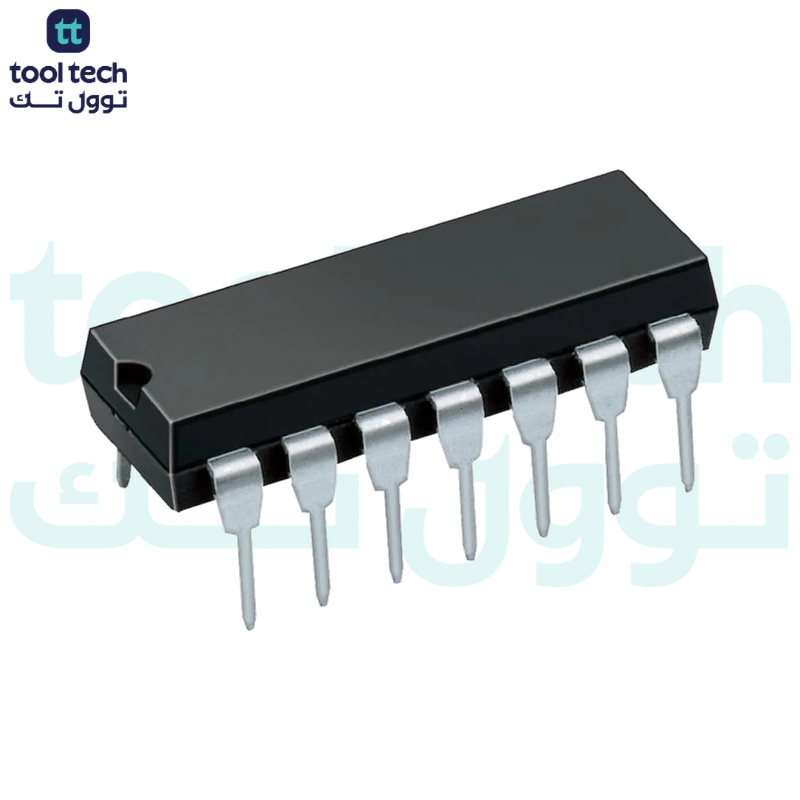

HD7422 DIP-14 4-input dual
NAND gate
IC
The HD74LS22 is a high-performance integrated circuit featuring two independent 4-input positive NAND gates. Designed with Open Collector Outputs, this IC allows for flexible output configurations, such as wired-AND logic or interfacing with different voltage levels when used with external pull-up resistors.
✅Features
Dual-Gate Design
Open Collector Outputs
Low Power Schottky (LS)
Standard DIP-14 Package
📜📚Specifications
💻Applications
Digital logic system design.
Wired-AND logic configurations.
Voltage level shifting and bus-interfacing.
Industrial control systems and general electronics prototyping.
🎁Package Content
1 x HD7422 DIP-14 4-input dual NAND gate IC
📖DataSheet
HD74LS22
