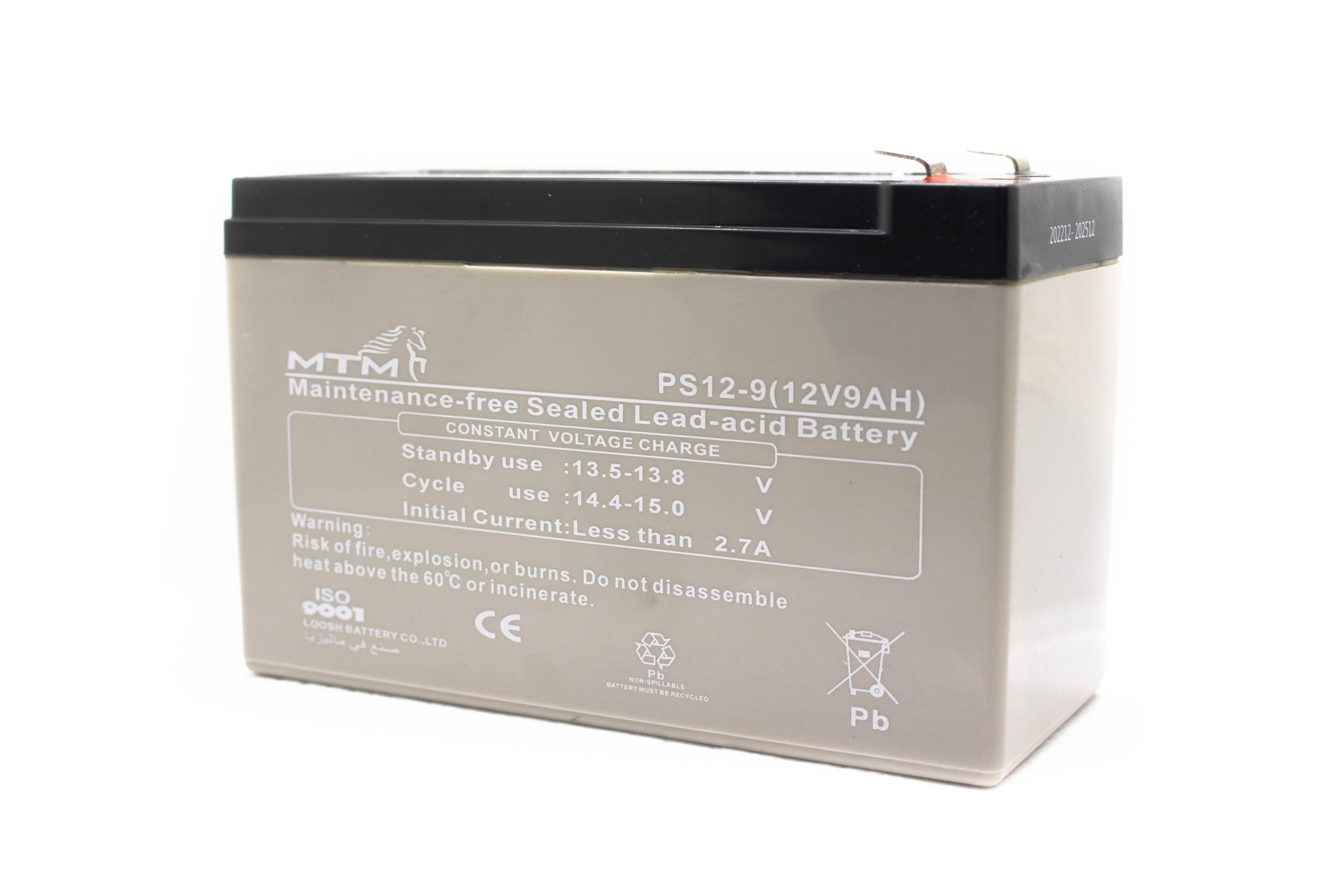

battery 12v-9A Malaysian

Description

The 12V 9Ah battery is a common Sealed Lead-Acid (SLA) unit often used as a direct, higher-capacity upgrade for devices that originally used 7Ah or 7.2Ah batteries, as they frequently share the exact same physical footprint.

Technical Specifications

• Nominal Voltage: 12V

• Nominal Capacity: 9Ah (at a 20-hour rate)

• Technology: VRLA / AGM (Absorbent Glass Mat)

• Dimensions: Standardized at approximately 151mm (L) x 65mm (W) x 94mm (H) (Height up to 100mm including terminals).

• Terminal Type: Typically F2 (6.35mm / 0.250″) spade terminals, though some versions use the smaller F1 (4.75mm).

• Weight: Approximately 2.3kg – 2.8kg.

Key Features

• Maintenance-Free: Sealed construction eliminates the need for water or electrolyte maintenance.

• High Energy Density: By utilizing advanced plate manufacturing, it provides ~25% more runtime than a standard 7Ah battery while maintaining the same physical size.

• Versatile: Can be mounted in any orientation (except upside down).

• Reliability: Engineered for a stable discharge curve, making it excellent for sensitive UPS and security electronics.

Common Applications

• UPS Systems: A frequent upgrade for mid-range Uninterruptible Power Supplies to extend backup duration.

• Alarm & Security: Used in central control panels, motion detectors, and sirens requiring longer standby times.

• Emergency Lighting: Powering exit signs and emergency flood systems.

• Telecommunications: Backup for small-scale network equipment and routers.

• Medical/Industrial: Powering portable diagnostic monitors and testing equipment.

Important Considerations for Replacement

• Capacity Upgrade: If your device currently uses a 7Ah or 7.2Ah battery, you can usually replace it with a 9Ah battery to gain about 25% more runtime, provided the physical dimensions and voltage are identical.

• Terminal Compatibility: Before purchasing, check if your current device uses F1 (4.75mm) or F2 (6.35mm) terminals. While the battery might fit the slot, the connectors may be different widths.

• Charging: Because the capacity is higher (9Ah vs 7Ah), a charger will take slightly longer to reach a full charge, but it is fully compatible with standard 12V AGM/SLA charging circuits.

• Manufacturing: Batteries of this specification manufactured in Malaysia are common in the regional market and generally adhere to international IEC/JIS standards.
