DB9 Plastic Cover

Description

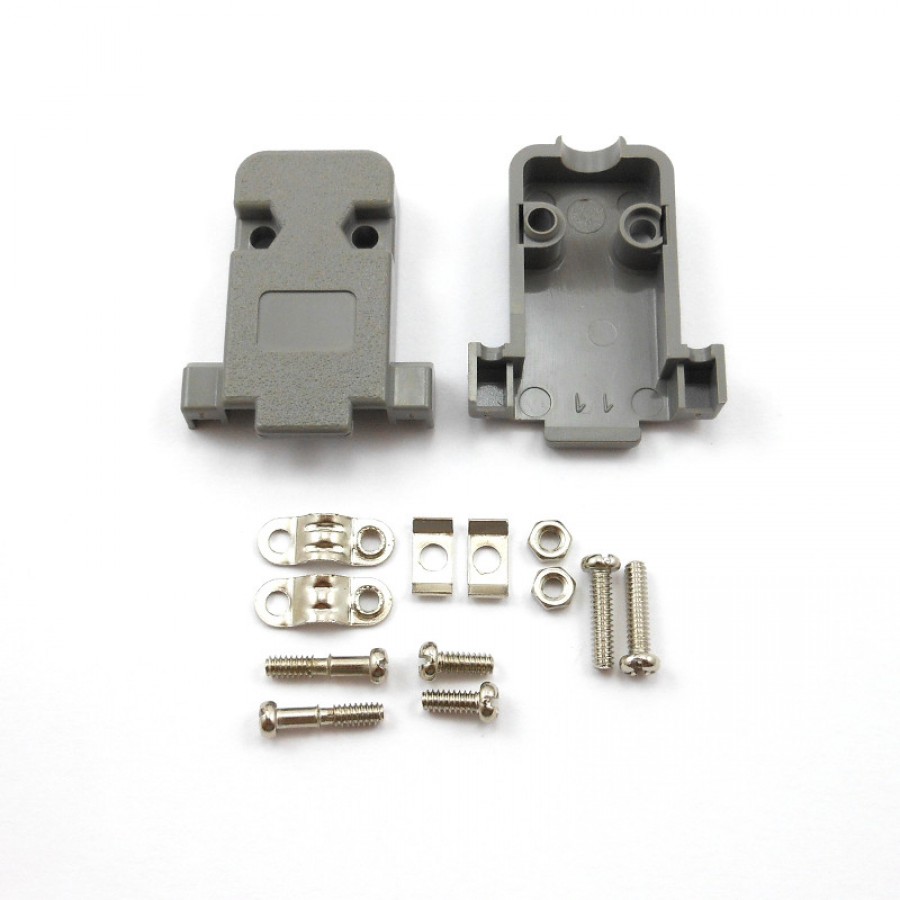

DB9 Plastic D-Sub Connector Cover (Hood / Shell)

Product Overview

The DB9 Plastic Cover (commonly known as a D-Sub hood or shell) is a rugged, protective enclosure engineered to house, insulate, and provide strain relief for standard 9-pin D-Sub connectors. Molded from high-impact, flame-retardant ABS plastic, this two-piece split-shell cover wraps securely around internal wiring terminations, shielding sensitive solder cups or crimps from mechanical pulling, dust infiltration, and accidental short-circuits.

Equipped with an adjustable internal strain-relief clamp and matching long thumbscrews, it provides a stable, toolless locking interface for custom serial communication lines and diagnostic cables.

Key Features

• High-Impact ABS Shell: Provides lightweight, resilient structural protection that shields delicate internal wire points from crushing, impacts, and daily environmental wear.

• Adjustable Cable Strain Relief: Features an internal compression saddle clamp that firmly grips the incoming cable jacket, redirecting physical strain away from individual solder pins or crimps.

• Ergonomic Long Thumbscrews: Outfitted with extended, knurled thumbscrews with standard UNC 4-40 threading, permitting effortless hand-tightening and removal from port panels without requiring tools.

• Modular Split-Body Design: The symmetrical two-piece construction mounts cleanly over pre-wired male or female DB9 connectors with provided assembly hardware, simplifying field installations and diagnostic checks.

Technical Specifications

Applications

The industry standard for manufacturing and protecting essential low-pin data communication links:

• Serial RS-232 / RS-485 Cable Assemblies: Building custom COM port communication links, serial mouse lines, and modem connections for computing hardware.

• VGA Video Interfaces (HD15): Enclosing compact high-density 15-pin configurations commonly used in custom monitor arrays, projector patch cords, and KVM switches.

• Industrial & CNC Data Links: Protecting data download pipelines running to programmable logic controllers (PLCs), CNC machine units, and motor controllers.

• Automotive Diagnostic Hardware: Finishing specialized OBD-II adapter arrays, CAN bus analysis leads, and data-logging system harnesses cleanly.
