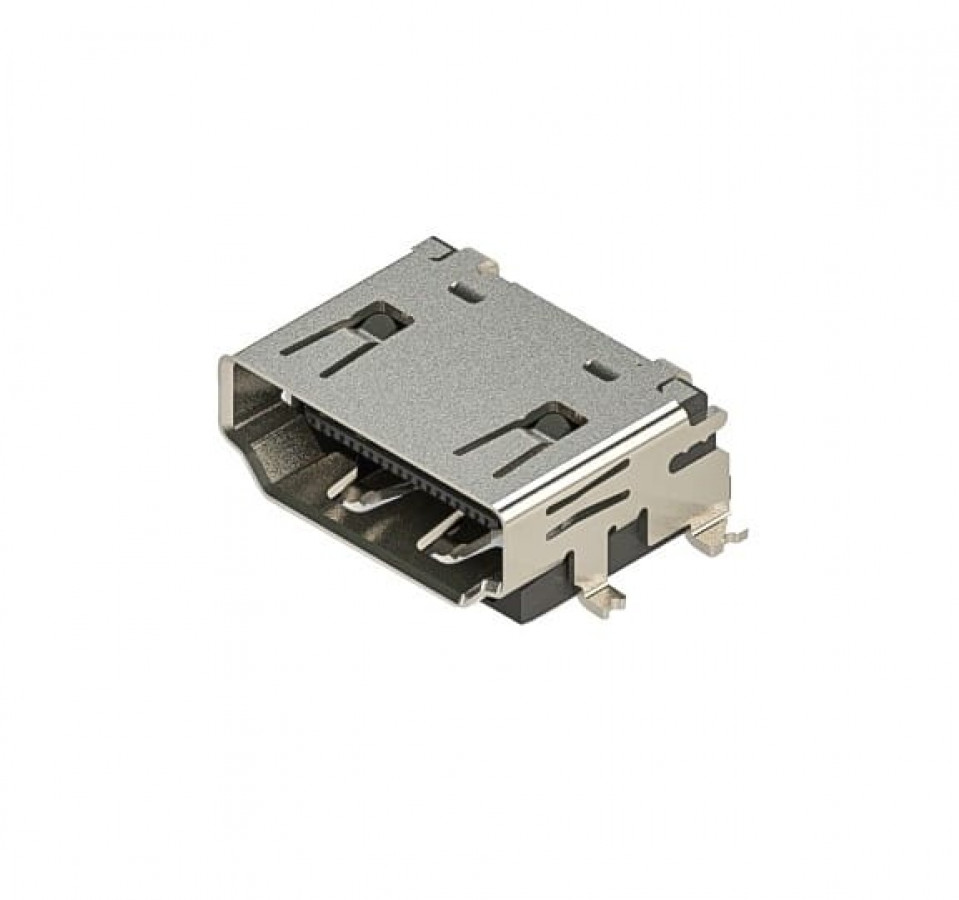

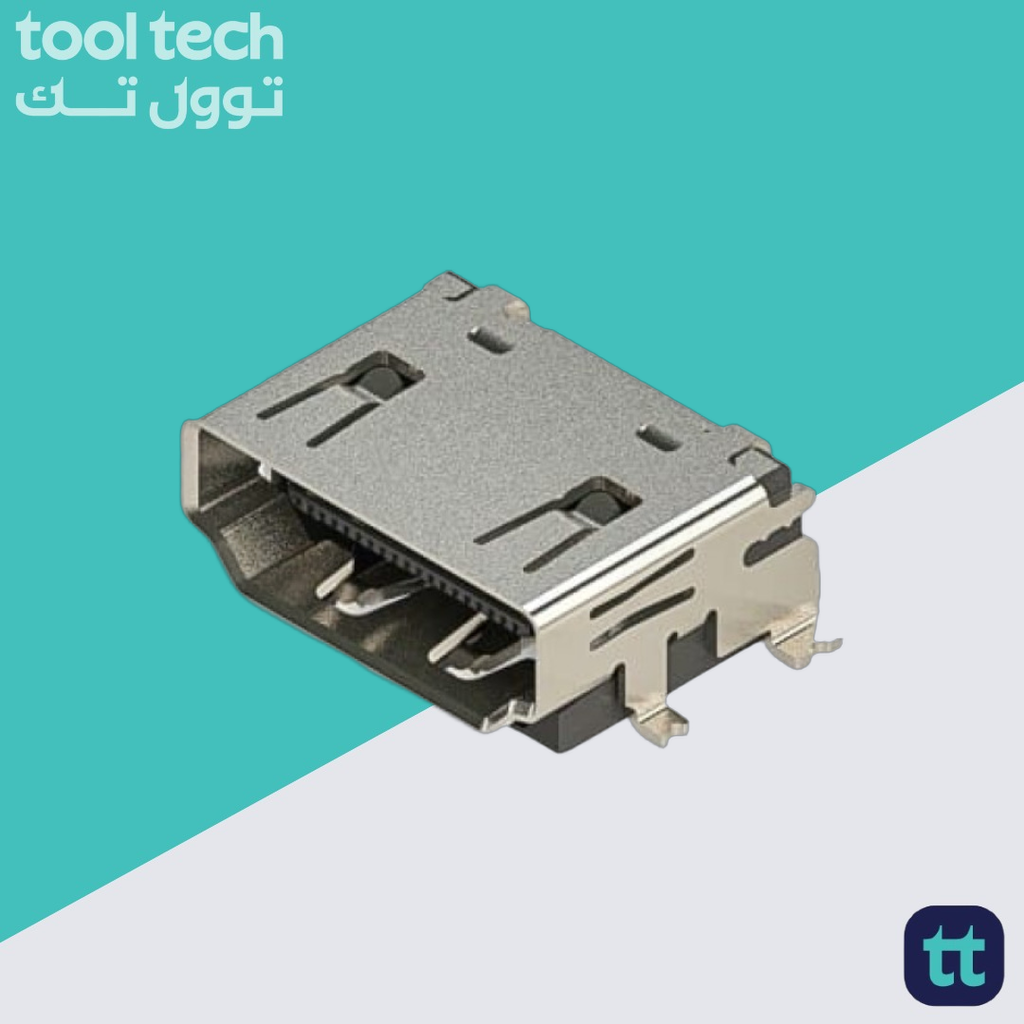

High-Definition HDMI Type-A Connector
Product Overview
This standard HDMI Type-A Connector is engineered for high-bandwidth digital audio and video transmission. Designed to meet modern multimedia demands, this high-density 19-pin component ensures flawless signal integrity for Full HD, 4K, and ultra-high-definition multi-channel audio feeds.
Featuring a robust metal shield and precision-engineered internal contacts, it is the ideal component for manufacturing media devices, developing custom video routing hardware, or performing high-quality port repairs on modern consumer electronics.
Key Features
-
Standard Type-A Interface: Features the universally recognized 19-pin configuration, fully backward compatible with all standard HDMI specifications (1.4, 2.0, and 2.1).
-
Superior Signal Integrity: Equipped with premium gold-plated or nickel-plated contacts to minimize signal attenuation, eliminate screen flickering, and resist corrosion.
-
Full EMI/RFI Protection: Encased in a heavy-duty metal shell that provides excellent grounding and shielding against external electromagnetic interference.
-
High-Definition Support: Fully capable of handling high-speed data transmission required for 4K video resolution, Audio Return Channel (ARC), and Ethernet-over-HDMI data.
Technical Specifications
| Parameter | Specification |
| Connector Type | HDMI Type-A (Standard) |
| Gender | Female / Receptacle |
| Number of Pins | 19 Pins |
| Contact Resistance | $\le 30\text{ m}\Omega$ |
| Insulation Resistance | $\ge 100\text{ M}\Omega$ |
| Dielectric Withstanding | 500V AC for 1 minute |
| Current Rating | 0.5A DC Min |
| Voltage Rating | 40V AC |
| Operating Temperature | $-25^\circ\text{C}$ to $+85^\circ\text{C}$ |
| Mating Cycles | 10,000+ insertions |
Applications
The universal standard for high-bandwidth multimedia connectivity across residential, commercial, and industrial hardware:
-
Display Output Devices: Gaming consoles, Blu-ray players, set-top Android boxes, and desktop graphics cards.
-
Display Input Devices: LED/OLED Televisions, computer monitors, and commercial projectors.
-
Audio-Visual Gear: AV receivers, soundbars, video switchers, and splitters.
-
Embedded Hardware: Single-board computers (SBCs), digital signage controllers, and custom video capture modules.
