Description
Descriptionn

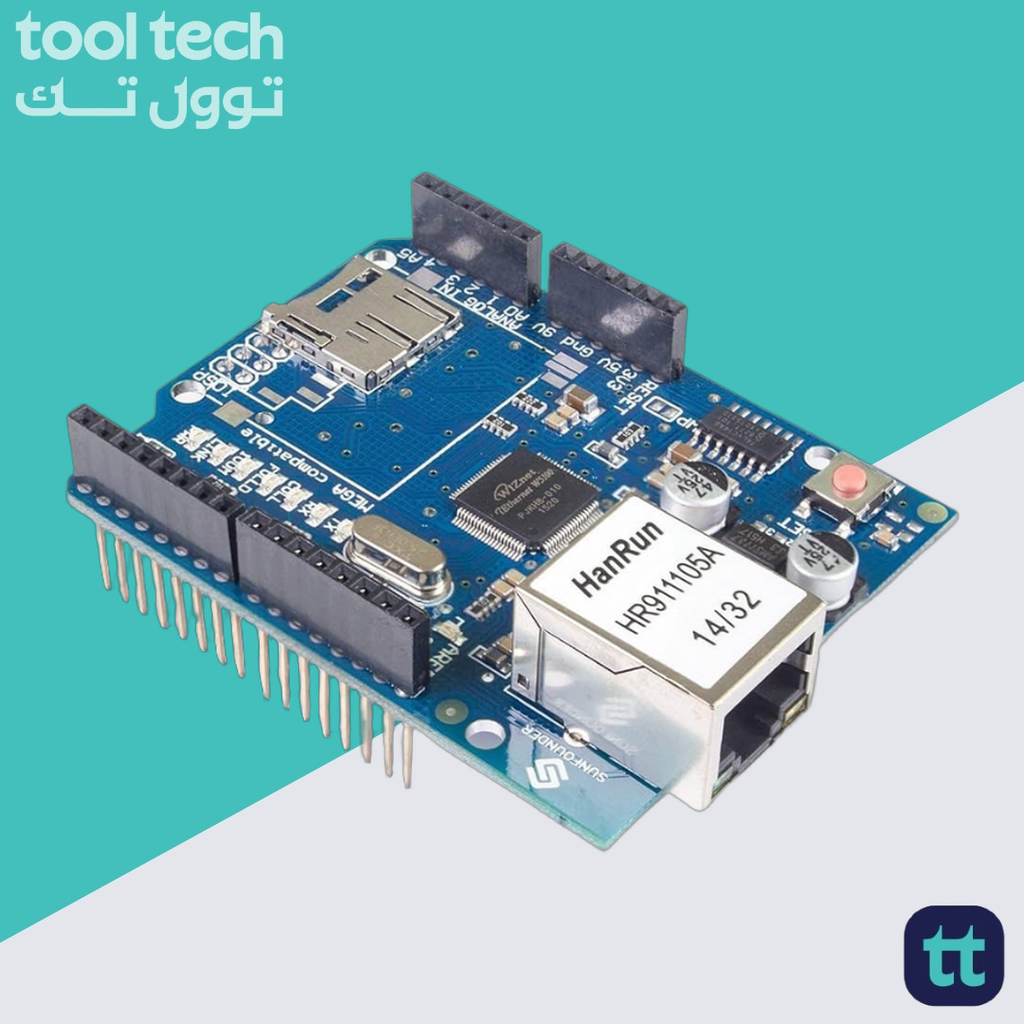

Connect your Arduino Uno or Mega to the internet and your local network using the W5100 Ethernet Shield.
This shield has an SD card slot, indicator LEDs, and is compatible with original or compatible Arduino Uno and Arduino Mega boards.
The board has an RJ45 network port and allows the use of Arduino ports (except those used for communication with the shield) as it exposes the contact pins on the top via female connectors.
Specifications:
– Ethernet Shield
– Compatible with Arduino Uno, Arduino Mega, and other boards
– Controller: W5100
– Operating voltage: 3.3 to 5 VDC
– Connection speed: 10/100 Mbps
– Supported network protocols: TCP/IP, UDP, ICMP, ARP IPv4, IGMP, PPPoE, Ethernet
– Supports full-duplex and half-duplex
– Supports ADSL connection (PPPoE with PAP/CHAP in authentication mode)
– Allows 4 simultaneous and independent connections
– Internal memory: 16 KB
– Microcontroller communication interface: SPI
– Dimensions: 70 x 50 x 30 mm
Blog:
– Arduino Communication with Ethernet Shield W5100
Contents:
01 – Ethernet Shield W5100
Description/Additional Information
Connect your Arduino Uno or Mega to the internet and your local network using the W5100 Ethernet Shield.
This shield has an SD card slot, indicator LEDs, and is compatible with original or compatible Arduino Uno and Arduino Mega boards.
The board has an RJ45 network port and allows the use of Arduino ports (except those used for communication with the shield) as it exposes the contact pins on the top via female connectors.
Specifications:
– Ethernet Shield
– Compatible with Arduino Uno, Arduino Mega, and other boards
– Controller: W5100
– Operating voltage: 3.3 to 5 VDC
– Connection speed: 10/100 Mbps
– Supported network protocols: TCP/IP, UDP, ICMP, ARP IPv4, IGMP, PPPoE, Ethernet
– Supports full-duplex and half-duplex
– Supports ADSL connection (PPPoE with PAP/CHAP in authentication mode)
– Allows 4 simultaneous and independent connections
– Internal memory: 16 KB
– Microcontroller communication interface: SPI
– Dimensions: 70 x 50 x 30 mm
Blog:
– Arduino Communication with Ethernet Shield W5100
Contents:
01 – Ethernet Shield W5100
Reviews
There are no reviews yet.
