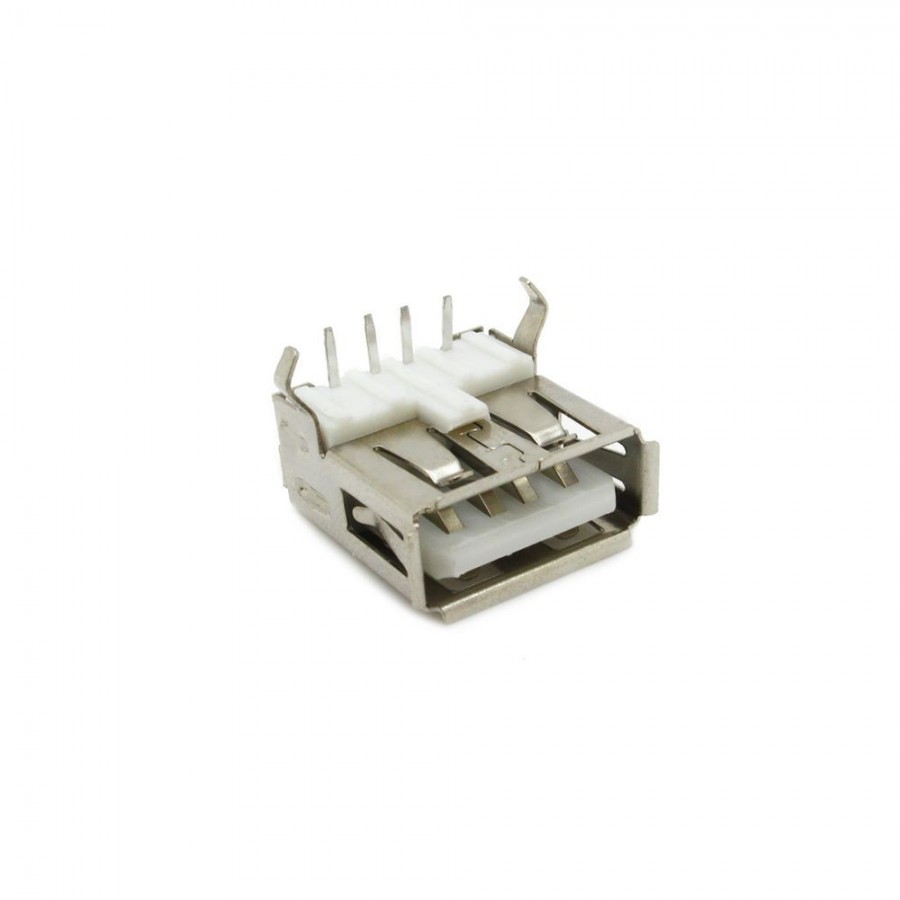

Heavy-Duty Female USB Type-A DIP Connector
Product Overview
This standard Female USB Type-A DIP (Dual In-line Package) connector is a reliable, through-hole component designed for secure board-level integration. Engineered with a robust metal shield and sturdy through-hole structural legs, it offers exceptional mechanical stability, making it highly resistant to the leverage and pull forces typical of frequent cable insertions.
Whether you are designing custom power supplies, replacing worn-out ports on commercial hardware, or building DIY electronics projects, this connector ensures a rock-solid physical and electrical connection.
Key Features
-
Standard Type-A Interface: Universally compatible with all standard USB 1.1 and USB 2.0 Type-A male cables and flash drives.
-
DIP Through-Hole Mounting: Features 4 electrical pins plus 2 heavy-duty mechanical mounting tabs that pass through the PCB, providing maximum structural anchoring compared to surface-mount alternatives.
-
Rugged Construction: Wrapped in a nickel-plated steel shell to prevent physical deformation and shield against Electromagnetic Interference (EMI).
-
Right-Angle Design: Typically configured for 90-degree right-angle mounting, allowing the port to sit perfectly flush with the edge of your device enclosure.
Technical Specifications
| Parameter | Specification |
| Connector Type | USB Type-A Female |
| Mounting Type | DIP / Through-Hole |
| Orientation | Right-Angle (90 Degree) |
| Number of Pins | 4 Pins (Data+, Data-, VBUS, GND) + 2 Shield Tabs |
| Current Rating | 1.5A per pin |
| Voltage Rating | 30V AC/DC |
| Contact Resistance | $\le 30\text{ m}\Omega$ |
| Insulation Resistance | $\ge 1000\text{ M}\Omega$ |
| Dielectric Withstanding | 500V AC for 1 minute |
| Mating Cycles | 1,500+ insertions |
Applications
Ideal for integrating standard USB connectivity into a variety of hardware environments:
-
Power & Charging: Power banks, USB hubs, 5V wall adapters, and custom power supply modules.
-
Industrial & Testing: Test equipment, embedded control boards, and data loggers.
-
Development & DIY: Microcontroller breakout boards, custom computer peripherals, and DIY gaming consoles.
-
Repair Hardware: Replacement ports for laptops, desktop motherboards, TVs, and audio equipment.
