FNIRSI® DST-210 Handheld 3-IN-1 Multimeter Oscilloscope 10MHz & Signal Generator
FNIRSI® DST-210 is a compact multifunction electronic measurement instrument designed to provide advanced testing capabilities in a portable handheld form factor. The device integrates three essential tools including a digital oscilloscope, True RMS digital multimeter, and DDS signal generator, making it suitable for electronics engineers, technicians, students, and DIY enthusiasts.
Features:
- High-precision oscilloscope function: FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.
- Multi-function signal generator function: Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs.
- Comprehensive multimeter function: FNIRSI DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.
- Overload protection and portable design: The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.
- User-friendly and multifunctional: FNIRSI DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.
Specifications:
| Parameter | Value |
|---|---|
| Model | DST-210 |

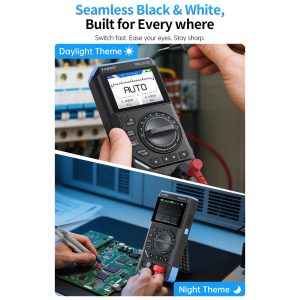

| Screen Material | 2.8 inches TFT Colorful Screen. |
| Backlight | Brightness adjustable. |
| Power Supply | TYPE-C (5VDC/1A). |
| Battery | 3000mAh. |
| Languages | 中文, English. |
| Product Size | ≈177.43×87.47×34.5mm. |
| Bare Weight | ≈300g. |
| Sampling Rate (DST-210) | 48MSa/s. |
| Sampling Rate (DST-201) | 5MSa/s. |
| Analog Bandwidth (DST-210) | 10MHz. |
| Analog Bandwidth (DST-201) | 1MHz. |
| Input Impedance | 1MΩ. |
| Coupling Mode | AC/DC. |
| Test Voltage Range (1:1 probe) | 80Vpp (+40V). |
| Test Voltage Range (10:1 probe) | 800Vpp (+400V). |
| Vertical Sensitivity | 10mV/div to 10V/div (x1). |
| Vertical Displacement | Adjustable with indicators. |
| Horizontal Time Base (DST-210) | 50ns to 20s. |
| Horizontal Time Base (DST-201) | 500ns to 20s. |
| Trigger Mode | Auto / Normal / Single. |
| Trigger Type | Rising Edge & Falling Edge. |
| Trigger Level | Adjustable with indicators. |

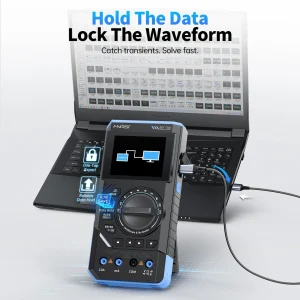

| Waveform Freeze | Support (HOLD function). |
| Auto Measurement | Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle. |
| DC Voltage | 1.9999V / 19.999V / 199.99V / 1000V. |
| AC Voltage | 1.9999V / 19.999V / 199.99V / 750.0V. |
| DC Current | 19.999mA / 199.99mA / 1.9999A / 9.999A. |
| AC Current | 19.999mA / 199.99mA / 1.9999A / 9.999A. |
| Resistance | 19.999MΩ / 1.9999MΩ / 199.99kΩ / 19.999kΩ / 1.9999kΩ / 199.99Ω. |
| Capacitance | 999.9µF / 99.99µF / 9.999µF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF. |
| Frequency | 9.999MHz / 999.9kHz / 99.99kHz / 9.999kHz / 999.99Hz / 99.99Hz / 9.999Hz. |
| Temperature | (-55°C to 1300°C) / (-67°F to 2372°F). |
| Diode / Continuity | Support. |
| Single Probe AC Voltage Measurement (LIVE) | Support. |
| Output Waveform | Support 13 types of waveform output. |
| Waveform Frequency (DST-210) | 0 to 50kHz. |
| Waveform Frequency (DST-201) | 0 to 10kHz. |
| Square Duty Cycle | 0% to 100% (Square and Sawtooth are adjustable). |
| Waveform Amplitude | 0.1VDC to 3.0VDC. |
Applications:
- Electronic circuit debugging.
- Oscilloscope waveform analysis.
- Embedded systems development.
- Arduino and microcontroller testing.
- Electronics maintenance and repair.
- Educational laboratory experiments.
- Signal waveform generation.
- Audio signal troubleshooting.
- DIY electronics projects.
- Portable field service testing.
- Power supply diagnostics.
- Analog and digital circuit analysis.
- Sensor signal monitoring.
- Industrial maintenance applications.
Documents:

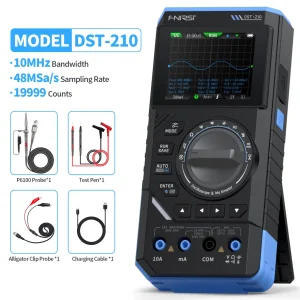

- 1x DST-210 DMMScope (Handheld 3-in-1 Multimeter, Oscilloscope, Signal Generator).
- 1x P6100 Probe.
- 1x DMM Test Leads.
- 1x Alligator Clip Probe.
- 1x USB Data Cable.
- 1x User Guide.
- 1x Gift Box.
