FNIRSI® DS215H 2-IN-1 50MHz 250MS/S Dual Channel Digital Oscilloscope DDS Function Singal Generator
The FNIRSI DS215H is a professional portable dual-channel digital oscilloscope integrated with a DDS function signal generator, designed for waveform analysis, electronic debugging, signal testing, and educational laboratory applications. Featuring a real-time sampling rate of 250MSa/s and a 50MHz analog bandwidth, the DS215H delivers stable waveform acquisition and accurate signal visualization suitable for engineers, technicians, students, and electronics enthusiasts. The compact handheld design combined with integrated rechargeable battery support makes the device highly suitable for portable field measurement and maintenance operations.
Features:
- High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.
- Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.
- Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.
- Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.
- Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
- Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
- Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.
Specifications:
| arameter | Value |
|---|---|
| Brand | FNIRSI |
| Model | DS215H |
| Display | 3.5inch IPS high-definition color screen |
| Backlight | Brightness Adjustable |
| Power Supply | TYPE-C (5V/1A) |
| Battery | 1500mAh |
| Languages | 中文, English, Deutsch, Português, 日本語, Español, 한국인, Pyccкий |
| Product Size | ≈66x110x19.5mm |
| Product Weight | ≈138g |
| Channel | Dual channel |
| Bandwidth | 50MHz |
| Real-time Sampling Rate | 250MSa/s |
| Storage Space | 14M |
| Time Base Range | 20ns/div – 20s/div |
| Vertical Sensitivity | 10mV/div – 10V/div |
| Vertical Resolution | 8 bits |
| Input Impedance | 1MΩ |
| Waveform Display Mode | Scroll |
| Measurement Data | Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Dduty cycle, Pulse width |
| Probe Attenuation Factor | 1x/10x |
| Input Coupling | AC/DC |
| Trigger Type | Rising edge/Falling edge |
| Peak Voltage | ±400V |
| Trigger Level Range | 8 grids (positive and negative) |
| Trigger Mode | Auto / Normal / Single |
| Output Waveform | Supports multiple waveform outputs |
| Waveform Frequency | 0-50KHz |
| Square Wave Duty Cycle | 0-100% |
| Waveform Amplitude | 0.1V-3.0V |
Configurations:
Applications:
- Electronic circuit debugging and analysis.
- Embedded systems development.
- Signal waveform observation and testing.
- Power supply and sensor diagnostics.
- Educational laboratory experiments.
- Portable field maintenance operations.
- Frequency and waveform generation applications.
- Analog and digital circuit troubleshooting.
- Communication signal testing.
- DIY electronics development projects.
Package Include:

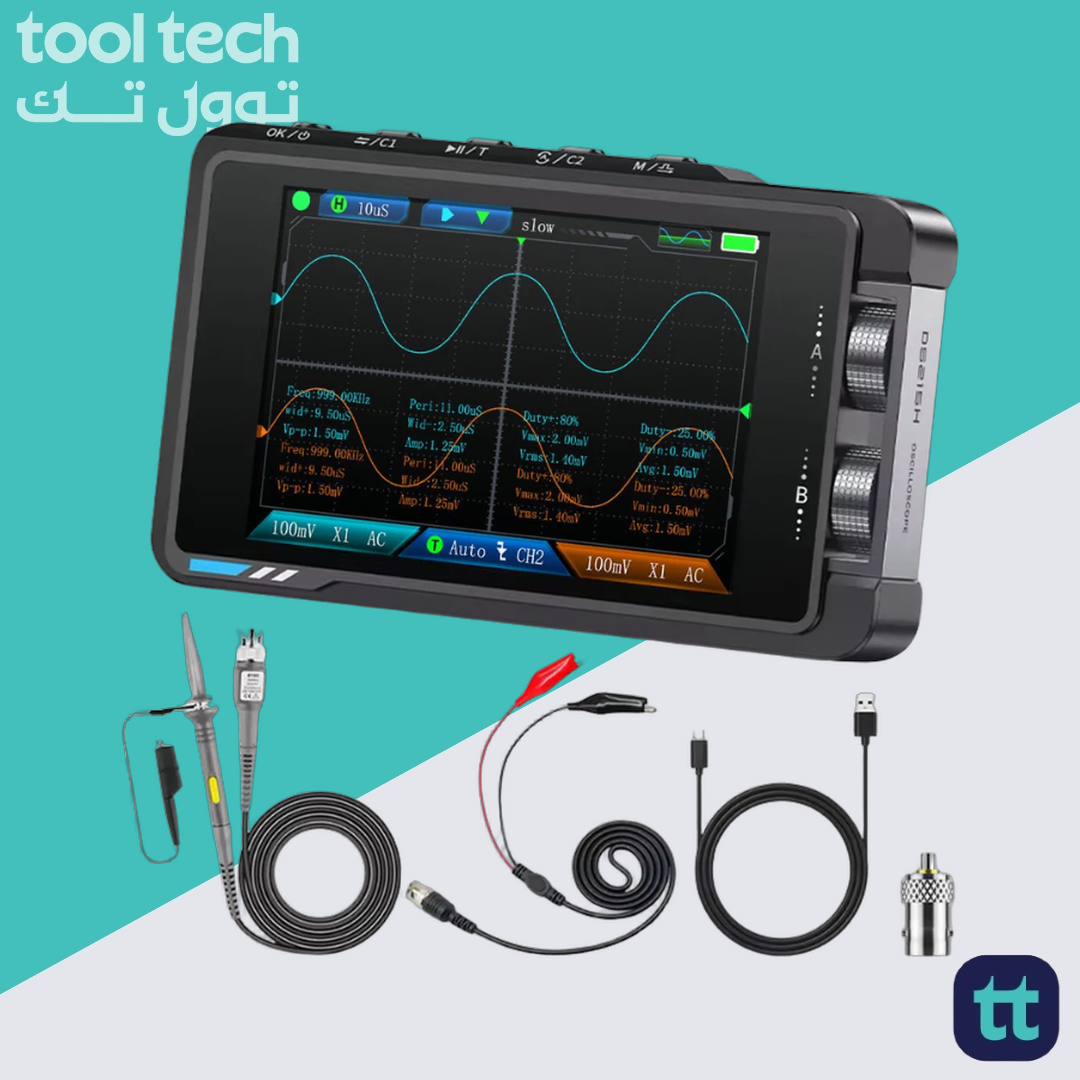

- 1x FNIRSI DS215H Digital Oscilloscope.
- 1x P6100 Oscilloscope Probe.
- 1x Alligator Clip Probe.
- 1x USB Type-C Charging Cable.
- 1x User Manual.
