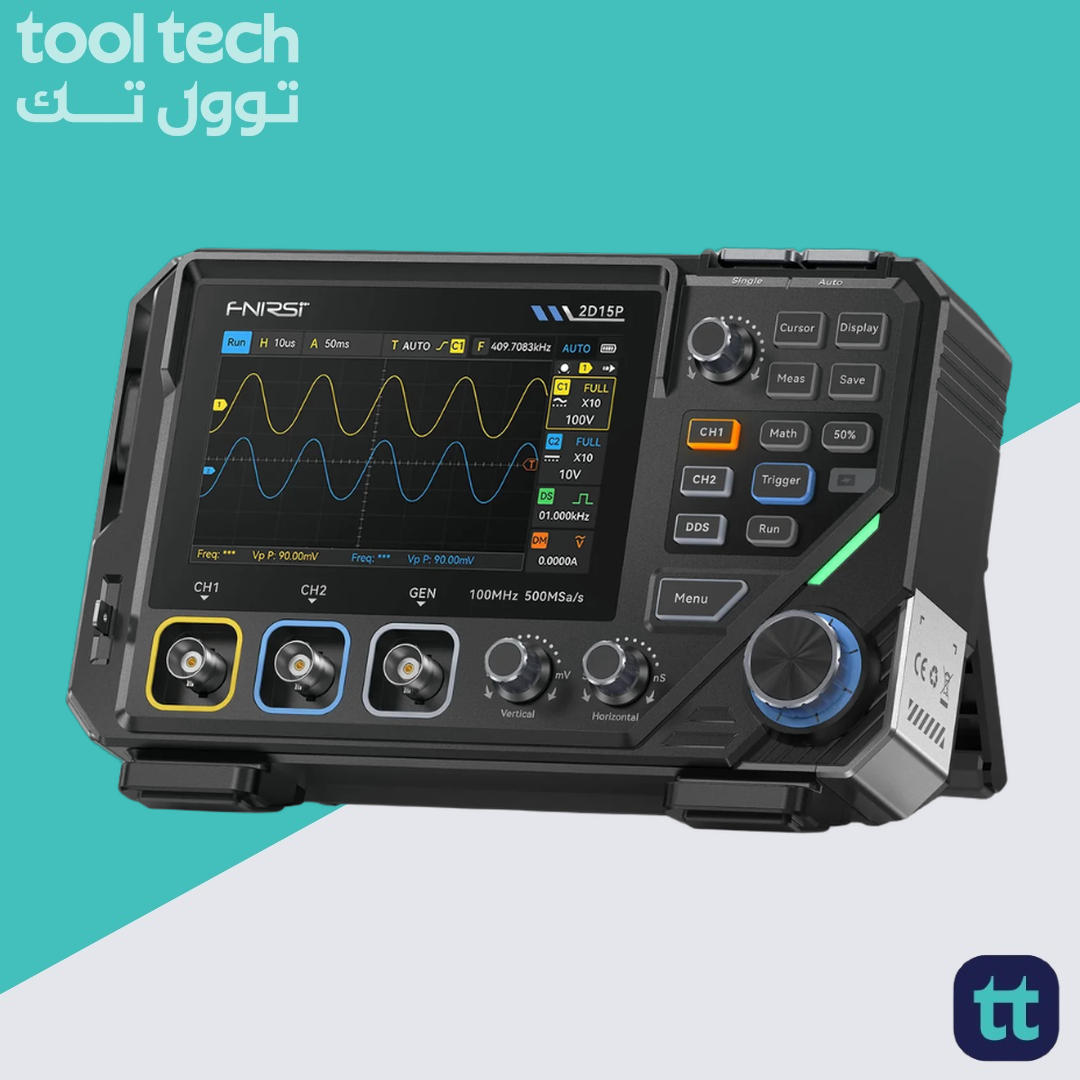

FNIRSI® 2D15P 3-In-1 Benchtop 2CH 100MHz Phosphor Oscilloscope Multimeter
The FNIRSI 2D15P combines physical buttons with a 4.3″ capacitive touchscreen. It offers 500 MSa/s sampling, 100 MHz single-channel bandwidth (50 MHz dual-channel), and 10K–1M memory depth. Features include 128-level grayscale display, 1200 fps waveform capture, math functions, 18 automatic measurements, a 10 MHz waveform generator, and a 19999 Counts True RMS multimeter supporting voltage, current, resistance, capacitance, diode, and continuity tests.
Features:
- Dual-Channel Input — 100 MHz single-channel / 50 MHz dual-channel operation.
- Selectable Memory Depths — 10 K / 100 K / 1 M for flexible data capture.
- 20 MHz Bandwidth Limit — Reduces noise for accurate ripple and precision testing.
- Grayscale & Color Temperature Visualization — Reveal waveform persistence and signal dynamics.
- Math Operations (Add, Subtract, Multiply, Divide, etc.) — Real-time signal computation.
- XY Mode & Infinite Persistence — Visualize phase relationships and waveform overlap.
- Cursor Function & 13 Auto Measurements — Quick and clear parameter analysis.
- Auto / Normal / Single Trigger Modes — Flexible signal capture for every testing need.
- 10 MHz DDS Signal Generator — Output up to 11 common waveforms with adjustable amplitude and duty cycle.
- True RMS Multimeter (19,999 Counts) — Supports V/A (AC/DC), Ω, capacitance, diode, and continuity tests.
- Curve View Function — Displays real-time trend graphs for visual signal tracking.
- FPGA + MCU + ADC Architecture — Ensures high-speed signal processing and stable performance.
- Compact & Lightweight Design — 30 % lighter body with a powerful 5000 mAh battery.
- Wave Save & Export Function — Store and transfer waveform data for post-analysis.
- Type-C Charging Interface — Convenient, fast, and universal power connection.
Specifications:
| Parameter | Value |
|---|---|
| Channels | 2 |
| Sample Rate | 500MSa/s |
| Analog Bandwidth | 100MHz |
| Memory Depth | 10K,100K,1M |
| Input Impedance | 1MΩ |
| Time base Range | 5ns-50s |
| Vertical Sensitivity | 10mV-10V/div |
| Max Input Voltage | 800V(x10Probe) |
| Trigger Mode | Auto, Normal, Single |
| Trigger Type | Rising, Falling, Both Edges |
| Display Mode | Dot, Vector, Color Temp |
| Coupling | AC/DC |
| Persistence | min,2s,5s,10s,20s,50s,∞ |
| Math Operations | Yes |
| Waveform Capture | Yes |
| Waveform Export | Yes |
| Cursor Measurement | Yes |
| DC Voltage Range | 1.9999V,19.999V,199.99V,1000V |
| AC Voltage Range | 1.9999V,19.999V,199.99V,750.0V |
| DC Current Range | 19.999mA,199.99mA,1.9999A,9.999A |
| AC Current Range | 19.999mA,199.99mA,1.9999A,9.999A |
| Resistance Range | 19.999MΩ,1.9999MΩ,199.99KΩ,19.999KΩ,1.9999KΩ,199.99Ω |
| Capacitance Range | 999.9uF,99.99uF,9.999uF,999.9nF,99.99nF,9.999nF,9.999mF,99.99mF |
| Diode Test | Yes |
| Continuity Test | Yes |
| Generator Channel | 1CH |
| Generator Frequency | 0-10MHz |
| Generator Amplitude | 0.1-3.0Vpp |
| Generator Duty Cycle | 0-100% |
| Display | 4.3inIPSTouchscreen |
Applications:
- Electronic circuit debugging.
- Power supply ripple analysis.
- Embedded systems development.
- Arduino and microcontroller testing.
- Signal waveform analysis.
- Educational laboratory experiments.
- Electronics maintenance and repair.
- Audio signal troubleshooting.
- Industrial equipment servicing.
- Communication circuit diagnostics.
- Sensor signal monitoring.
- Analog and digital circuit analysis.
- DIY electronics projects.
- Field service testing applications.
Package Include:
- 1x FNIRSI® 2D15P 3-In-1 Benchtop Oscilloscope Multimeter.
- 2x Oscilloscope Probes.
- 1x Multimeter Test Lead Set.
- 1x USB Type-C Charging Cable.
- 1x User Manual.
