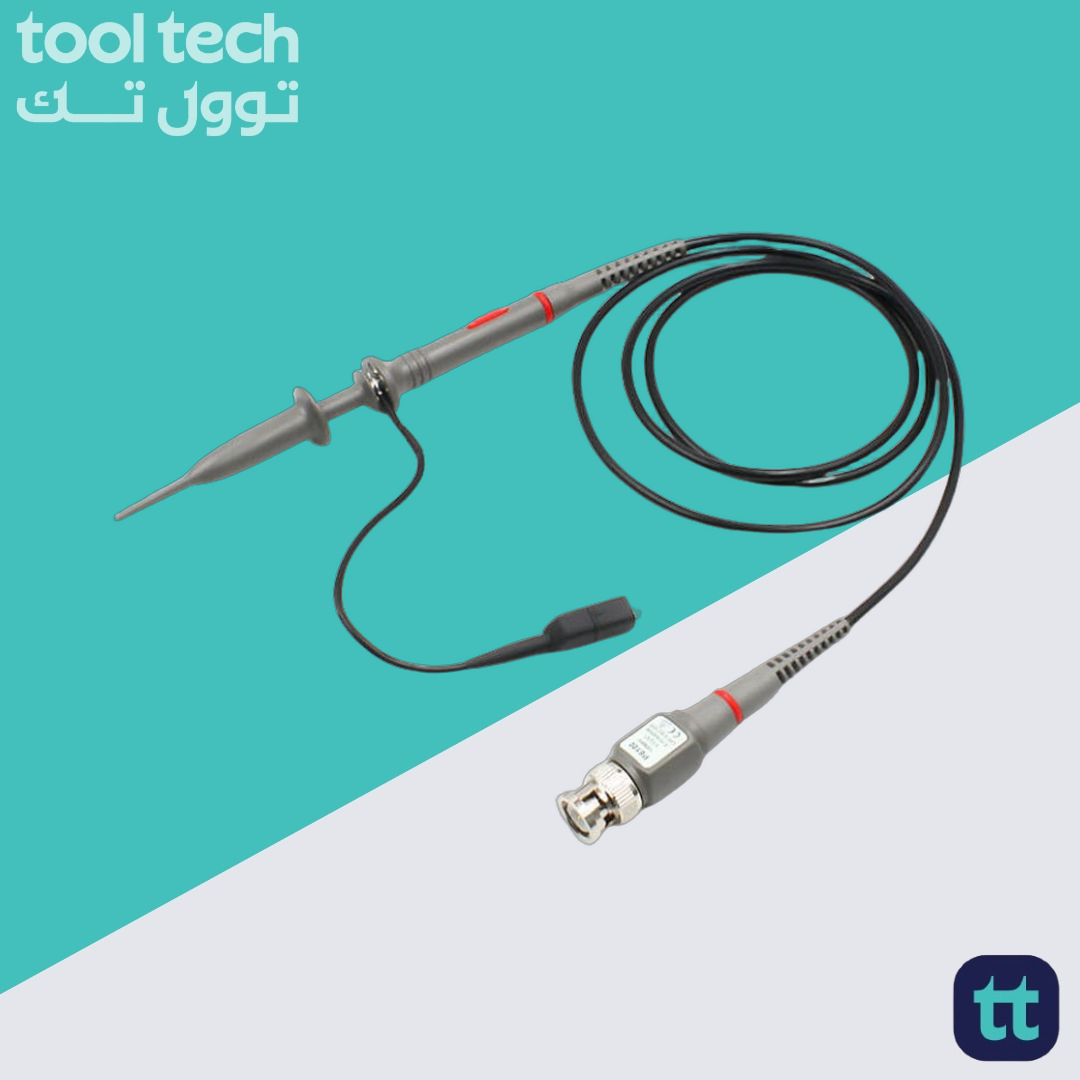

FNIRSI® P6100 Oscilloscope Probe
The FNIRSI P6100 Oscilloscope Probe is a professional passive oscilloscope probe designed for accurate signal measurement and waveform analysis in electronic testing, circuit debugging, and laboratory applications. The probe supports switchable attenuation modes between 1X and 10X, allowing users to perform both low-voltage precision measurements and higher-voltage signal analysis with improved flexibility and accuracy. Compatible with most standard BNC interface oscilloscopes, the P6100 is suitable for engineers, technicians, students, and electronics hobbyists.
Features:
- Passive oscilloscope probe with switchable 1X and 10X attenuation.
- Compatible with standard BNC oscilloscope interfaces.
- Maximum bandwidth up to 100MHz in 10X mode.
- High input impedance minimizes circuit loading effects.
- Low input capacitance for improved signal integrity.
- Supports high-voltage waveform measurements.
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI |
| Model | P6100 |
| Bandwidth (1X Mode) | DC-6MHz |
| Bandwidth (10X Mode) | DC-100MHz |
| Attenuation Ratio | 1X / 10X (Switchable) |
| Input Resistance (1X Mode) | 1MΩ |
| Input Resistance (10X Mode) | 10MΩ (Equivalent) |
| Input Capacitance (1X Mode) | 85pF-120pF |
| Input Capacitance (10X Mode) | 18.5pF-22.5pF |
| Compensation Range | 10pF-30pF |
| Rise Time | <3.5ns |
| Maximum Operating Voltage (1X Mode) | <200V DC+AC Peak |
| Maximum Operating Voltage (10X Mode) | <600V DC+AC Peak |
| Cable Length | 120cm |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +75°C |
| Relative Humidity | ≤5% |
| Connector Type | BNC |
| Weight | Approx. 80g |
Applications:
- Oscilloscope waveform measurement.
- Analog circuit debugging.
- Digital signal analysis.
- Embedded systems development.
- Educational laboratory experiments.
- Electronic maintenance and repair.
- Power supply signal testing.
- Communication signal diagnostics.
- Industrial electronic troubleshooting.
- DIY electronics development projects.
