Infrared IR Obstacle Avoidance Sensor Board 3 Pin

Description

Infrared IR Obstacle Avoidance Sensor Board 3 Pin

Infrared IR Obstacle Avoidance Sensor Board 3 Pin is perfect for Arduino or Micro: bits. The Infrared Obstacle Avoidance Sensor has a pair of infrared transmitting and receiving sensors. The infrared LED emits Infrared signals at a certain frequency. Then when an obstacle appears on the line of infrared light, it is reflected by the obstacle. When the sensor detects an obstacle, the LED indicator lights up, giving a low-level output signal in the OUT pin. The sensor detects a distance of 2 – 30cm. Additionally, the sensor has a potentiometer that can be adjusted to change the detection distance.

Features:

• Obstacle Detection Detects objects within a specified range using infrared light.
• Adjustable Sensitivity Potentiometer to fine-tune detection distance.
• Compact & Lightweight Suitable for small robotic applications.
• 3-Pin Interface Simple connection with microcontrollers.
• Indicator LED Onboard LED turns ON when an obstacle is detected.
• The output is in the form: DO digital switching outputs (0 and 1) and AO analog voltage output.
• Additionally, there are fixed bolt holes for easy installation.
• 3mm screw holes, easy fixed installation.
• The comparator output signal clean waveform is more than 15mA.
• It is equipped with a precision potentiometer adjustable sensitivity adjustment.
• Low Power Consumption Suitable for battery-operated systems.
• Fast Response Time Detects obstacles in real time.
• Compatible with Microcontrollers Works with Arduino, Raspberry Pi, PIC, AVR, STM32, etc.

Specifications:

• Operating Voltage: 3.3V – 5V
• Current Consumption: ~20mA
• Detection Range: 2cm to 30cm (adjustable via potentiometer)
• Detection Angle: 35°
• Output Type: Digital (High when no obstacle, Low when obstacle detected)
• Infrared Wavelength: 850nm – 950nm
• Response Time: < 2msec
• Pitch: 2.54mm
• Dimensions: 32mm x 14mm

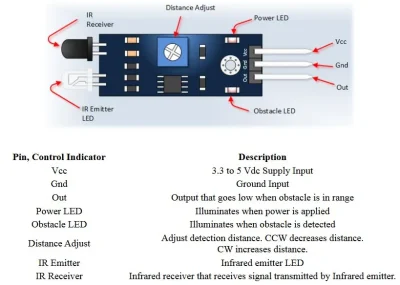

Pin Configuration:

• VCC: Power supply (3.3V – 5V)
• GND: Ground
• OUT: Digital output signal (0 and 1)
• Power LED: Illuminates when power is applied.
• Obstacle LED: Illuminates when the obstacle is detected.
• Distance Adjust: Adjust detection distance. CCW decreases distance. CW increases distance.

Applications:

• Robotics and Automation.
• Smart Vehicles & Transportation .
• Security and Surveillance.
• Industrial Applications.
• Consumer Electronics & Home Automation.
• Medical & Assistive Devices.
• Gaming & Interactive Systems.

Package Contents:

1 X  Infrared IR Obstacle Avoidance Sensor Board 3 Pin.
