Description

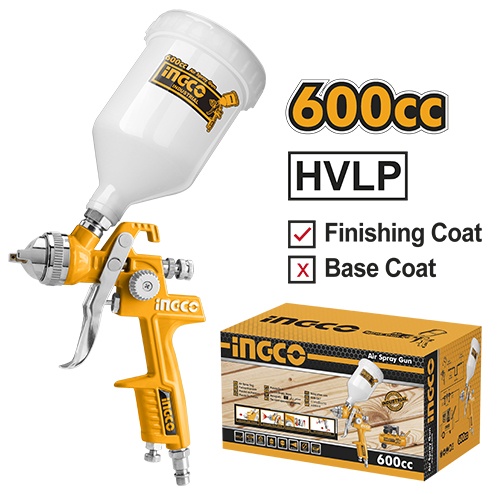

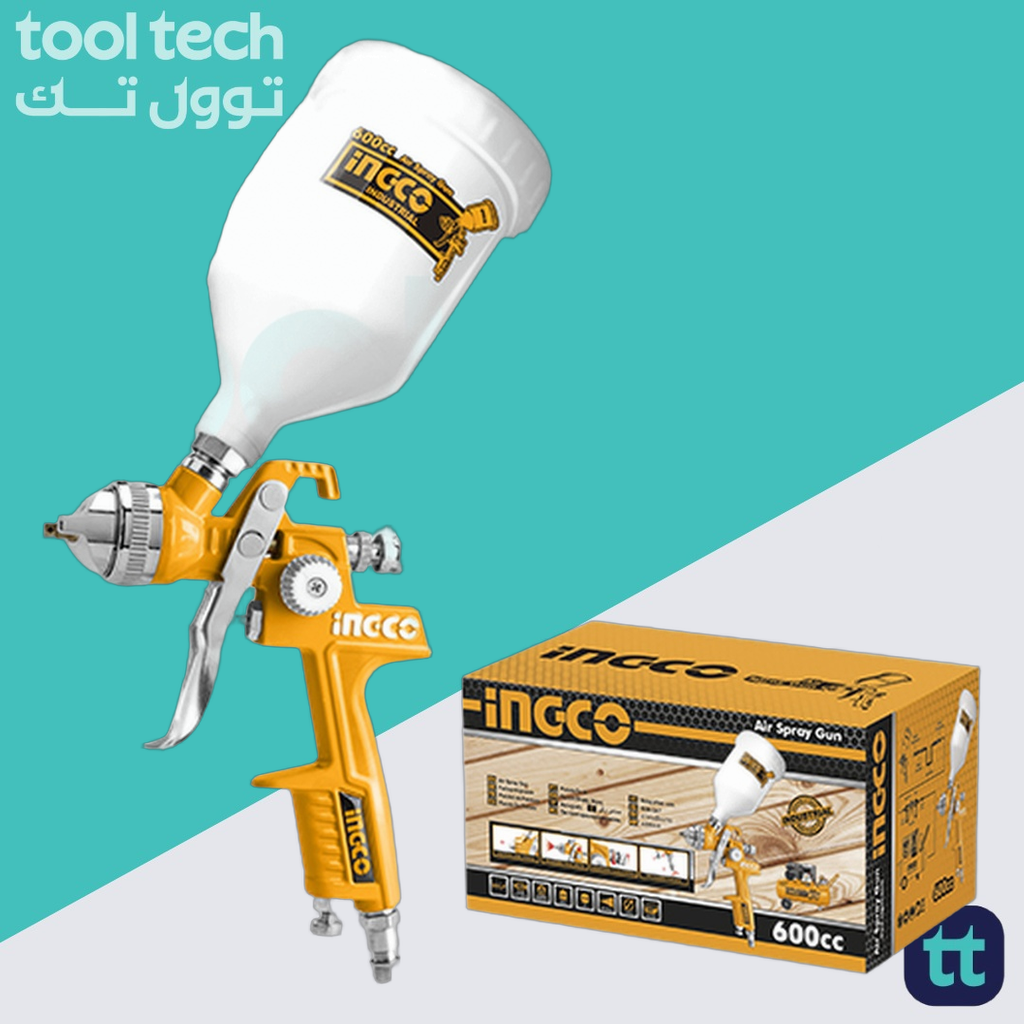

INGCO ASG1061 Air Spray Gun
The INGCO ASG1061 is an air-powered spray gun built for small to medium finishing tasks. It includes a 600cc paint cup, a 1.4mm standard nozzle (optional nozzles 1.3–2.5mm), an adjustable operating pressure of 2–3.5bar, and a spray pattern width of 180–250mm.
Key Benefits
1) Generous paint capacity
A 600cc paint cup reduces the need for frequent refills on medium-sized jobs.
2) Precise spray control
The 1.4mm standard nozzle delivers a balanced atomisation; optional nozzles from 1.3–2.5mm allow material flexibility.
3) Adjustable operating pressure
Set the gun between 2–3.5bar to match paint viscosity and achieve consistent coverage.
4) Wide spray pattern
A spray pattern of 180–250mm helps cover surfaces efficiently while maintaining control.
5) Designed for standard workshop setup
Air consumption of 4.2–7.1cfm (119–200l/min) fits common compressor capacities for routine finishing tasks.
Use Case Section
Typical applications
The INGCO ASG1061 Air Spray Gun is suitable for:
- Furniture refinishing and trim
- Doors, cabinets and interior woodwork
- Fences, gates and outdoor wood panels
- Paint touch-ups and small surface repainting
- Spray painting of medium-sized DIY projects
Match nozzle size and the 2–3.5bar operating pressure to the paint type and surface for best results.
Features Section
Key specifications and operating parameters:
- Model: ASG1061
- Product Type: Air Spray Gun
- Standard Nozzle: 1.4mm
- Optional Nozzle Sizes: 1.3–2.5mm
- Paint Capacity: 600cc
- Pattern Width: 180–250mm
- Operating Pressure: 2–3.5bar
- Air Consumption: 4.2–7.1cfm (119–200l/min)
- Packaging: color box
What’s in the Box
Inside the package, you get:
- 1 × INGCO ASG1061 Air Spray Gun
Technical Specifications
| Specification | Details |
|---|---|
| Model | ASG1061 |
| Product Type | Air Spray Gun |
| Standard Nozzle | 1.4mm |
| Pattern Width | 180-250mm |
| Paint Capacity | 600cc |
| Optional Nozzle | 1.3-2.5mm |
| Operating Pressure | 2-3.5bar |
| Air Cons | 4.2-7.1cfm(119-200l/min) |
| Packaging | color box |
All specifications above are taken from the manufacturer product page.
Use the ASG1061’s optional nozzles and its 2–3.5bar operating range to adapt spray performance for different coatings. The 600cc cup and 180–250mm pattern width make it suitable for steady progress on medium-sized finishing tasks.
Callout Blocks
600cc Paint Cup
Large capacity for fewer interruptions.
1.4mm Standard Nozzle
Balanced atomisation for common coatings.
Air Consumption
4.2–7.1cfm (119–200l/min) to guide compressor selection.
FAQ
What is the paint capacity?
The gun has a 600cc paint cup.
What nozzle sizes are available?
A 1.4mm standard nozzle is supplied; optional sizes range from 1.3–2.5mm.
What operating pressure does it require?
Recommended operating pressure is 2–3.5bar.
How much air does it consume?
Air consumption is 4.2–7.1cfm (119–200l/min).
What spray pattern width can I expect?
Pattern width ranges from 180–250mm.
