Description

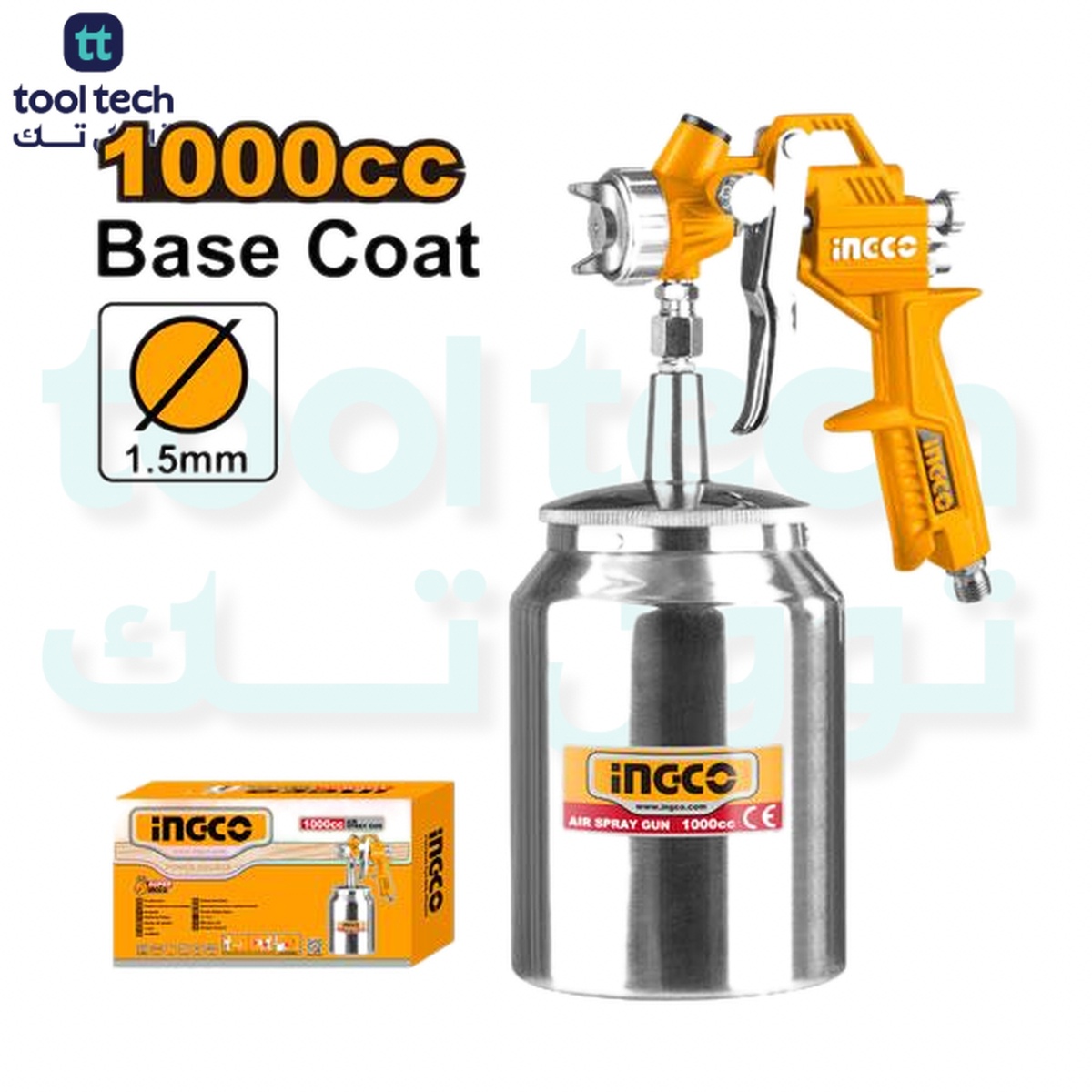

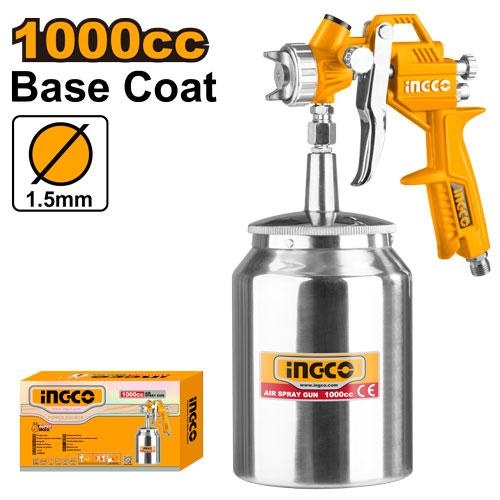

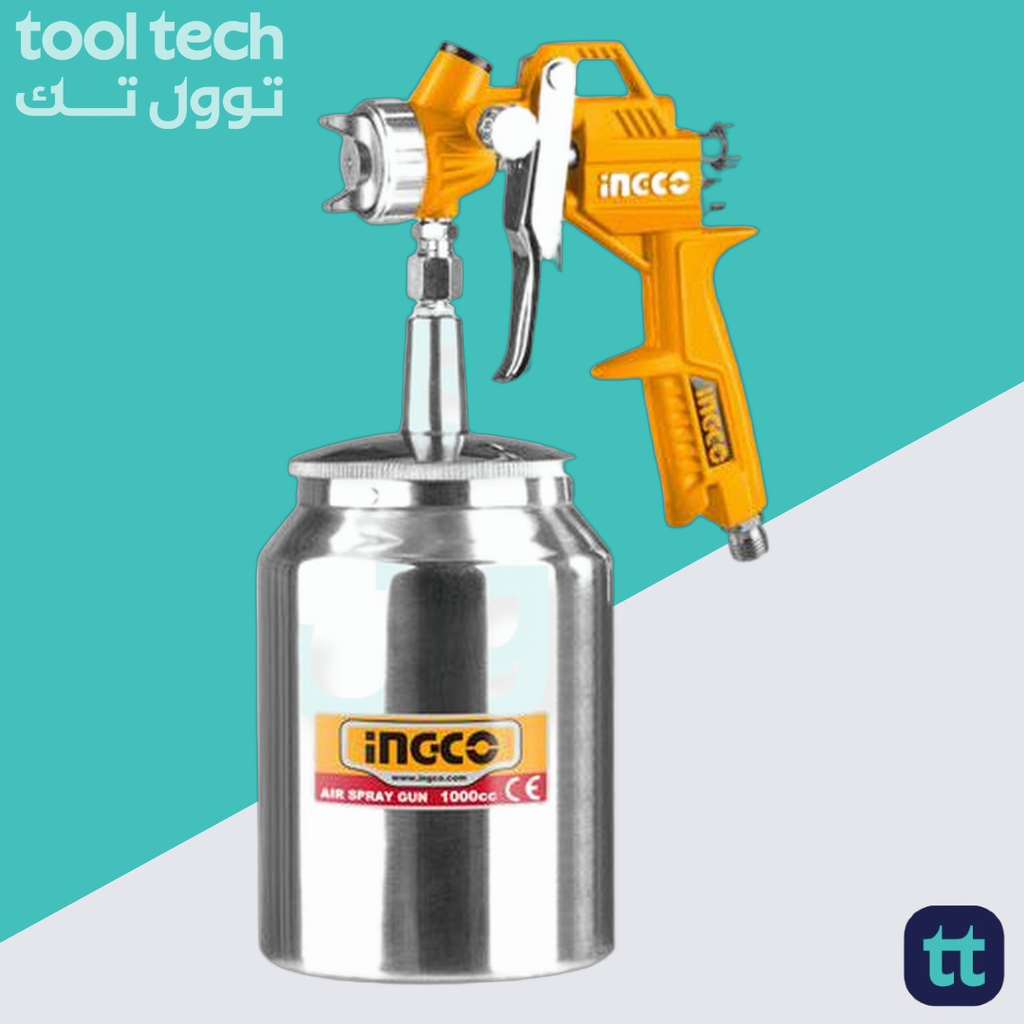

INGCO ASG3101 Air Spray Gun
The INGCO ASG3101 is an air spray gun designed for controlled coating with a 1.5mm standard nozzle and optional 1.2–1.8mm nozzles. It features a 1000cc paint capacity and a spray pattern width of 140–180mm. Recommended operating pressure is 3–4bar with an air consumption of 4.2–7.1cfm (119–200 l/min).
Key Benefits
1) Generous Paint Capacity
The 1000cc cup reduces refill frequency for longer continuous spraying sessions.
2) Adjustable Nozzle Options
Comes with a 1.5mm standard nozzle and supports optional 1.2–1.8mm nozzles for varying material flow.
3) Wide Spray Pattern
Pattern width of 140–180mm covers larger areas efficiently while maintaining control.
4) Defined Operating Range
Designed to run at 3–4bar operating pressure for consistent atomization.
5) Matched Air Requirements
Air consumption of 4.2–7.1cfm (119–200 l/min) helps you size an appropriate compressor or air supply.
Use Case Section
Typical Applications
The INGCO ASG3101 Air Spray Gun is suitable for:
- Automotive touch-up and refinishing
- Furniture and cabinetry finishing
- Metalwork and equipment coating
- Fence, trim, and exterior painting
- Priming and sealing operations
- DIY and workshop spray projects
These applications are suggested based on the gun’s nozzle sizes, pattern width, and 1000cc paint capacity.
Features Section
Key specifications at a glance:
- Model: ASG3101
- Product Type: Air Spray Gun
- Standard Nozzle: 1.5mm
- Optional Nozzle: 1.2–1.8mm
- Pattern Width: 140–180mm
- Paint Capacity: 1000cc
- Operating Pressure: 3–4bar
- Air Consumption: 4.2–7.1cfm (119–200 l/min)
- Packaging: color box
What’s in the Box
Inside the package, you get:
- 1 × INGCO ASG3101 Air Spray Gun
Technical Specifications
| Specification | Details |
|---|---|
| Model | ASG3101 |
| Product Type | Air Spray Gun |
| Standard Nozzle | 1.5mm |
| Pattern Width | 140-180mm |
| Paint Capacity | 1000cc |
| Optional Nozzle | 1.2-1.8mm |
| Operating Pressure | 3-4bar |
| Air Cons | 4.2-7.1cfm(119-200l/min) |
| Packaging | color box |
All specifications above are taken from the manufacturer product page.
Packaged in a color box, the INGCO ASG3101 accepts 1.2–1.8mm nozzles and should be used with an air supply capable of 4.2–7.1cfm (119–200 l/min) at 3–4bar to achieve the specified pattern width and material flow.
Callout Blocks
1000cc Paint Capacity
Larger cup size for extended spraying without frequent refills.
1.5mm Standard Nozzle
Balanced standard nozzle for common coating tasks.
3–4bar Operating Pressure
Maintains consistent atomization within the specified pressure range.
FAQ
What is the paint cup capacity?
The paint capacity is 1000cc.
Which nozzle is supplied as standard?
A 1.5mm standard nozzle is supplied; optional nozzles of 1.2–1.8mm are supported.
What operating pressure does the gun require?
Recommended operating pressure is 3–4bar.
How much air does the spray gun consume?
Air consumption is 4.2–7.1cfm (119–200 l/min).
