Description

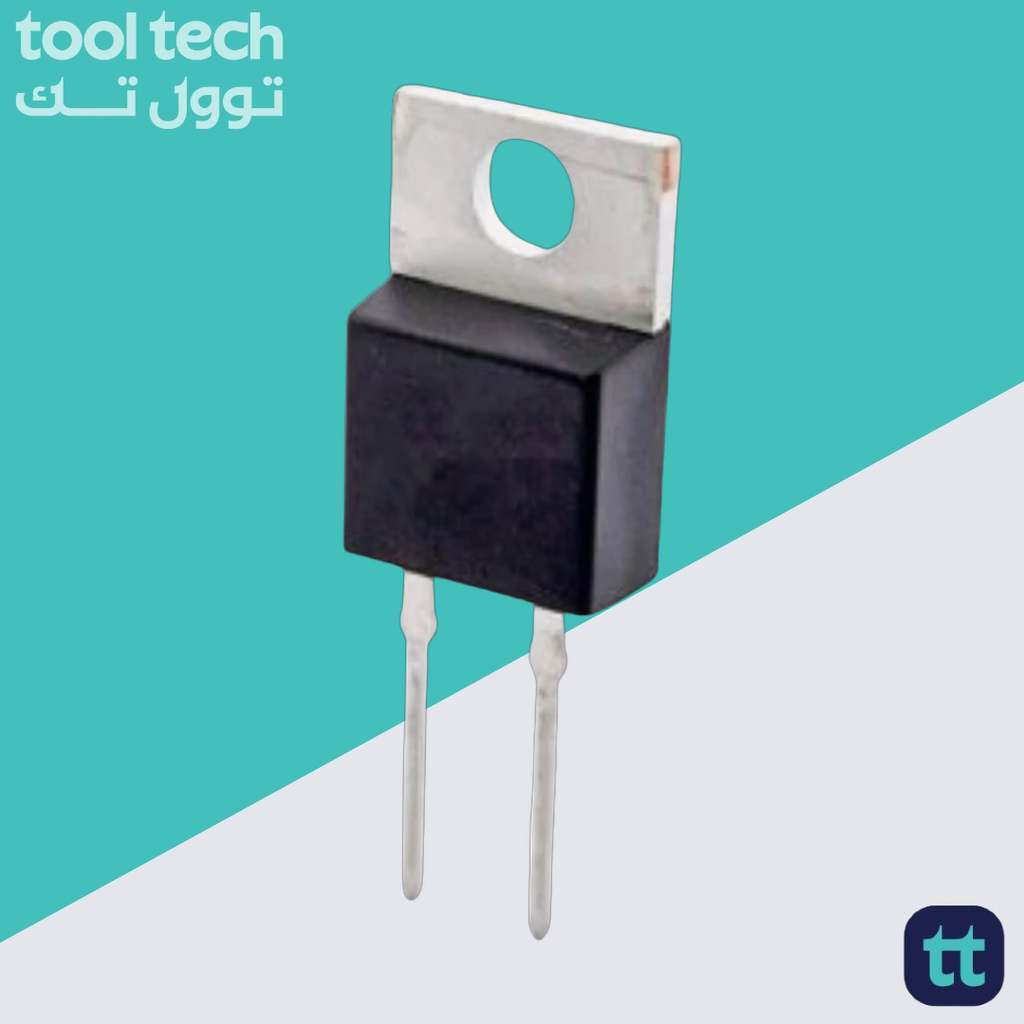

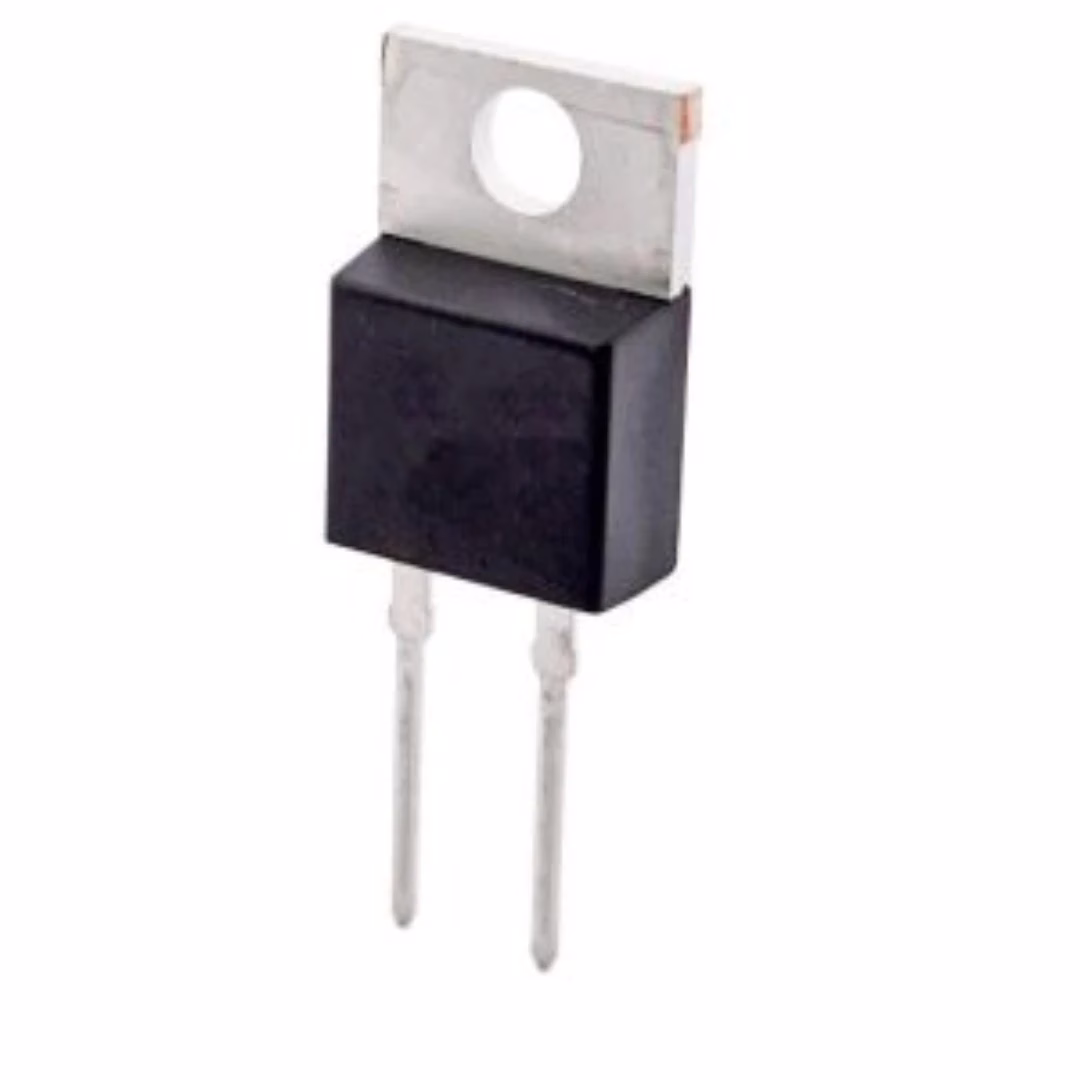

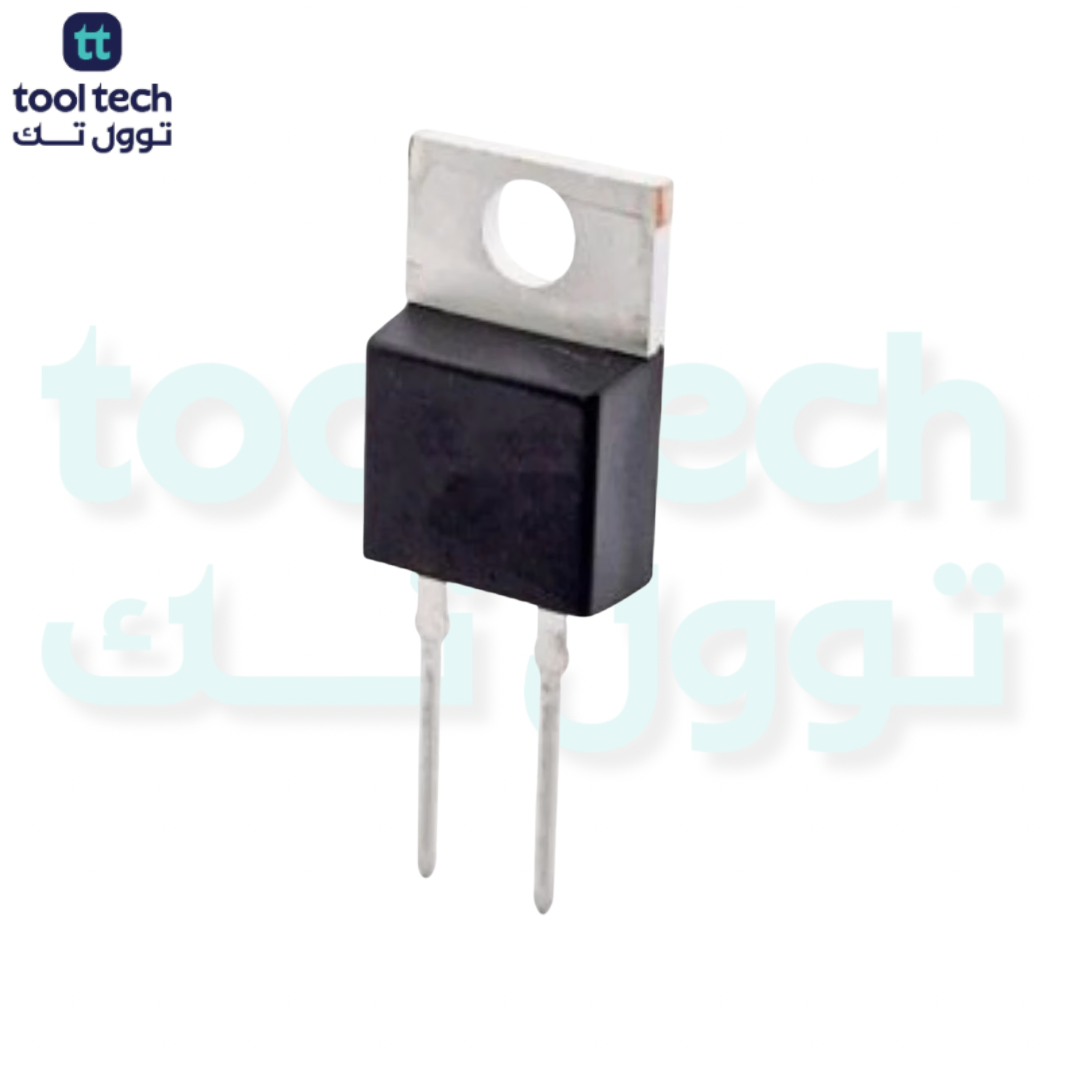

The MUR860G (often marked as MUR860) is an Ultrafast Rectifier diode. It is a high-performance, high-reliability component designed specifically for fast switching applications where standard silicon rectifiers (like the 1N4007) would fail due to excessive heat and switching losses.
Technical Specifications
| Parameter | Rating |
| Peak Repetitive Reverse Voltage ($V_{RRM}$) | 600 V |
| Average Rectified Forward Current ($I_{F(AV)}$) | 8.0 A |
| Reverse Recovery Time ($t_{rr}$) | 50 ns (typical) |
| Forward Voltage Drop ($V_F$) | ~1.5 V (at 8A) |
| Package Type | TO-220-2 (Heatsink mountable) |
Key Characteristics & Engineering Advantages
-
Ultrafast Switching: With a recovery time of only 50ns, this diode is optimized for high-frequency operation (typically >20 kHz). This minimizes the energy wasted during each switching cycle in power conversion circuits.
-
Rugged Design: The MUR860G is designed for high-temperature and high-voltage environments, often featuring “glass-passivated” junctions to ensure stability and low leakage current under electrical stress.
-
TO-220 Package: The TO-220-2 package is a standard industry format that includes a metal mounting tab. This tab is typically connected to the cathode (or electrically isolated depending on the specific manufacturer variant, so always check the datasheet), making it easy to bolt onto a heatsink to dissipate the heat generated at 8A.
Critical Comparison
Because this is an Ultrafast Rectifier, it is significantly different from a general-purpose diode of similar size:
| Feature | 1N5408 (Standard) | MUR860G (Ultrafast) |
| Switching Speed | Very Slow (>2000ns) | Ultrafast (50ns) |
| Application | 50/60Hz Rectification | High-Freq SMPS/PWM |
| Efficiency | Poor at high frequency | Excellent at high frequency |
| Mounting | PCB (Axial) | Heatsink (TO-220) |
Design Considerations
-
Thermal Management: Operating at 8A with a forward voltage drop of ~1.5V means the diode will dissipate roughly 12 Watts of heat. An adequate heatsink is non-negotiable. Without proper thermal dissipation, the diode will quickly exceed its maximum junction temperature ($T_J$) and fail.
-
Reverse Recovery: The 50ns recovery time is specifically beneficial for reducing the “ringing” and electromagnetic interference (EMI) often found in high-speed switching power supplies.
-
Polarity: As a TO-220-2 device, it generally follows the standard pinout where Pin 1 is the Anode and the Tab/Pin 2 is the Cathode. However, always verify this against the datasheet for your specific brand of MUR860 to avoid a direct short.
Typical Applications
-
Output Rectification: In Switch Mode Power Supplies (SMPS) where the transformer output is at a high frequency.
-
Freewheeling/Flyback: Used in pulse-width modulation (PWM) motor control circuits to protect switching transistors from inductive voltage spikes.
-
Inverters: High-speed rectification in DC-to-AC conversion stages.
