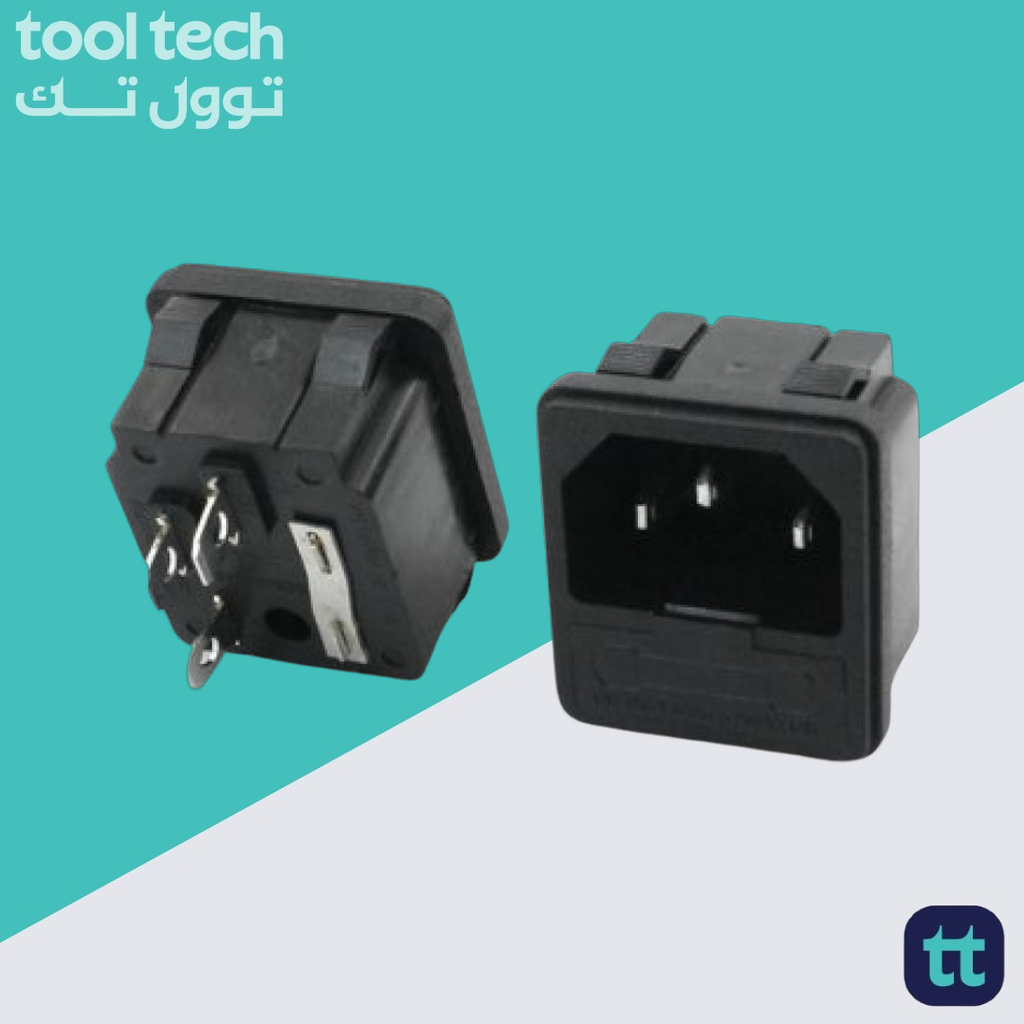

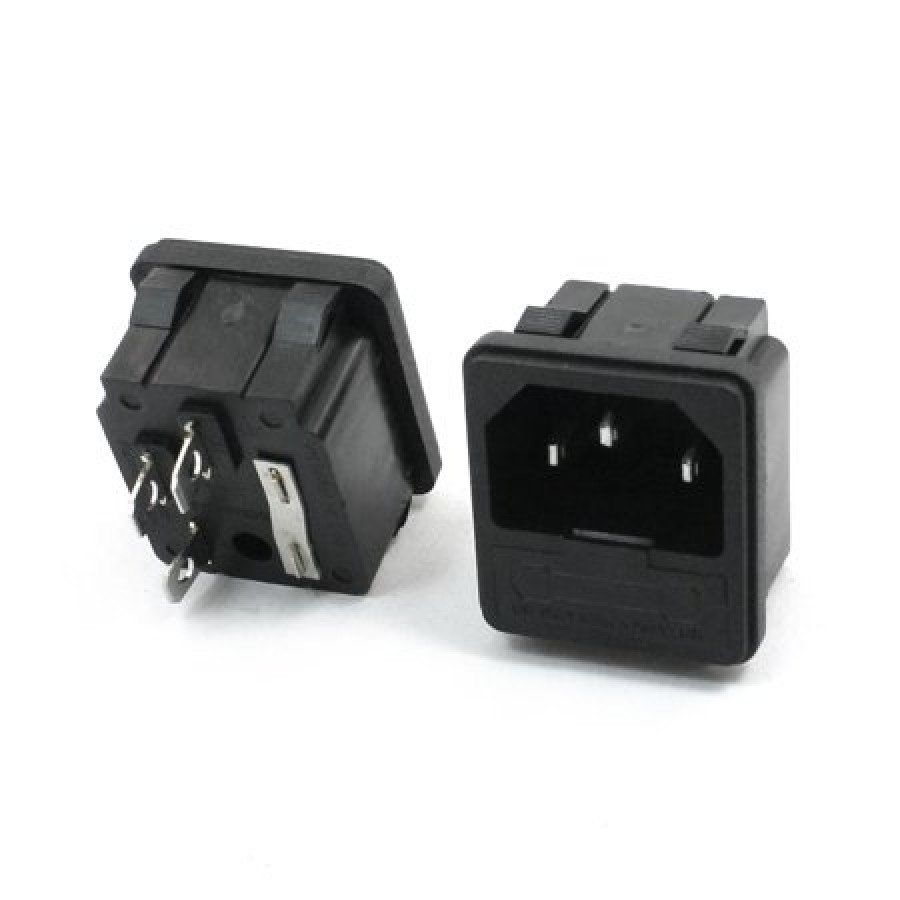

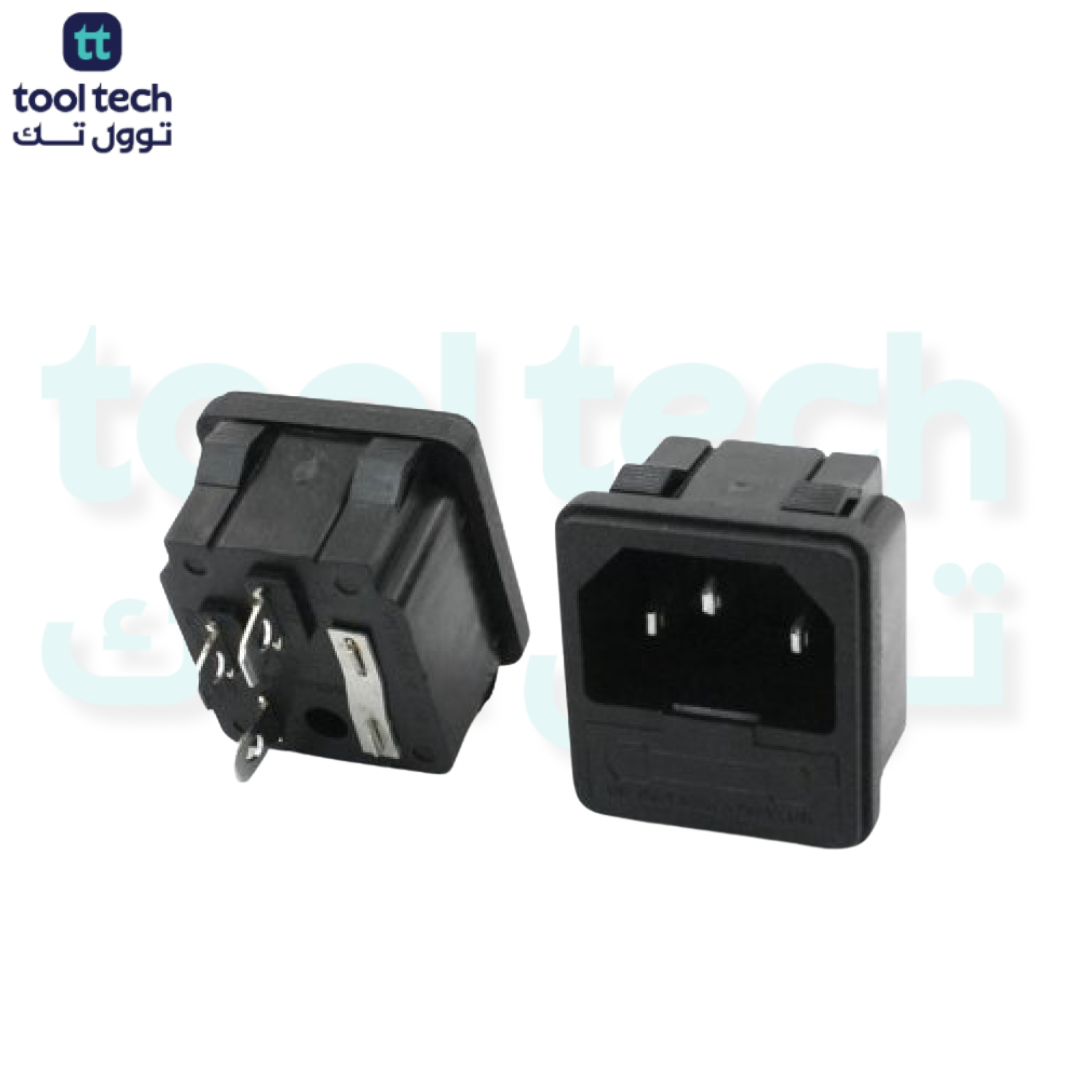

2-in-1 Panel Mount AC Inlet Power Socket with Rocker Switch (Model: IN8)
Product Overview
The IN8 Panel Mount AC Inlet Power Socket is a commercial-grade, streamlined electrical interface component engineered to serve as an integrated primary alternating current (AC) entry hub for electronics enclosures, machinery, and instrumentation panels. This specialized inlet seamlessly unifies a standard 3-pin grounded AC socket and a heavy-duty mechanical rocker switch into a single, space-saving footprint. By condensing power entry and systemic main switching control into one unit, it eliminates messy internal panel wire runs, reduces assembly labor costs, and maintains a clean exterior aesthetic.
The IN8 model features a unique structural configuration (Model: IN8 variant geometry) designed without an integrated fuse holder, making it the perfect choice for systems that utilize dedicated internal circuit breakers or centralized power distribution defense. Molded from high-density, flame-retardant engineering thermoplastic, it features thick structural walls designed to absorb repeated insertion impacts. Equipped with premium copper-alloy solder lugs, this module guarantees low contact resistance and total hardware reliability under continuous high-load operations.
Key Features
-
Streamlined 2-in-1 Power Entry Module: Seamlessly integrates an AC power socket and a mechanical ON/OFF rocker switch within a single structural shell (Model: IN8), optimizing panel density in slim enclosures.
-
Heavy-Duty Rocker Switch Control: Outfitted with a premium mechanical rocker switch that provides snappy, positive tactile feedback and is rated for high-inrush current profiles typical of switching power supplies.
-
Flame-Retardant Engineered Polymeric Shell: Molded from premium, non-conductive polymer that provides total high-voltage electrical isolation and strictly resists deformation under high continuous-load conditions.
-
High-Conductivity Copper Solder Tabs: Outfitted with robust, silver-plated rear metal pins that ensure rapid heat dissipation during manual soldering cycles and stable low-resistance operation.
-
Explicit Grounded Circuit Safety: Features clear internal terminal layouts for Phase/Line (L), Neutral (N), and a dedicated Safety Ground (E) pin to guarantee complete shock protection and safe chassis implementation.
Technical Specifications
| Parameter | Specification |
| Component Type | 2-in-1 Switched Panel Mount AC Power Inlet (Non-Fused) |
| Model Number / SN | IN8 |
| Switch Configuration | SPST or DPST Heavy-Duty Rocker Switch (Model Variant Dependent) |
| Termination Style | Rear Metal Solder Lugs / Quick-Disconnect Tabs |
| Housing Material | High-Impact, Flame-Retardant Nylon / Polycarbonate (UL 94V-0 Rated) |
| Internal Pins & Contacts | Solid High-Conductivity Brass / Copper Alloy, Silver-Plated |
| Rated Operating Voltage | 110V – 250V AC Max |
| Rated Current Load | 10A – 15A Continuous Max (Subject to final wiring gauge variables) |
| Insulation Resistance | $\ge 100\,\text{M}\Omega$ at 500V DC |
| Dielectric Strength | 2000V AC for 1 Minute between pins and housing baseline |
| Operating Temperature | $-25^\circ\text{C}$ to $+85^\circ\text{C}$ |
Applications
The ideal power control gateway for high-density project boxes, custom desktop equipment, and industrial panels:
-
Switched Enclosure Power Entries: Serving as the central input hub with an integrated main power switch on CNC control boxes, 3D printer chassis, and custom electronic audio amplifier panels where external fusing is already provided.
-
Laboratory & Bench Equipment Integration: Providing a professional, flush-mount power command node for high-precision switching DC power supplies, load testing arrays, and diagnostic racks.
-
Industrial Automation Hubs: Acting as the primary isolated mains connection and manual disconnect point feeding localized low-voltage step-down transformers, microcontrollers, and relay banks.
-
Custom Prototyping Workshop Boxes: Perfect for building custom power distribution rails, specialized workspace extension boxes, and automated hardware validation jigs requiring independent switching control.
