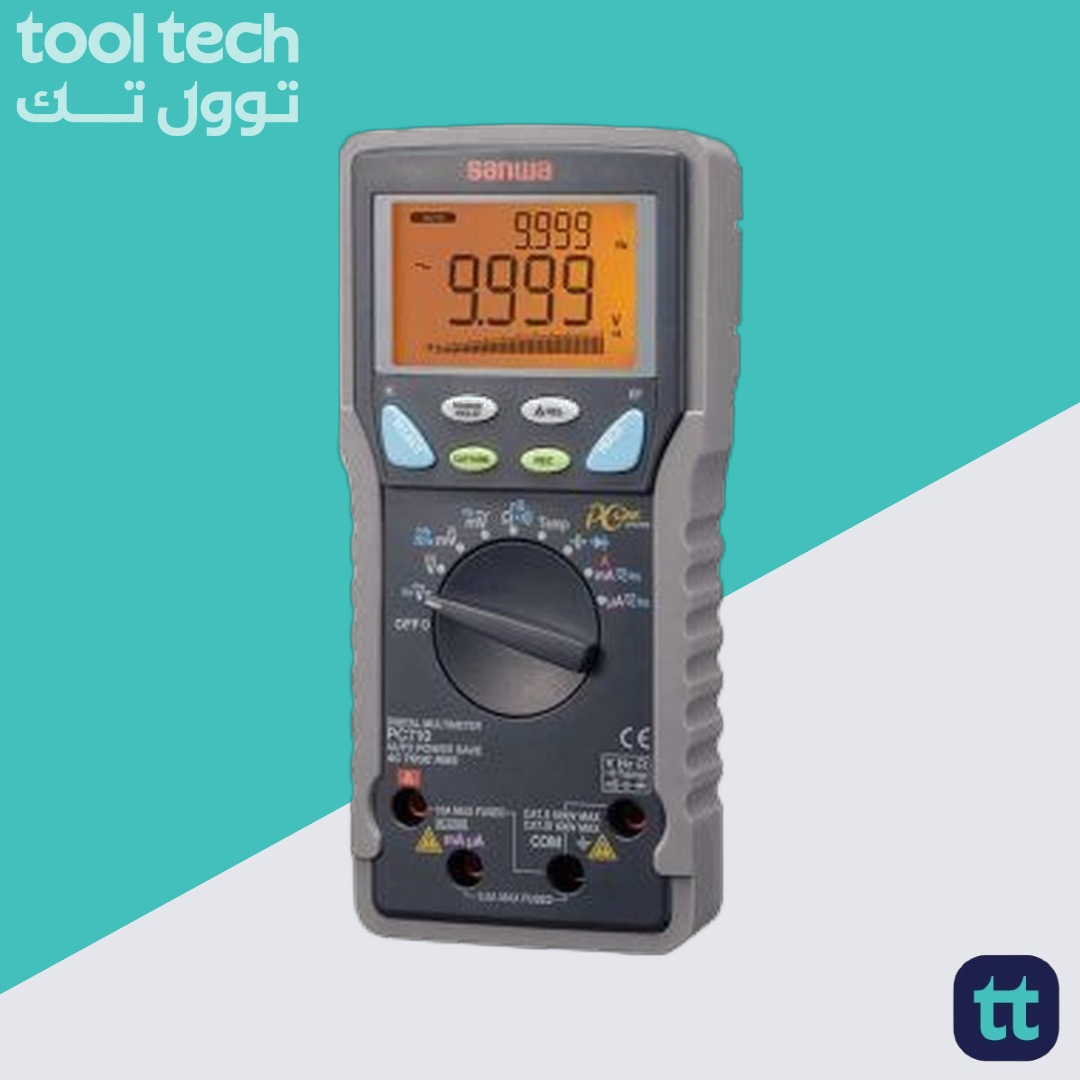

Sanwa PC710 Digital Multimeter with Dual Display
The Sanwa PC710 Digital Multimeter with Dual Display is a compact, handheld digital multimeter engineered for versatile electrical diagnostics in both field and workshop settings. Housed in a robust, protective holster with a built‑in tilt stand, it features a large dual LCD that simultaneously displays primary measurements (voltage or current) alongside their frequency or AC/DC components, enhancing visibility and efficiency. Its True‑RMS circuitry ensures accurate readings across a broad array of waveform types, from pure sine waves to distorted signals and pulses. A fast‑response analog bar graph (60 updates/sec) complements the numeric display (5 updates/sec), aiding in dynamic measurements and peak capture.
The unit’s auto‑ranging capability simplifies operation across voltage, current, resistance, capacitance, and temperature functions (–50 ℃ to 1000 ℃ via included K‑type thermocouple), while manual-ranging and data‑hold features offer user control in complex testing scenarios. Innovative electric‑field detection modes (non‑contact and probe contact) assist in locating live conductors and identifying wiring faults without circuit disconnection.
Additional recording modes (Crest Capture, MAX/MIN/AVG) and relative measurement expand its analytical utility. An optical USB interface (with optional KB‑USB7 adapter and PCLink7 software) enables real‑time data logging and analysis on a PC. Designed to IEC 61010 CAT III 600 V/CAT II 1000 V safety standards, the PC710 balances ruggedness, accuracy, and functionality for professionals and enthusiasts alike.
Features:
• Compliant with IEC 61010‑1 CAT III 600 V and CAT II 1000 V with high‑capacity fuses.
• 9999‑count main display (ACV, DCV, Hz, nS) and 6000‑count sub‑display (other functions).
• Fast response: numeric 5 times/s, bar graph 60 times/s.
• Dual display of measurement & frequency or AC/DC components.
• True RMS detection for AC measurements.
• 0.01 mV resolution on DC/AC voltage.
• Wide capacitance range (0.01 nF–25.00 mF).
• Electric‑field detection (non‑contact and probe contact).
• Crest Capture (1 ms sampling) & MAX/MIN/AVG recording modes.
• Relative and data‑hold functions.
• Backlight for low‑light environments.
• Temperature measurement via included K‑type thermocouple (–50 ℃ to 1000 ℃).
• PCLink7 compatibility via optical USB interface (KB‑USB7).
Specifications:
| Parameter | Value |
|---|---|
| Display Counts: | 9999 (primary), 6000 (secondary) |
| Voltage Ranges: | DC/AC: 60 mV–999.9 V (auto/manual) |
| Current Ranges: | μA/mA: 600 μA–600 mA; A: 6 A/10 A |
| Resistance: | 600 Ω–60.00 MΩ |
| Capacitance: | 60.00 nF–25.00 mF |
| Frequency: | 15 Hz–50 kHz (voltage); 5 Hz–1 MHz (logic) |
| Temperature: | –50 ℃ to 1000 ℃ (K‑type thermocouple) |
| Accuracy (Best): | DCV: ±0.06 %+2 dgt; ACA: ±0.6 %+3 dgt; Ω: ±0.1 %+3 dgt |
| Input Impedance: | 10 MΩ (80 pF) |
| Safety: | IEC 61010‑1 CAT III 600 V / CAT II 1000 V |
| Power: | 1×9 V battery (6LR61); Auto‑power save 30 min |
| Dimensions / Mass: | 184×86×52 mm (with holster) / 430 g |
Applications:
- Light Electric Circuit Measurement.
- Small Communication Equipment Testing.
- Home Appliance Diagnostics.
- Wall‑Socket Output Verification.
- Battery Voltage Assessment.
- Circuit Analysis with Advanced Functions.
Package Contents:
- 1x Test Leads TL‑23a
- 1x Holster H‑700 with Light Shielding Magnet Cap
- 1x K‑type Thermocouple K‑250PC
- 1x Instruction Manual
