Pin Terminal Insulated (1.5mm)

Description

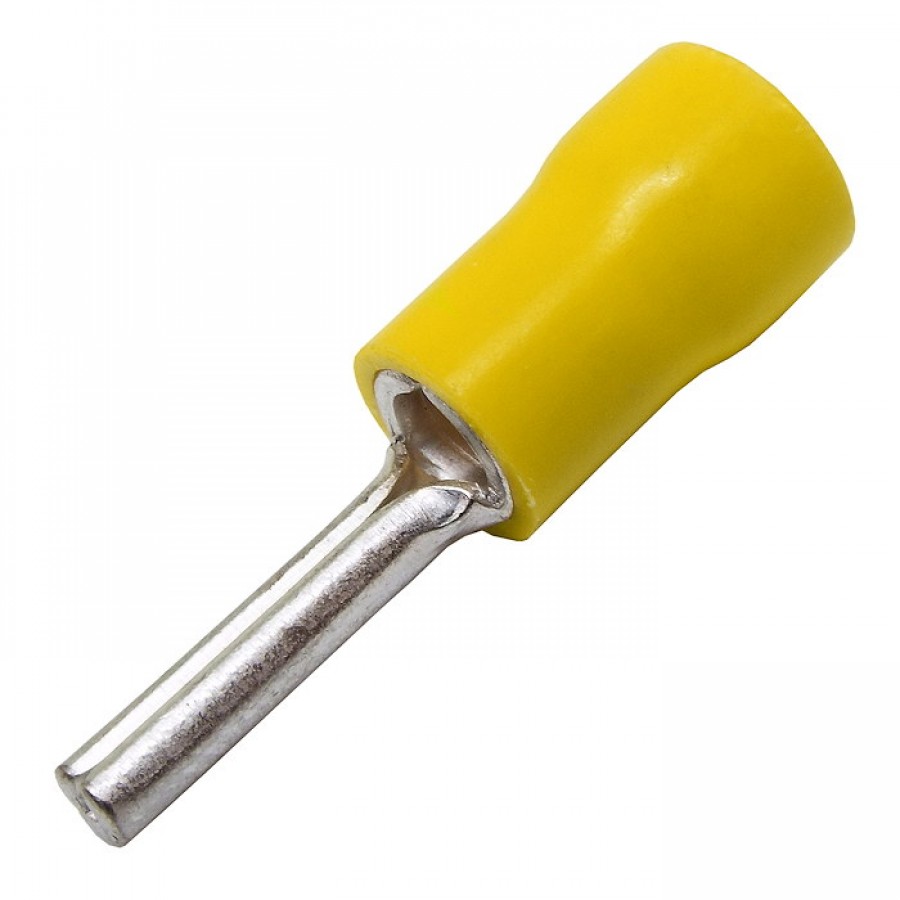

Insulated Pin Terminal Crimp Connector (1.5mm)

Product Overview

The Insulated 1.5mm Pin Terminal (commonly referred to as a wire pin or solid pin crimp connector) is engineered to terminate stranded wires securely for insertion into compression-type terminal blocks, electronic screw clamps, and European-style terminal strips. Featuring a solid, high-conductivity copper or brass pin wrapped in a rigid vinyl (PVC) insulation sleeve, this terminal condenses loose wire strands into a solid, robust pin.

By eliminating frayed or loose wire strands, it prevents accidental short-circuits between closely spaced terminals and ensures maximum electrical contact area within tight terminal blocks.

Key Features

• Solid Pin Interface: Transforms stranded wire into a smooth, solid pin profile, allowing effortless insertion into terminal blocks without damaging fragile copper strands.

• Flared Insulation Barrel Entry: Designed with a funnel-shaped internal sleeve that guides multi-strand conductor wires straight into the crimping core, preventing wire strand flare-out.

• Internal Wire-Lock Serrations: The interior of the metal barrel features structural micro-grooves that bite into wire strands upon crimping, ensuring excellent tensile pull-out strength and high conductivity.

• Compact Contact Design: The 1.5mm pin width is optimized for small-footprint control modules and high-density industrial terminal strips where space is strictly limited.

Technical Specifications

Applications

The ideal termination standard for high-density, multi-position terminal block interfaces:

• Industrial Control Blocks: Connecting PLC I/O modules, automation panels, and multi-position DIN-rail terminal strips.

• HVAC Systems & Relays: Fast, clean termination of sensor and low-voltage control lines into compact screw-clamp relays.

• DIY Industrial Hardware: Integrating solid wire connections inside packed control modules, diagnostic test benches, and structural project boxes.

• Power Management Setup: Terminating monitoring leads, signal triggers, or low-current lines cleanly on variable bench power systems.
