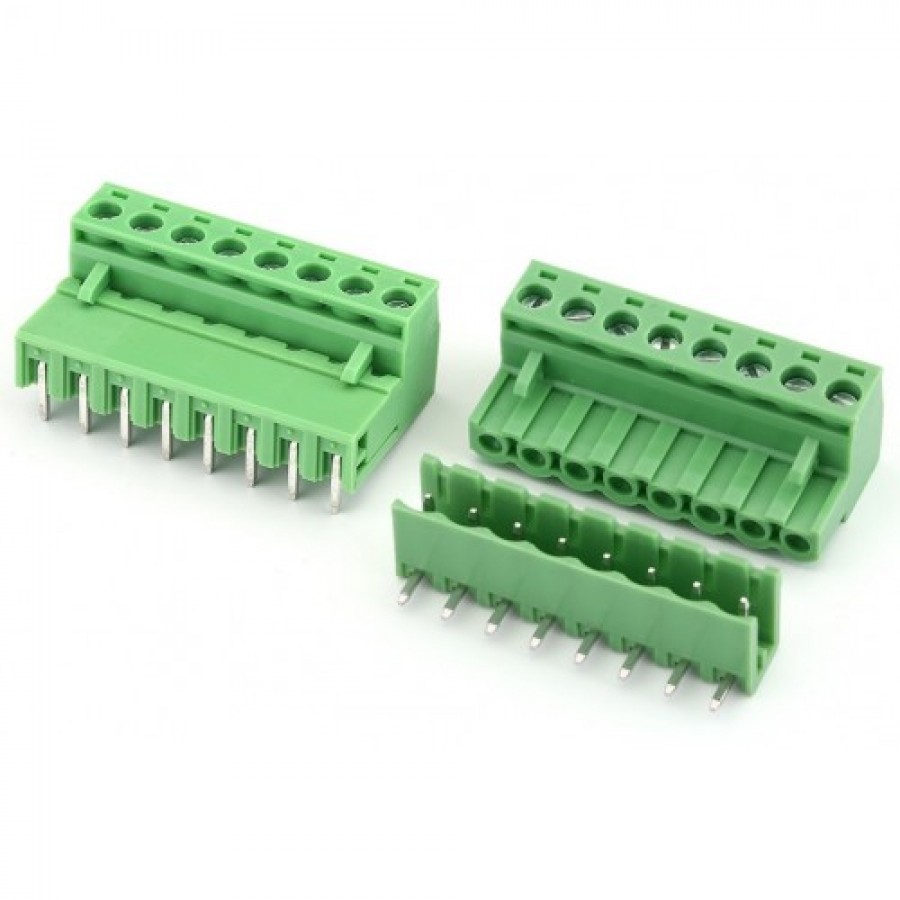

8-Pin Pluggable Terminal Block Connector (Pitch: 5.08mm)
Product Overview
The 8-Pin Pluggable Terminal Block Connector Set is a high-reliability modular interface engineered for efficient wire-to-board power and signal routing across diverse electronic applications. The system consists of an 8-position female plug with rugged screw-clamp terminations and a matching 8-position male header designed for through-hole soldering onto printed circuit boards (PCBs).
This pluggable design allows technicians and developers to connect or disconnect an entire 8-line wiring harness instantly without altering individual screw joints. It significantly minimizes downtime during field maintenance, system upgrades, or diagnostic swaps. Molded from flame-retardant polyamide, it ensures optimal mechanical strength and high dielectric isolation across standard electronics arrays.
Key Features
-
Time-Saving Pluggable Interface: Enables rapid connect and disconnect functionality for 8 distinct electrical lines simultaneously, streamlining hardware assembly and field maintenance.
-
Heavy-Duty Rising Cage Clamp: Internal nickel-plated brass cage clamps exert even, high-torque pressure across the wire profile, ensuring low contact resistance without tearing fine copper strands.
-
Polarized Keying Alignment: The housing geometries of the male header and female plug are uniquely polarized to eliminate mis-mating and reverse-polarity errors during quick-disconnect cycles.
-
Industry-Standard 5.08mm Pitch: Features standard $0.2\text{ inch}$ pin spacing, fitting cleanly into standard commercial PCB layouts and industrial breakout board grid footprints.
Technical Specifications
| Parameter | Specification |
| Component Type | Pluggable Terminal Block Set (Male Header + Female Plug) |
| Number of Positions (Poles) | 8 Pins |
| Pitch (Pin Spacing) | 5.08mm ($0.2\text{ inch}$) |
| Orientation | Straight / Vertical or $90^\circ$ Right Angle (Header options available) |
| Termination Style (Plug) | Screw Clamp (Rising Cage Mechanism) |
| Termination Style (Header) | PCB Through-Hole Solder Mount |
| Material (Housing) | Polyamide (PA66), Nylon UL 94V-0 Flame Retardant |
| Material (Contacts) | Phosphor Bronze / Brass, Tin-Plated |
| Screw Material | M2.5 or M3 Steel, Zinc-Plated |
| Rated Voltage | 300V AC/DC |
| Rated Current | 10A – 15A Max (Wire size dependent) |
| Wire Gauge Compatibility | 12 AWG to 24 AWG (Solid or Stranded) |
Applications
The ideal connector solution for multi-channel data routing, automated control links, and centralized power distribution hubs:
-
Industrial Breakout Modules: Serving as the primary interface hub on DIN-rail breakout boards for relays, PLCs, and compact processing units.
-
Multi-Axis Motor Controls: Perfect for managing power, limits, and feedback telemetry lines simultaneously for multiple low-voltage motor drives or actuator systems.
-
8-Channel Analog / Digital Sensor Clusters: Providing a unified, quick-disconnect port for massive sensor routing configurations requiring multi-point data collection.
-
Microcontroller Prototyping Arrays: Serving as clean, high-reliability I/O port modules on custom development shields, automated hardware testing rigs, and custom PCB projects.
