Description

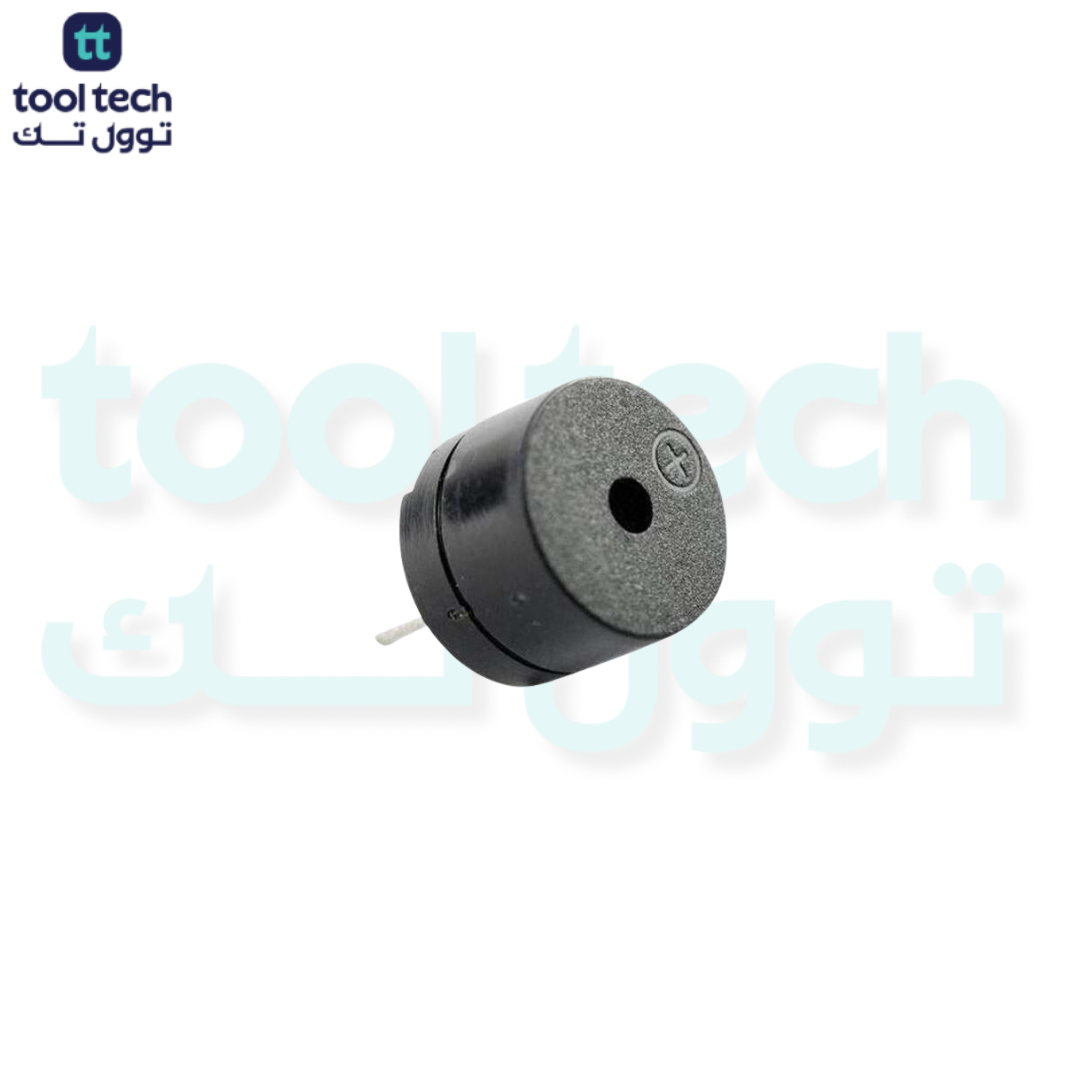

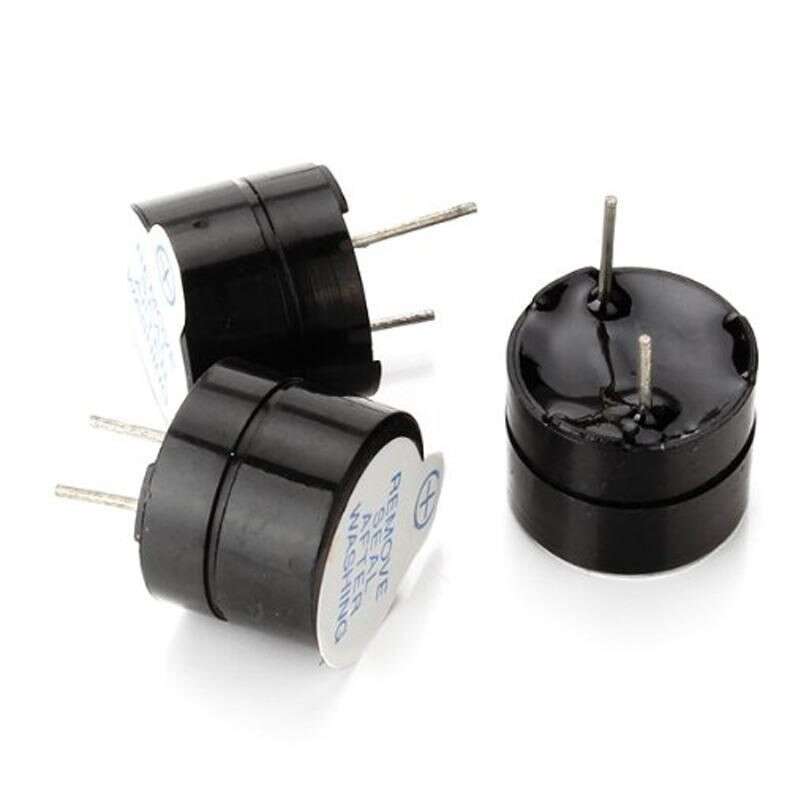

Buzzer with continuous tone generator and a diameter of 12 mm and a voltage of 12 V.
The Magnetic Buzzer 12V 12mm 2 Pin is a compact, internally driven audio signaling device designed for through-hole mounting. Operating at a rated voltage of 12V DC, it produces a continuous tone at approximately 2,300 Hz with a sound output exceeding 85 dB at 10 cm.
This buzzer is ideal for applications requiring clear and reliable audible alerts, such as home appliances, alarm systems, and automotive electronics. Its small size and low power consumption make it a versatile choice for both hobbyist and professional projects.
Features :
- Built-in Oscillator: Simplifies integration by producing sound with a direct DC power supply.
- Compact Design: 12mm diameter and 9.5mm height, perfect for space-constrained applications.
- High Sound Output: Delivers ≥85 dB at 10 cm for clear audible alerts.
- Wide Temperature Range: Operates reliably from -25°C to +70°C.
- RoHS Compliant: Meets environmental and safety standards for global use.
Specifications :
| Parameter | Value |
|---|---|
| Rated Voltage | 12V DC |
| Sound Output | ≥85 dB at 10 cm |
| Resonant Frequency | 2,300 |
| Tone | Continuous |
| Dimensions | Diameter: 12mm, Height: 9.5mm |
| Weight | 2g |
| Mounting Type | Through Hole |
| Terminal Type | 2 Pins |
| Material | PBT (Black) |
| RoHS Compliance | Yes |
Applications :
- Home Appliances: Provides alerts in microwaves, washing machines, and refrigerators for status notifications.
- Alarm Systems: Integrated into security systems for audible warnings in case of intrusions or emergencies.
- Toys and Games: Adds sound effects or alerts to enhance user interaction in electronic toys.
- Industrial Equipment: Used in machinery like CNC machines and printers for status or error notifications.
- Automotive Alerts: Employed in vehicles for seatbelt reminders, door-open warnings, or key-in-ignition alerts.
