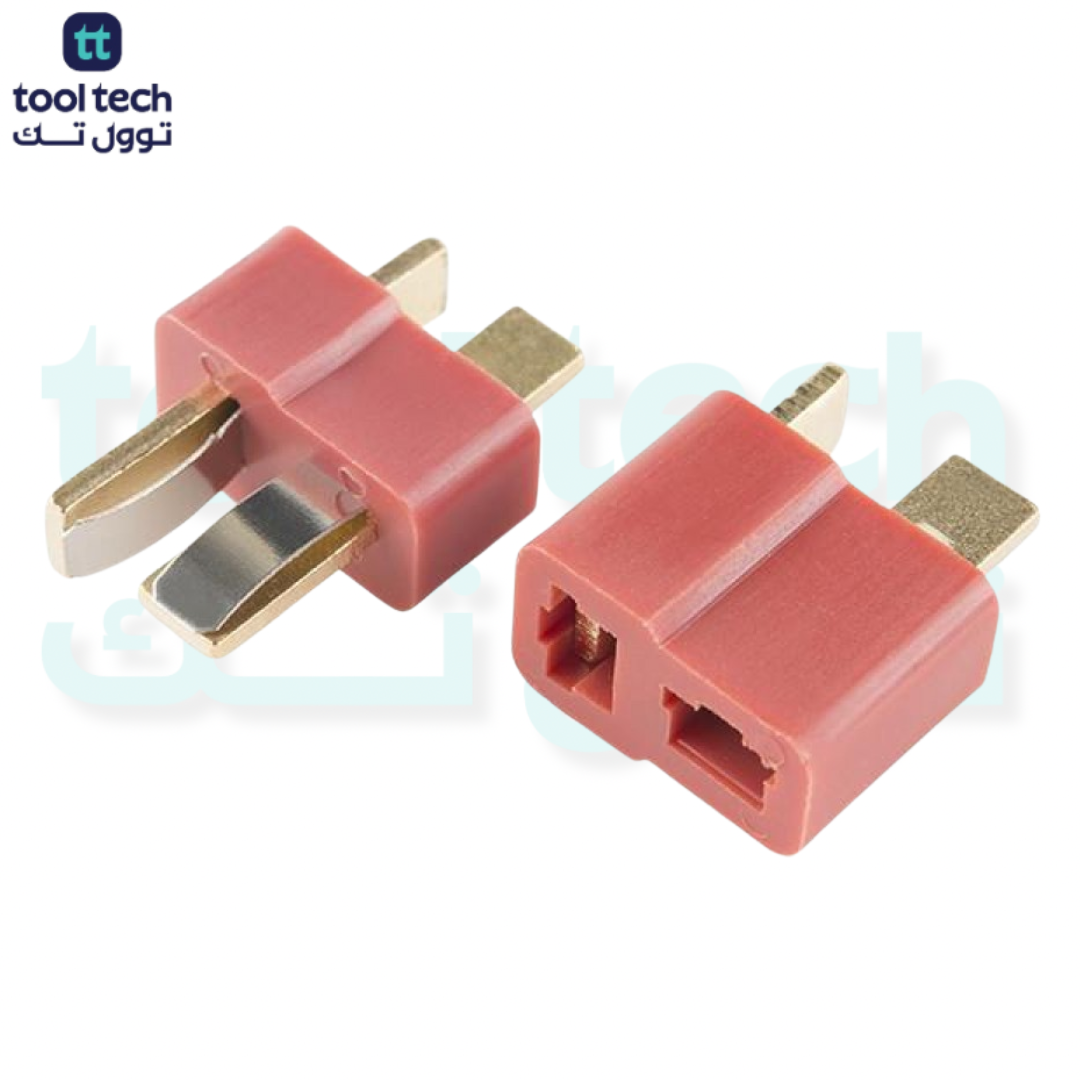

T-Type Male & Female High-Current Power Connector Pair (Deans Style)
Product Overview
The Standard T-Type Power Connector Pair is a heavy-duty, high-efficiency polarization plug set engineered to deliver reliable DC power in demanding, high-current electrical systems. Featuring a unique perpendicular “T” orientation blade layout, this connector pair provides an absolute physical foolproof mechanism against reverse polarity mistakes, completely safeguarding sensitive downstream circuit boards, speed controllers, and battery modules from catastrophic short circuits.
This matched set includes one male plug and one female socket, optimized for high-discharge battery packs, heavy-duty DC motors, and power distribution links. Constructed with premium gold-plated copper leaf-spring contacts enclosed in a rugged, high-temperature structural polymer housing, it handles sustained high currents with minimal thermal buildup or voltage drops, ensuring a secure, vibration-proof connection under heavy operational stress.
Key Features
-
Absolute Reverse-Polarity Safeguard: The structural “T” layout features one contact blade running perpendicular to the other, entirely preventing accidental backward connection or cross-pin shorting.
-
Ultra-Low Internal Resistance: Equipped with heavy gold-plated copper alloy contact surfaces that minimize internal power loss, maximizing efficiency during sustained high-amp discharges.
-
Firm Spring-Tension Connection: The male pins feature high-elasticity integrated leaf springs that press firmly against the internal walls of the female socket, maintaining a reliable connection against heavy physical vibration.
-
High-Temperature Structural Shell: Molded from premium, impact-resistant engineering polymer capable of withstanding heavy soldering iron heat without melting or causing internal pin misalignment.
-
Textured Non-Slip Grip Panels: Fabricated with fine outer ribbing on the connector body, providing technicians with an ergonomic, non-slip gripping surface for rapid, effortless connection cycles.
Technical Specifications
| Parameter | Specification |
| Component Type | Standard T-Type / Deans Compatible Power Connector Pair |
| Connector Configuration | Set Includes: 1x Male Plug + 1x Female Socket |
| Pin Configuration (Poles) | 2 Pins (Positive and Negative DC Paths) |
| Pin Layout | Perpendicular “T” Shape Polarization Interface |
| Termination Style | Heavy-Duty Rear Solder Tabs (Exposed Backing) |
| Material (Housing) | High-Temperature Nylon / PA66 (Flame Retardant) |
| Material (Contacts) | High-Conductivity Copper Alloy, Heavy Gold-Plating |
| Rated Continuous Current | 30A – 40A Max (Depending on wire gauge utilized) |
| Rated Peak Current | 50A to 60A Burst Max |
| Operational Voltage | Up to 500V DC Max |
| Mating Durability | $\ge 2000$ Insertion/Extraction Cycles |
| Compatible Wire Gauge | 12 AWG to 16 AWG (Solder tab dimension optimized) |
Applications
The industry-standard power junction for high-discharge battery systems, robotics, and industrial distribution units:
-
High-Capacity Battery Pack Interfacing: Serving as the primary high-efficiency discharge terminal for custom lithium-polymer (LiPo) cells, high-current battery packs, and heavy-duty Battery Management Systems (BMS).
-
Industrial Automation & Robotics: Perfect for routing primary battery lines into heavy DC motor drivers, high-torque actuators, and core power regulation panels.
-
RC & Drone Power Plants: Widely utilized to establish swappable, low-loss connections for main distribution boards, high-power Electronic Speed Controllers (ESCs), and high-draw brushless motor systems.
-
Enclosed Hardware Power Distribution: Providing a clean, reliable, and easily disconnectable internal wiring junction inside heavy-duty DIY control boxes, test benches, and modular electronic setups.
