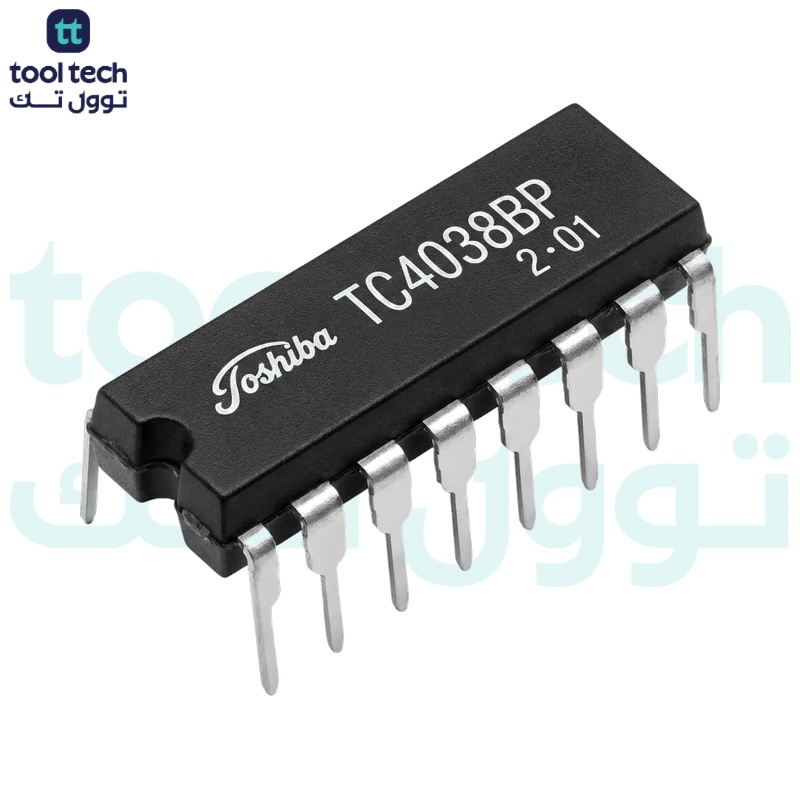

Toshiba TC4038BP DIP-16 IC

Description

Toshiba TC4038BP
DIP-16 IC

The TC4038BP is a high-performance C2MOS silicon monolithic digital integrated circuit designed as a Triple Serial Adder. This IC contains three independent adder circuits that share a common CLOCK input and CARRY RESET input. Specifically configured as a Negative Logic Adder, it is optimized for digital systems requiring serial arithmetic operations.

✅Features

Triple Adder Configuration

Falling Edge Triggering

Flexible Logic Modes

Wide Operating Range

High Speed

📜📚Specifications

Characteristic

Symbol

Value / Range

Unit

DC Supply Voltage

V
DD

3.0 to 18.0 (Recommended)

V

Input Voltage

V
IN

0 to V
DD

V

Power Dissipation

P
D

300

mW

Operating Temperature

T
A

-40 to 85

°C

Max Clock Frequency (Typ. @ 10V)

f
CL

10

MHz

Propagation Delay (Clock to Sum, Typ. @ 10V)

t
pLH
/ t
pHL

95

ns

Input Capacitance

C
IN

5.0 (Typ.)

pF

Package Weight

–

1.0

g

💻Applications

Serial Arithmetic Units

Digital Signal Processing

Synchronous Logic Systems

🎁Package Content

1 x Toshiba TC4038BP DIP-16 IC

📖DataSheet

TC4038BP
