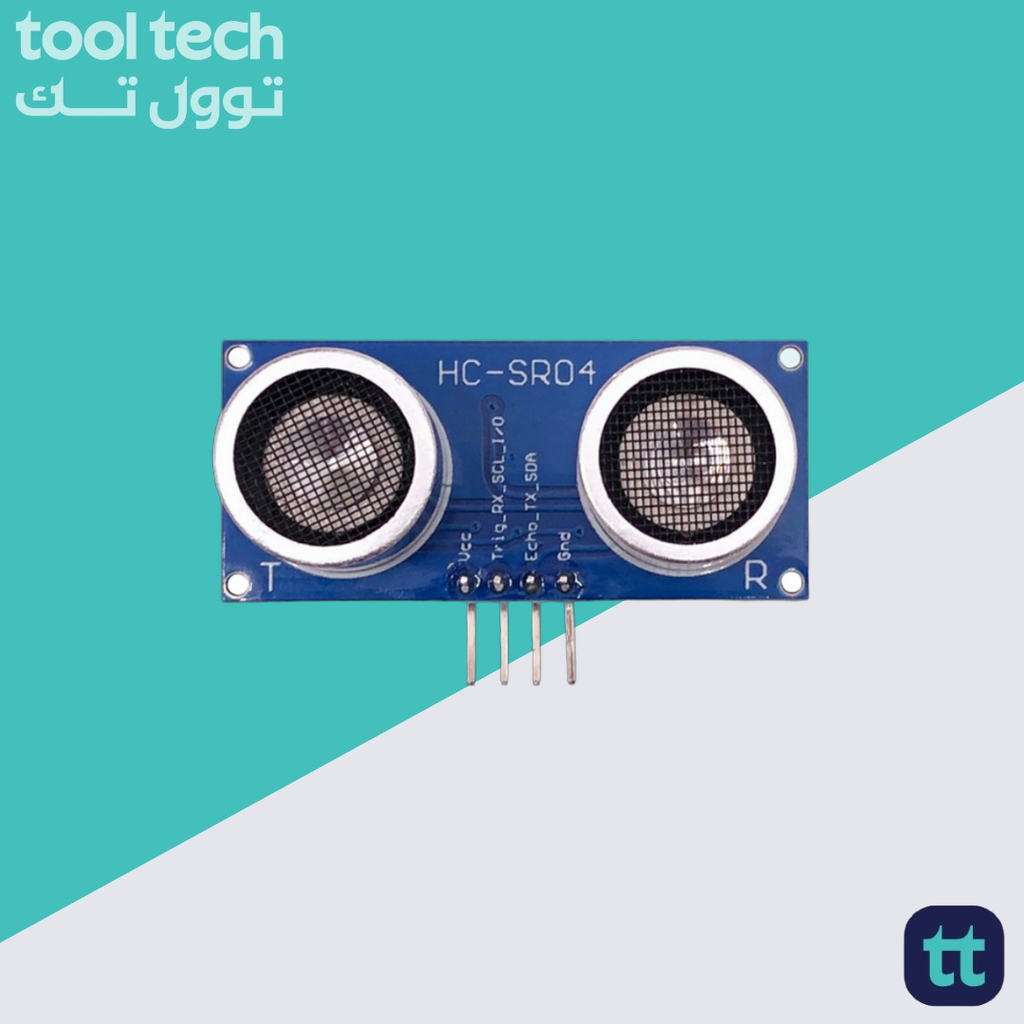

ULTRASONIC HC-SR04

Description

Description

The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object. This sensor reads from 2cm to 400cm (0.8inch to 157inch) with an accuracy of 0.3cm (0.1inches), which is good for most hobbyist projects. In addition, this particular module comes with ultrasonic transmitter and receiver modules.

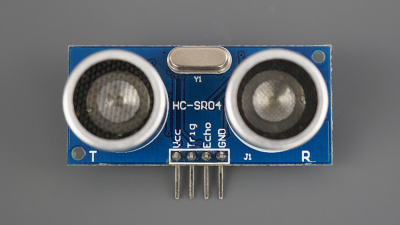

The following picture shows the HC-SR04 ultrasonic sensor.

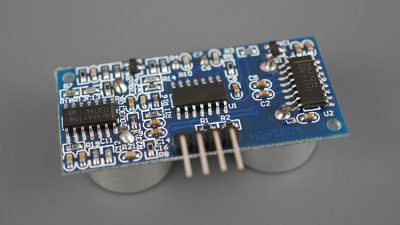

The next picture shows the other side of the sensor.

Features

Here’s a list of some of the HC-SR04 ultrasonic sensor features and specs—for more information, you should consult the sensor’s datasheet:

• Power Supply :+5V DC
• Quiescent Current : <2mA
• Working Current: 15mA
• Effectual Angle: <15°
• Ranging Distance : 2cm – 400 cm/1″ – 13ft
• Resolution : 0.3 cm
• Measuring Angle: 30 degree
• Trigger Input Pulse width: 10uS TTL pulse
• Echo Output Signal: TTL pulse proportional to the distance range
• Dimension: 45mm x 20mm x 15mm

How Does it Work?

The ultrasonic sensor uses sonar to determine the distance to an object. Here’s what happens:

1. The ultrasound transmitter (trig pin) emits a high-frequency sound (40 kHz).
2. The sound travels through the air. If it finds an object, it bounces back to the module.
3. The ultrasound receiver (echo pin) receives the reflected sound (echo).

The time between the transmission and reception of the signal allows us to calculate the distance to an object. This is possible because we know the sound’s velocity in the air. Here’s the formula:

distance to an object = ((speed of sound in the air)*time)/2

• speed of sound in the air at 20ºC (68ºF) = 343m/s
