Description

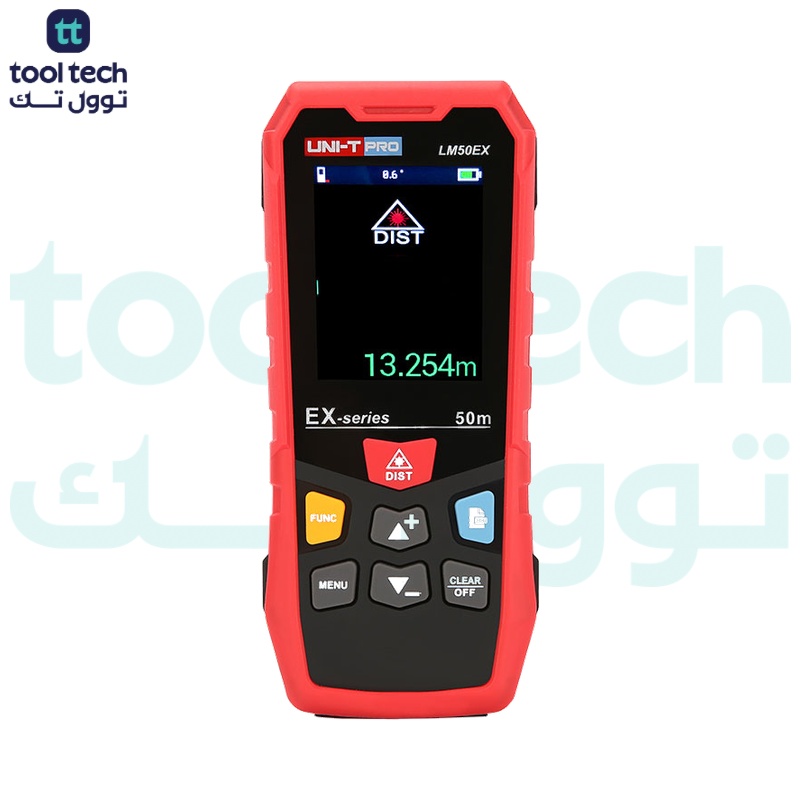

UNI-T LM50EX Laser Distance Meter (up to 50 meter)
The UNI-T LM50EX Laser Distance Meter is engineered as a high-accuracy measuring instrument designed to simplify distance measurement for construction professionals, designers, and field technicians. Built to support precise distance measurement up to 50 meters, this device replaces traditional measuring tapes and reduces measurement errors, especially in larger spaces or areas difficult to access. Its robust performance and trusted accuracy make it suitable for everyday use on job sites or detailed planning tasks.
With a large color display and a carefully arranged interface, the LM50EX provides a clear and intuitive user experience. Real-time feedback on measurements ensures users can confirm results instantly, and its rugged design stands up to regular field operation. The device also supports multiple reference points for measurement, giving flexibility in choosing the front, middle, or rear of the unit as a base reference.
Although discontinued, the LM50EX was designed with durability in mind: it supports dust and water resistance and can survive moderate drops, making it reliable in harsh construction or outdoor environments. These qualities combined with its advanced measurement tools make it a dependable choice for professionals who require fast and accurate distance information without the complexity of more advanced surveying instruments.
Features:
- Large color EBTN display for easy reading.
- Measures distances up to 50 m.
- Supports 9 measurement modes.
- 3 selectable reference points (front/middle/rear).
- Electronic and auto leveling (horizontal/vertical).
- USB charging support.
- IP65 dust and water proof rating.
- Rotatable screen for flexible viewing.
- Tripod mounting hole.
- Smart auto power/laser/backlight control.
Specifications:
| Specification | LM50EX |
|---|---|
| Display type: | Color EBTN |
| Display size: | 2.4 inches |
| Maximum range: | 50 m |
| Minimum display unit: | 0.001 m |
| Measurement units: | m/ft/in |
| Measurement reference: | Front / Middle / Rear |
| Accuracy: | ±2 mm |
| Laser class: | Class 2 |
| Laser wavelength: | 630 – 670 nm, <1 mW |
| Measurement modes: | 9 modes |
| USB charging: | Yes |
| Rotatable screen: | Yes |
| Tripod mount: | Yes |
| Environmental: | IP65 dust/water proof |
| Drop resistance: | 2 m |
| Data storage: | 20 groups |
| Auto power off: | Yes |
Applications:
- Building distance measurement.
- Interior / exterior layout measurement.
- Construction site planning.
- Architectural verification and inspection.
- Volume and area estimation for projects.
Package Contents:
- 1x Main unit LM50EX Laser Distance Meter.
- 1x USB cable (for power/charging).
- 1x Carrying case / pouch protective case.
- 1x User manual / instructions guide booklet.
- 1x Wrist strap hand strap.
