Name: UNI-T UT122 Smart Digital Multimeter
SKU: UT122
Availability: InStock

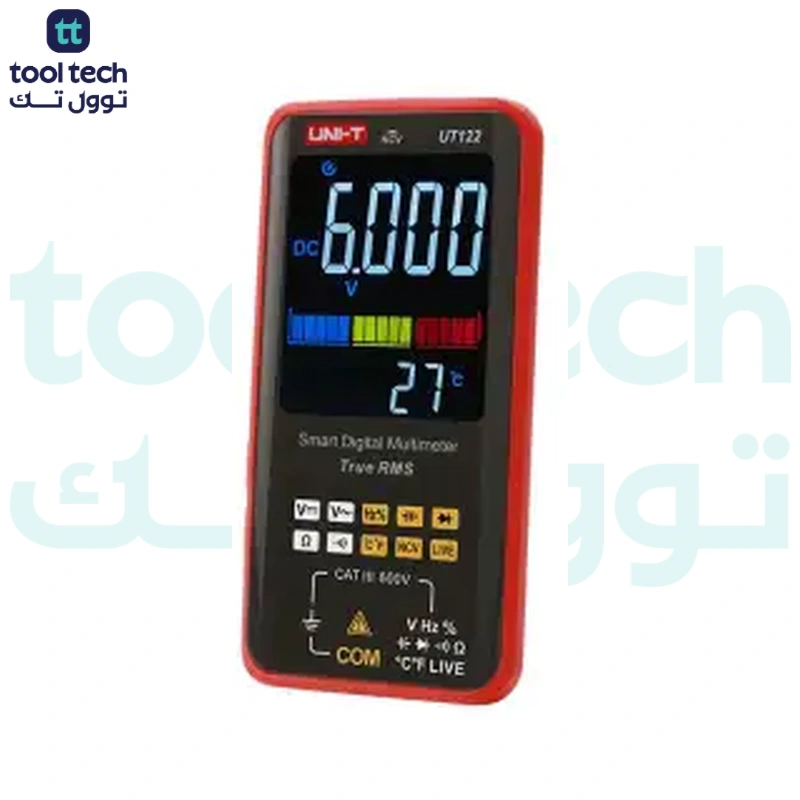

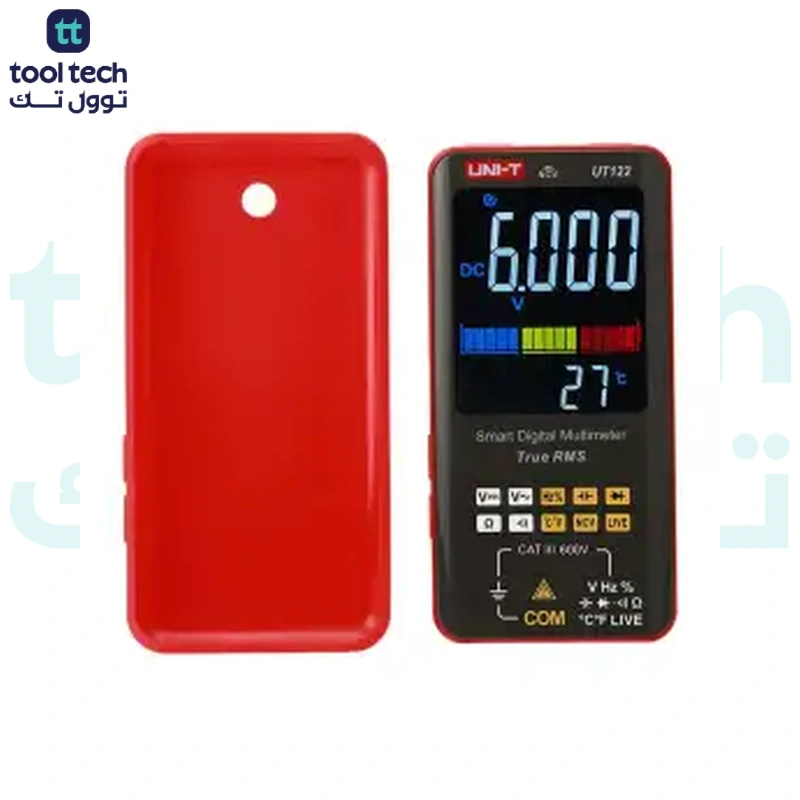

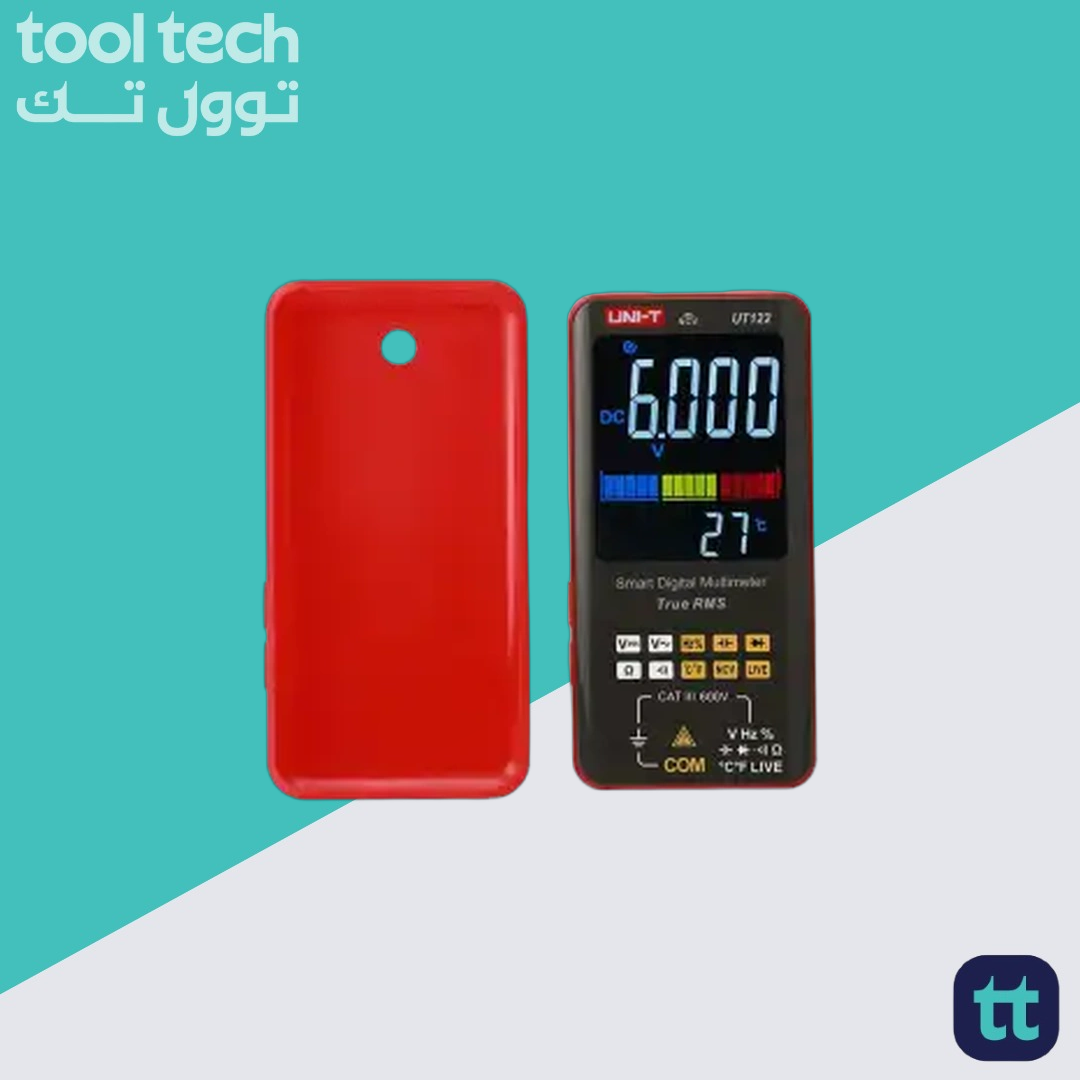

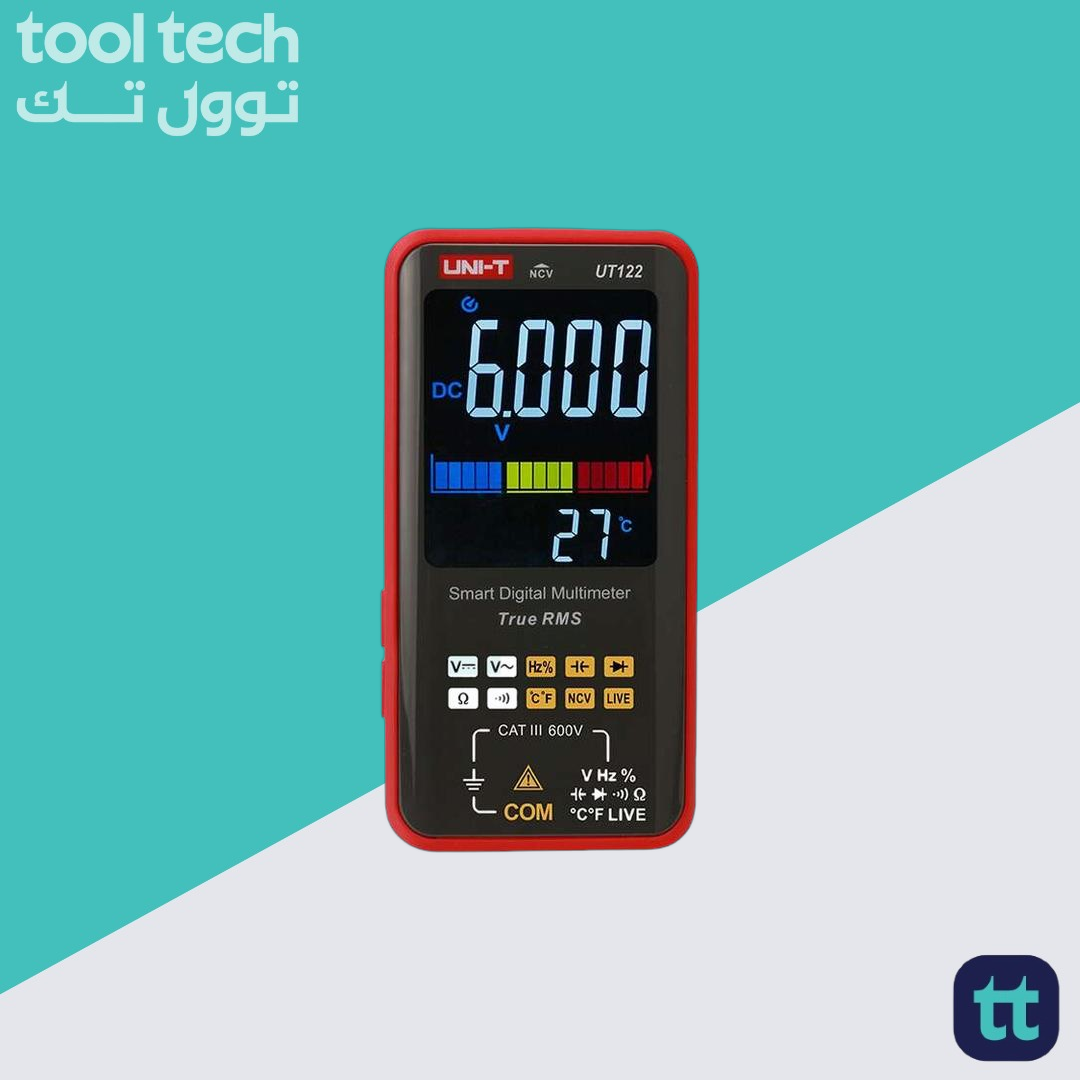

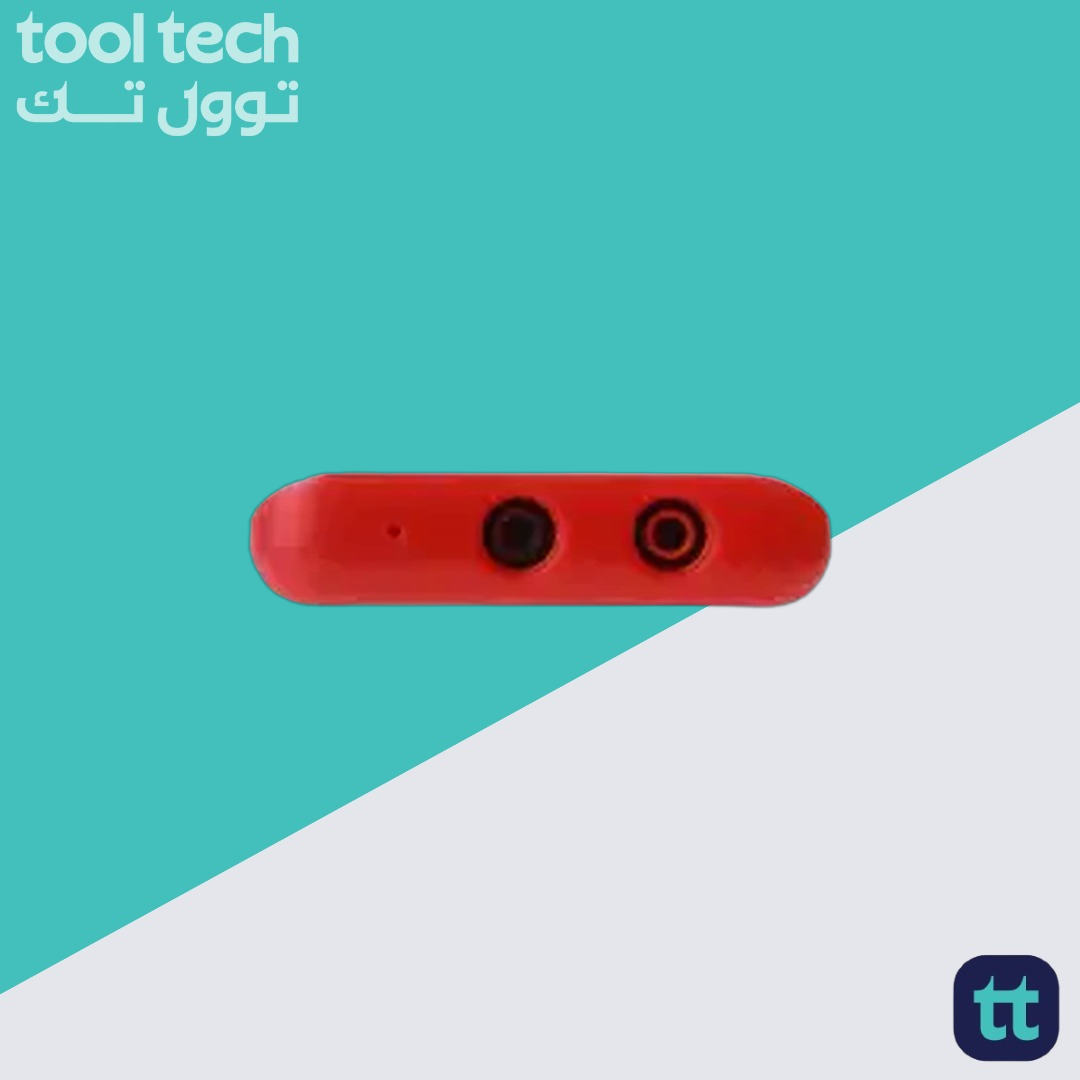

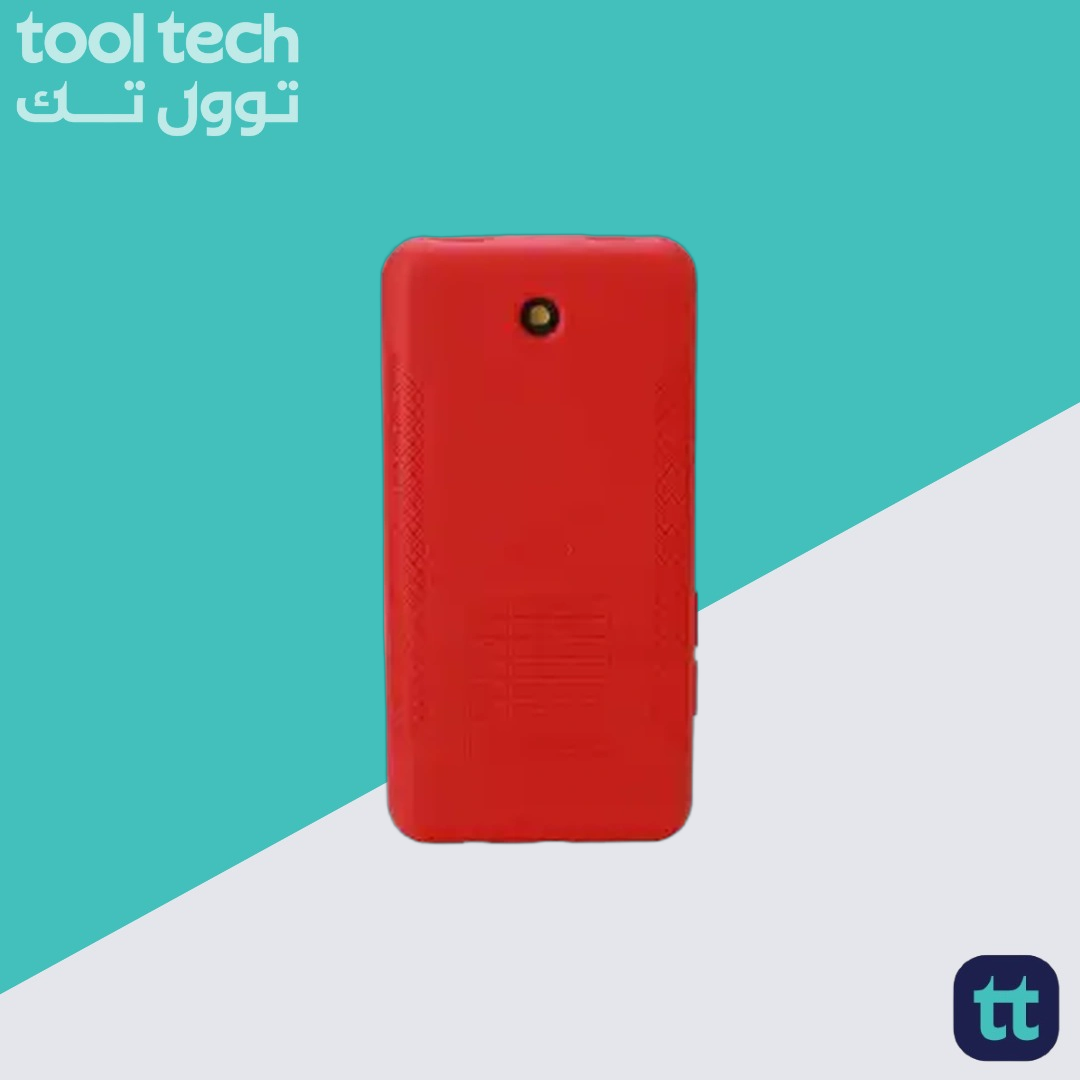

UNI-T UT122 Smart Digital Multimeter

UNI-T UT122 Smart Digital Multimeter with auto range, large LCD display, and multiple measurement capabilities for precise electrical and electronic testing.

Description

The UNI-T UT122 Smart Digital Multimeter is a versatile and reliable tool designed for both professionals and DIY enthusiasts. Featuring a clear digital display, this multimeter allows for easy measurement of voltage, current, and resistance, making it suitable for a wide range of electrical tasks. Its compact design ensures portability, while the user-friendly interface simplifies operation, even for those new to electrical testing. Built with durability in mind, the UNI-T UT122 is an essential addition to any toolbox, providing accurate readings and dependable performance for various applications.

UNI-T UT122 Smart Digital Multimeter

UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.

Features:

True RMS
AC/DC 600V voltage measurement
60MΩ large resistance measurement
99mF large capacitance measurement
Built-in rechargeable lithium battery, Type-C charging
Temperature measurement
Full-scale input protection
NCV/LIVE measurement
Large-size LCD screen
19mm ultra-thin body
6000counts
Intelligent identification gear

Specifications:

Specifications	Range	UT122
AC voltage (V):	6.000V/60.00V/600.0V	±(1.0%+3)
AC voltage frequency (Hz):	10Hz-1kHz	±(0.5%+2)
DC voltage (V):	6.000V/60.00V/600.0V	±(0.5%+3)
Resistance (Ω):	600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ	±(2.0%+5)
Capacitance (F):	99.99nF/999.9nF～9.999μF/9.999mF～99.99mF	10%
Frequency (Hz):	10.00Hz-10.00MHz	±(0.1%+3)
Temperature(℃/℉):	–40℃～1000℃/–40°F～1832°F	±3℃/±6℉
Features
Display count:		6199
Dual display:		√
Auto range:		√
NCV detection:		√
LIVE detection:		√
Diode test:		√
Continuity buzzer:		√
LCD high voltage alert:		√
Flashlight:		√
Low battery indication:		√
Auto power off:		√
Data hold:		√
Category ratings:		CATⅢ 600V
General Characteristics
Power:	2*1.5V AAA
Display:	UT122: 65*55mm
Product size:	UT122: 1447115.5mm

Applications:

Package Contents:

1x UNI-T UT122 Smart Digital Multimeter
1x 3.7 V Li-ion rechargeable battery
1x Test leads (probe set)
1x Temperature probe
1x USB charging cable
1x Fabric carrying pouch
1x User manual

Documents:

Datasheet
User Manual
