Name: UNI-T UT139S True RMS Digital Multimeter
SKU: UT139S
Availability: InStock

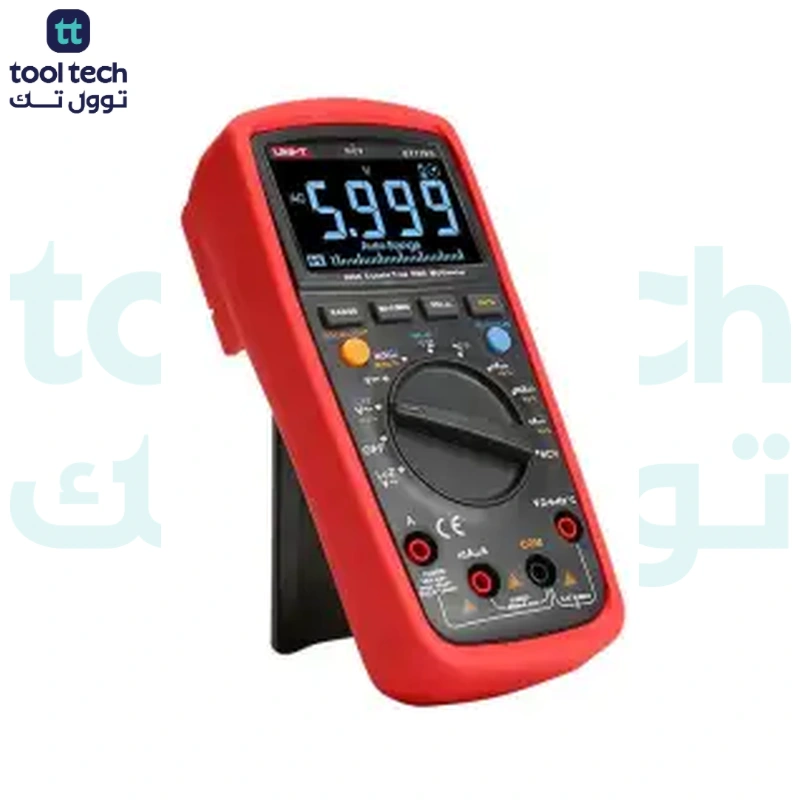

UNI-T UT139S True RMS Digital Multimeter

The UNI-T UT139S is a True RMS digital multimeter with NCV, auto/manual range, diode testing, and a 31-segment bar graph for accurate electrical measurements.

Description

The UNI-T UT139S True RMS Digital Multimeter is a versatile and reliable tool designed for both professionals and enthusiasts in the field of electronics and electrical testing. Featuring a clear digital display, this multimeter provides accurate measurements of voltage, current, and resistance, making it suitable for a wide range of applications. Its True RMS capability ensures precise readings even in non-linear loads, while the compact design allows for easy handling and portability. With a robust build quality and user-friendly interface, the UNI-T UT139S is an essential instrument for diagnosing electrical issues and performing routine maintenance tasks.

UNI-T UT139S True RMS Digital Multimeter

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring ‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

Features:

MAX/MIN/REL modes
Data hold, LED backlight, auto power off
Full range protection (600V)
True RMS
NCV
Auto/manual ranges selectable

Specifications:

Specifications	Range	UT139S
DC voltage (V)	600V	±(0.5%+2)
AC voltage (V)	600V	±(0.8%+3)
DC current (A)	10A	±(0.7%+2)
AC current (A)	10A	±(1%+3)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	99.99mF	±(4%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)
Temperature (°C)	-40°C~1000°C	±(1%+4)
Temperature (°F)	-40°F~1832°F	±(1.5%+5)
Features
Display count		6000
Auto range/Manual range/True RMS		√
Bandwidth (Hz)		45Hz~400Hz
NCV/Continuity buzzer		√
Duty cycle	0.1%~99.9%	√
Diode		Around 3V
LPF/LoZ (ACV)		√
Analog bar		√
General Characteristics
Power	1.5V battery (R6) x 2
Display	58mm x 36mm
Product color	Red and grey
Product net weight	345g
Product size	170mm x 80mm x 48mm
Standard accessories	Batteries, test leads, temperature probe

Applications:

Applications of UT139 Series True RMS Digital Multimeters

Package Contents:

1x Digital Multimeter UT139S
2x Test leads
1x Point-contact temperature probe
1x User manual

Note: Batteries are not included in the package

Documents:

User Manual
Datasheet
