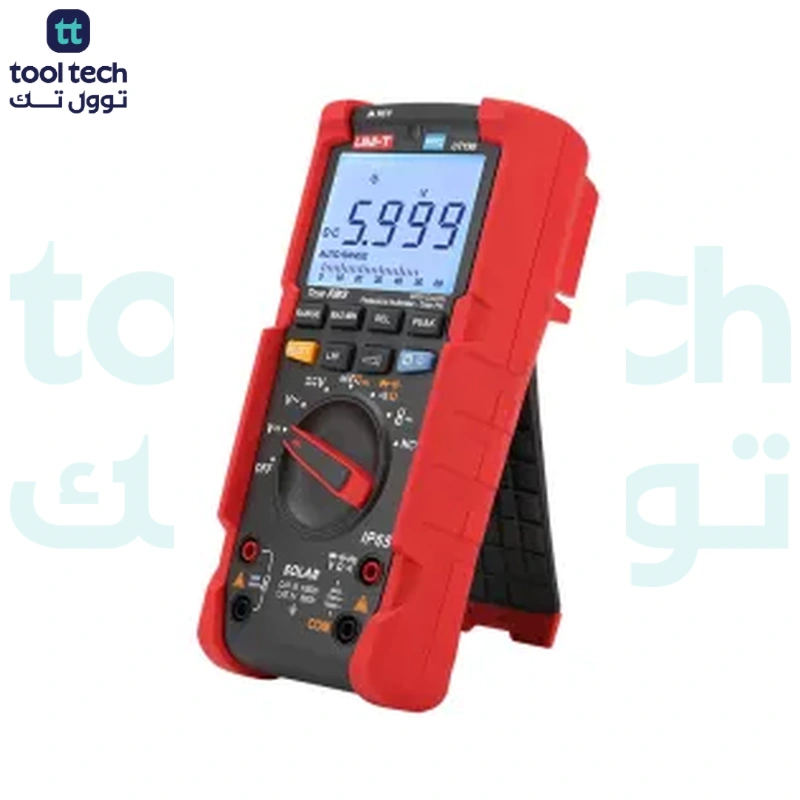

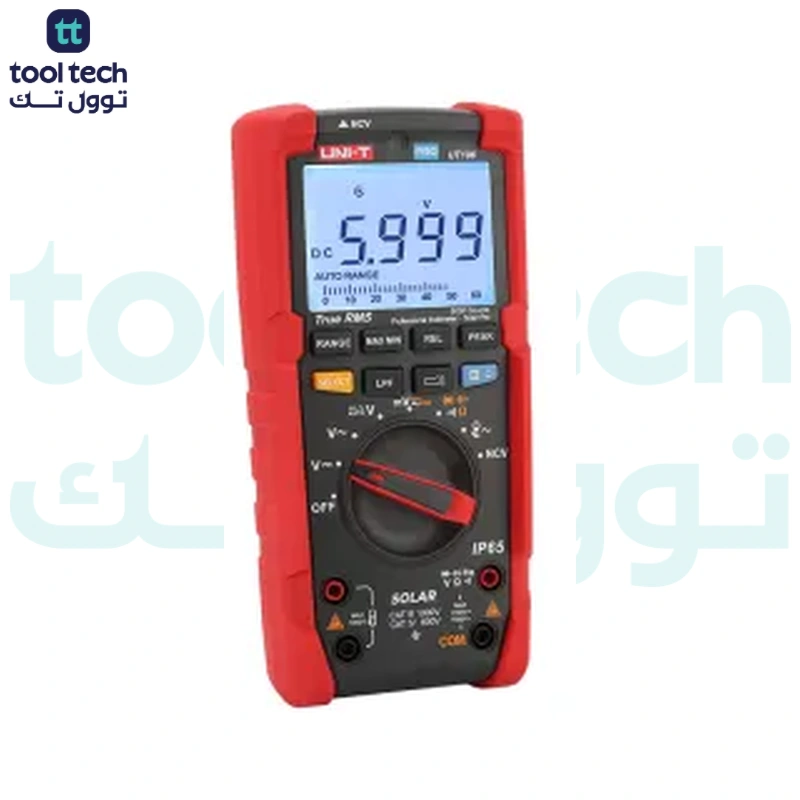

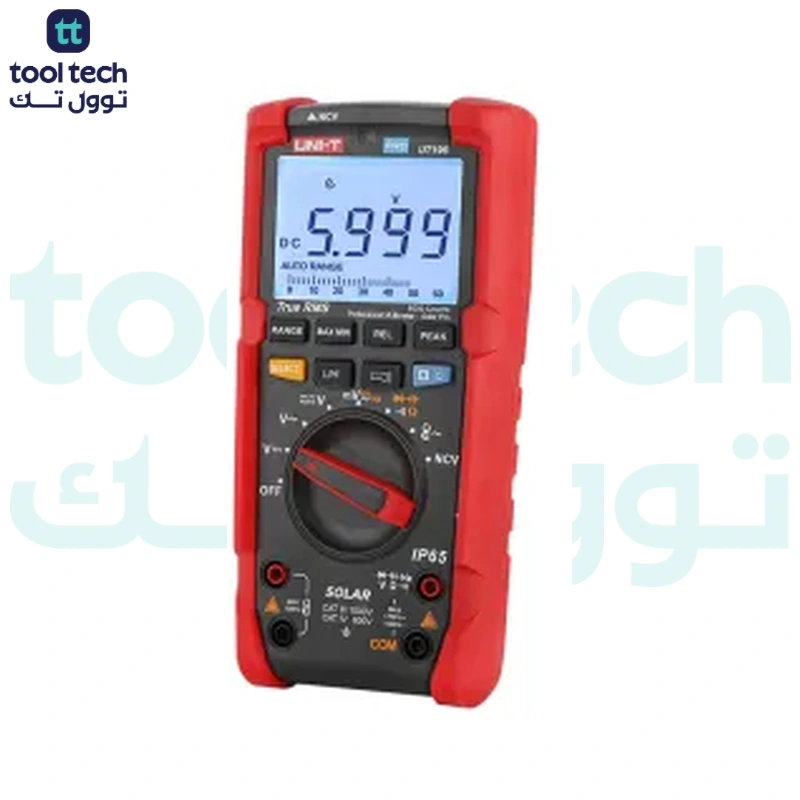

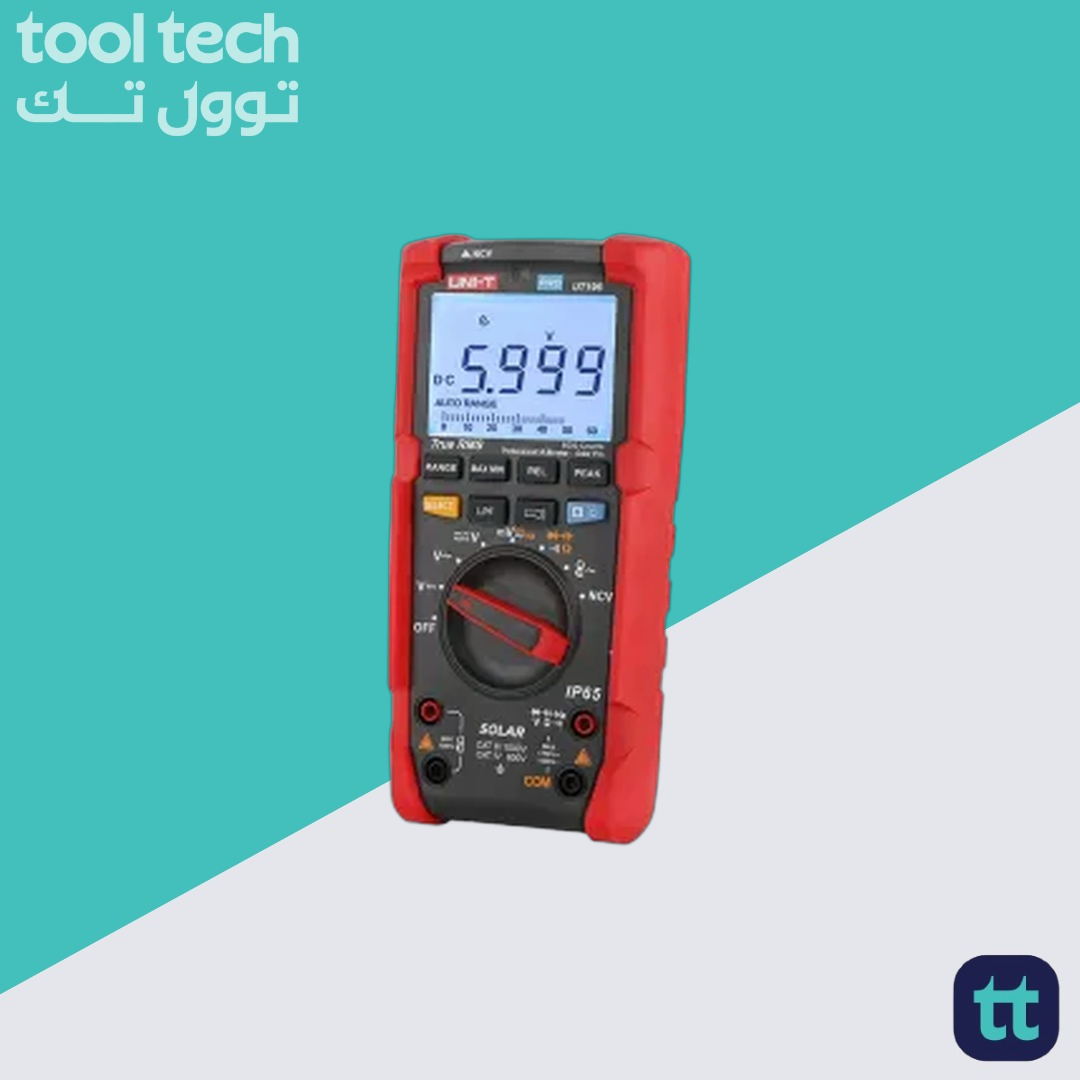

The UNI-T UT196 “Solar Pro” presents itself as a robust, high-voltage field instrument designed to inspire confidence from the moment you pick it up. Encased in a shock-resistant shell with textured rubber overmolding, its bold orange-and-black contours communicate durability without sacrificing ergonomic comfort. Generous finger grooves and a subtly angled back allow the meter to rest naturally in your hand or stand stably on a workbench when reading in tight spaces. A bright, scratch-resistant display window framed by reinforced guards beckons with clarity, even under bright sunlight or beneath the glow of its integrated flashlight.
Rather than overwhelming the user with buttons, the UT196 opts for an intuitive interface. A single rotary switch, surrounded by large, easy-to-track detents, invites one-hand operation, while two context-sensitive soft keys adapt to different measurement modes without cluttering the bezel. Haptic feedback through a reassuring “click” further grounds each selection, ensuring adjustments can be made confidently even with gloved hands.
The meter’s architectural balance extends to its display philosophy: a dual window combining crisp digital readouts with a fluid analog bar permits both precise readings and immediate trend visualization. Subtle backlighting automatically calibrates to ambient light, so you never miss a digit, whether underground in a junction box or aloft on a solar array.

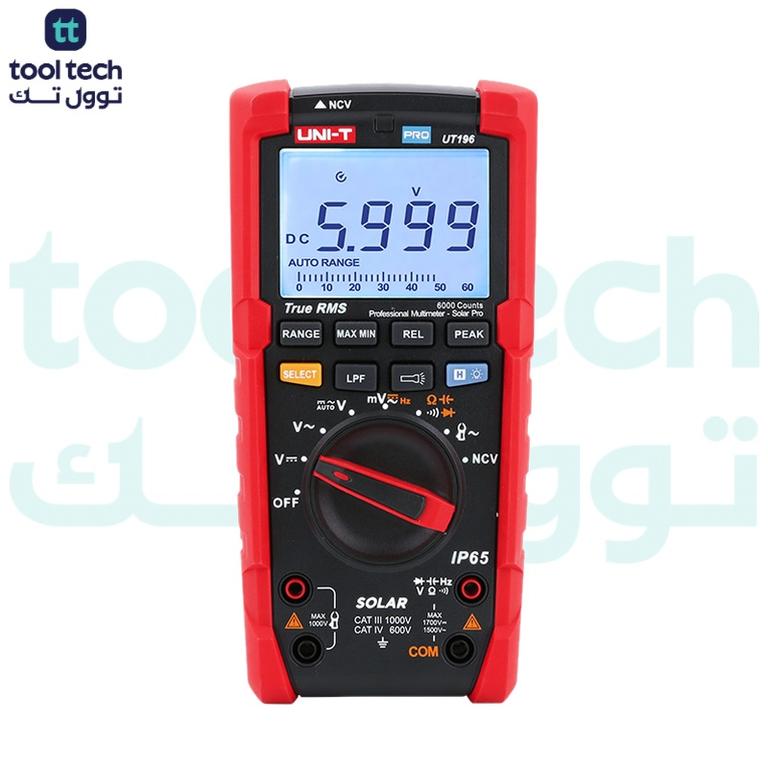

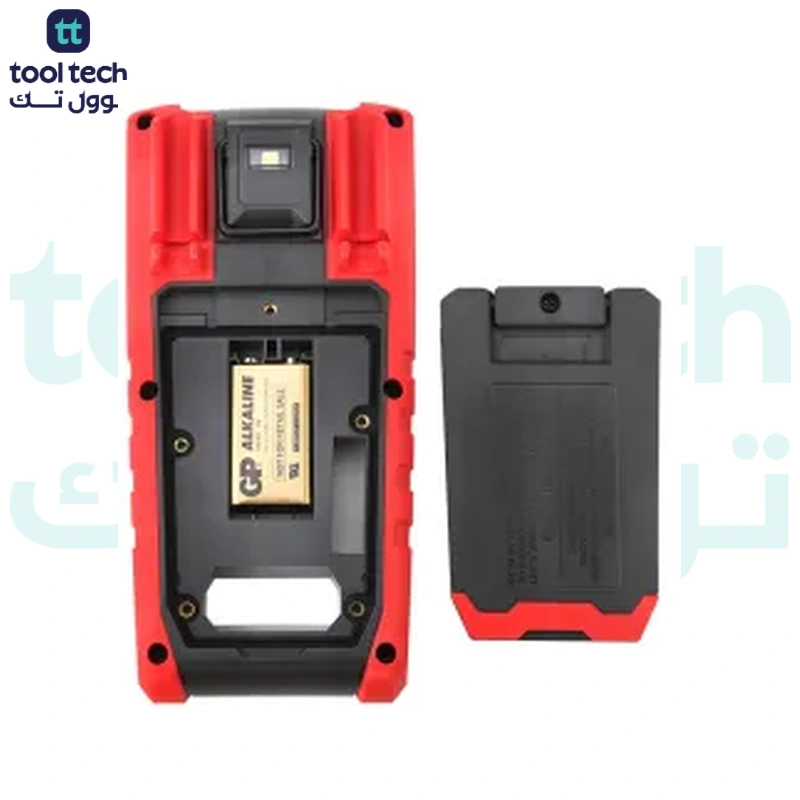

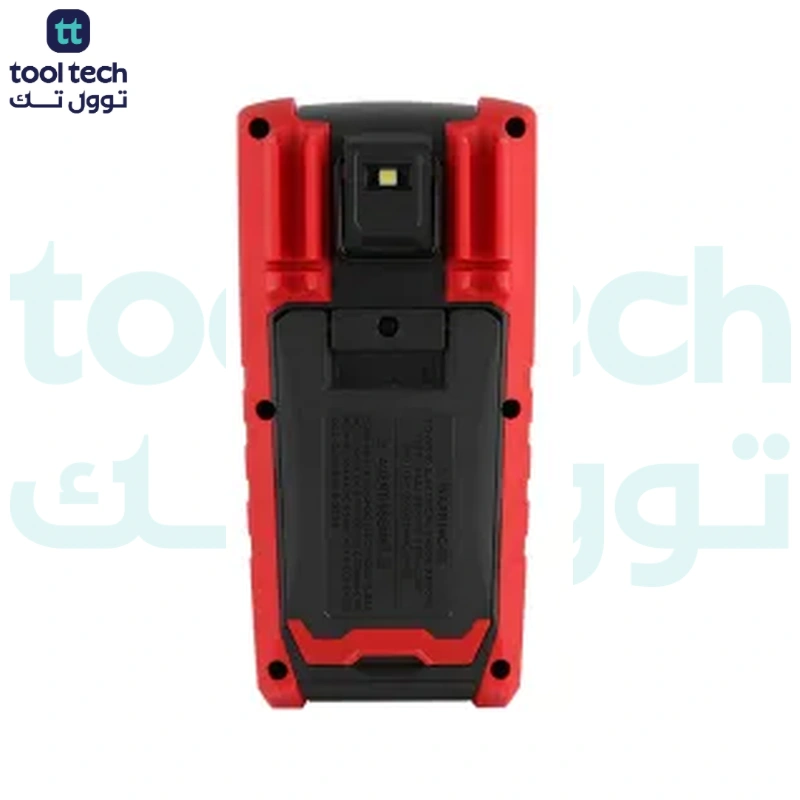

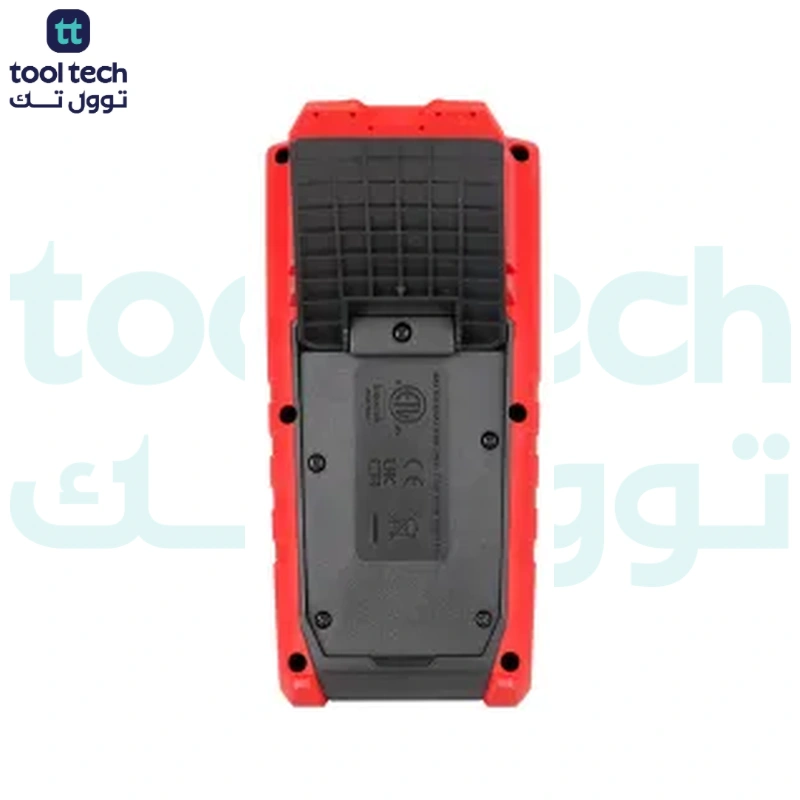

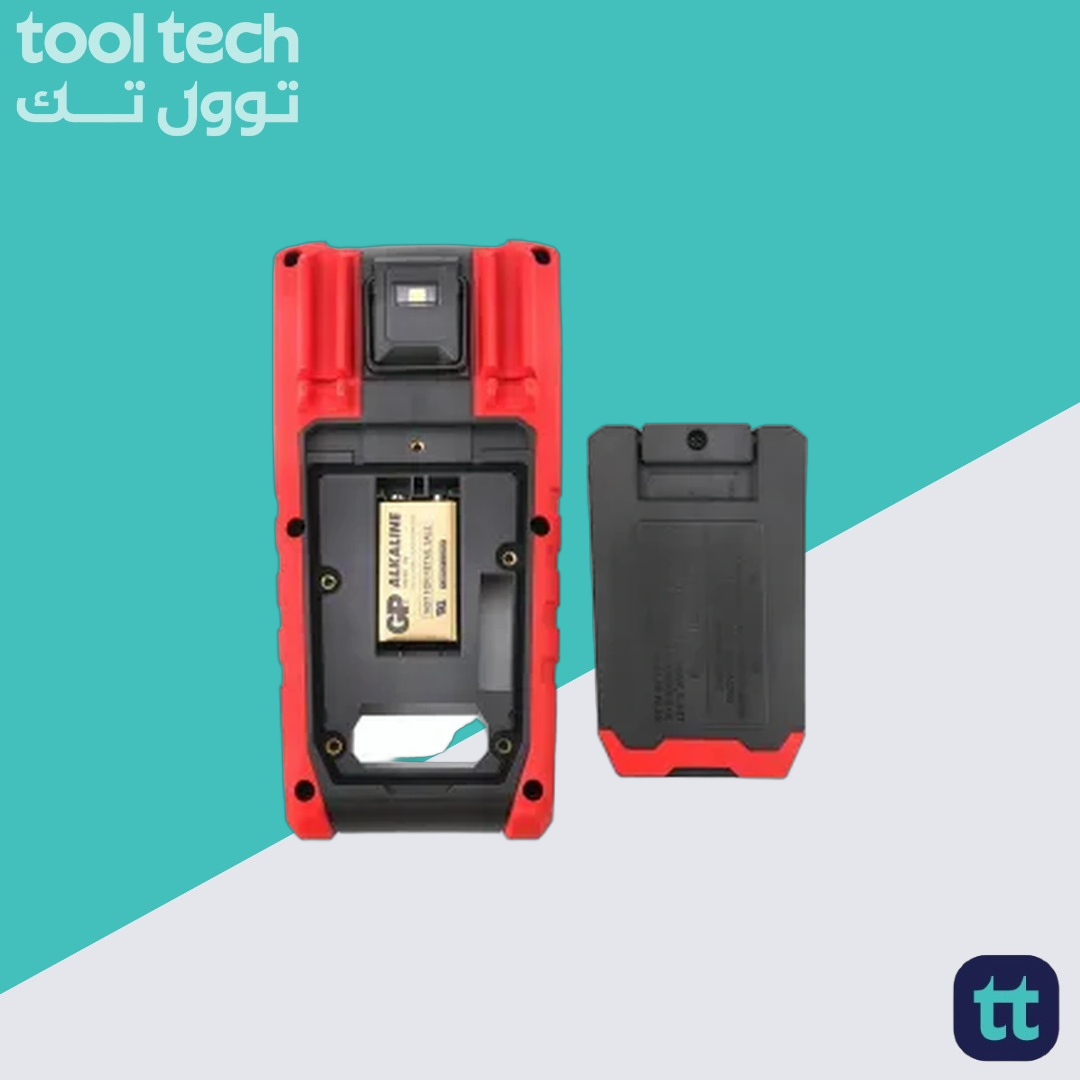

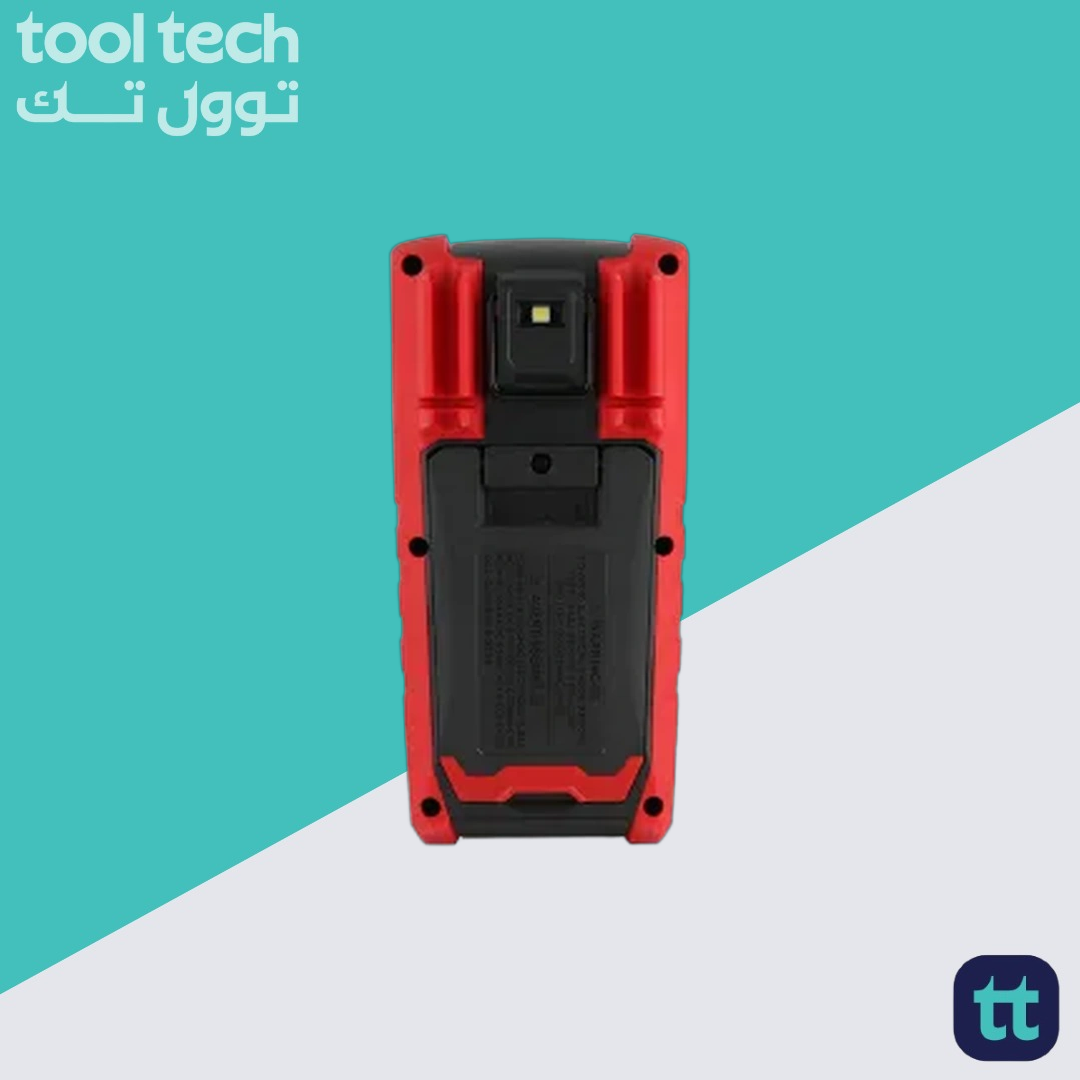

Designed with the practicalities of fieldwork in mind, the UT196 feels equally at home when clipped to a belt via its integrated hook as it does when stowed in a weatherproof case. Its battery compartment is secured by a captive bolt, reducing the risk of lost parts during routine swaps. Thoughtful recesses protect input jacks from accidental knocks, while bright color-coded ports guide quick, error-free connections.
Overall, the UNI-T UT196 embodies a marriage of rugged industrial design and user-centric ergonomics. It communicates at a glance that it’s ready for high-voltage environments, yet it remains approachable enough for everyday electrical troubleshooting making it a trustworthy companion on any service call.
Features:
- True RMS converter for accurate measurement of non-sinusoidal AC waveforms
- Voltage ranges up to 1700 V DC and 1500 V AC for high-voltage applications
- Dual display: 6000-count digital readout plus a 31-segment analog bar graph
- Auto-range and manual-range selection
- Non-contact voltage (NCV) detection (<7.5 V threshold)
- Low-pass filter (LPF) mode to isolate high-frequency noise
- Low-impedance (LoZ) mode to eliminate ghost voltages
- Peak hold, Min/Max recording and Relative (REL) mode
- Continuity and diode test functions with audible/visual indicators
- Data hold for frozen readings
- Backlight and built-in flashlight for dark or bright-light environments
- Auto power-off after 15 minutes (can be disabled)
- Audible and visual alarms (high-voltage, low-battery)
- Ruggedized housing: IP65 dust/water protection and 2 m drop-tested
- Safety rating to EN61010-1: CAT III 1000 V / CAT IV 600 V
Specifications:
| Category |
Parameter |
Specification |
| General |
Display: |
6000-count digital + 31-segment analog bar graph |
|
Range Selection: |
Auto / Manual |
|
Update Rate: |
2–3 times/second |
|
Operating Environment: |
0 °C to 40 °C, ≤75% RH (0–30 °C), ≤50% RH (30–40 °C), max altitude 2000 m |
|
Storage Temperature: |
–10 °C to 50 °C |
|
EMC Compliance: |
EN61326-1:2013, EN61326-2-2:2013 |
|
Power Supply: |
9V battery |
|
Dimensions & Weight: |
195 × 95 × 58 mm; 485 g |
|
Durability: |
IP65 rating; drop-tested to 2 meters |
|
Safety Standards: |
EN61010-1, EN61010-2-033; CAT III 1000V / CAT IV 600V |
| DC Voltage |
Ranges: |
600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1700 V |
|
Resolution: |
0.1 mV – 1 V |
|
Accuracy: |
±(0.5% + 5) [up to 600 V], ±(0.2% + 5) [1700 V] |
|
Input Impedance: |
1 GΩ (mV), ≈ 10 MΩ (others) |
|
Overload Protection: |
1500 Vrms / 1700 V DC; alarm >1700 V; “OL” >1750 V |
| AC Voltage (True RMS) |
Ranges: |
600.0 mV – 1500 V |
|
Resolution: |
0.1 mV – 1 V |
|
Frequency Response: |
45 Hz – 1 kHz |
|
Accuracy: |
±(0.8% + 3) [45–500 Hz]; ±(1.8% + 3) [500 Hz–1 kHz] |
|
Input Impedance: |
10 MΩ |
| Auto AC/DC Voltage |
Range: |
600.0 V |
|
Resolution: |
0.1 V |
|
Accuracy: |
±(2.0% + 3) [DC–500 Hz]; ±(4.0% + 3) [500 Hz–1 kHz] |
|
Input Impedance: |
2 MΩ |
| Resistance |
Ranges: |
600.0 Ω – 60.00 MΩ |
|
Resolution: |
0.1 Ω – 0.01 MΩ |
|
Accuracy: |
±(1% + 2) to ±(2.5% + 5) depending on range |
|
Open Circuit Voltage: |
1 V |
| Continuity |
Threshold: |
Beeps if <10 Ω; no beep if ≥50 Ω |
|
Indicators: |
Audible and visual |
| Diode Test |
Open Circuit Voltage: |
3 V |
|
Indicators: |
Beep pattern for pass/fail |
| Capacitance |
Ranges: |
60.00 nF – 60.00 mF |
|
Resolution:: |
0.01 nF – 0.01 mF |
|
Accuracy: |
±(1.9% + 5) to ±(5% + 5) |
|
Measurement Time: |
20 seconds (at highest range) |
Applications:
- Solar energy systems.
- Wind energy maintenance.
- Utility and substation work.
- Industrial environments.
- HVAC and automation technicians.
- Field service engineers.
- Ghost voltages.
- Technical education and labs.
- Contact safety checks.
- Commissioning and routine testing.
Package Include:
- 1x UT196 Solar Pro multimeter
- 1x Test lead set
- 1x 9V battery
- 1x User manual
