Name: UNI-T UT195E Professional Multimeter
SKU: UT195E
Availability: OutOfStock

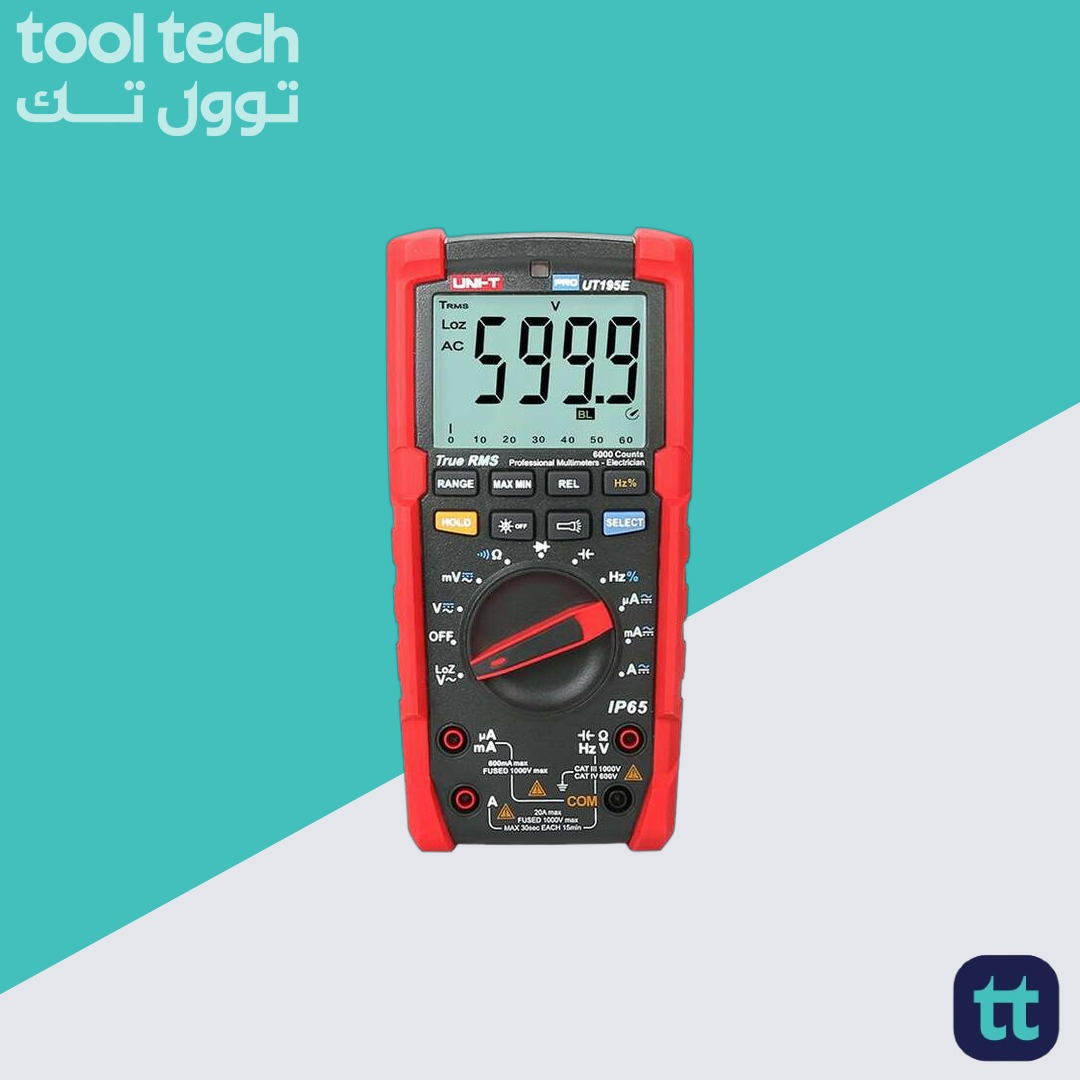

UNI-T UT195E Professional Multimeter

4,950 EGP

Rugged, industrial-grade True RMS multimeter (IP65, 2 m drop-proof) with safety CAT III 1000 V/CAT IV 600 V, LoZ mode, analog bargraph and built-in flashlight.

Out of stock

Description

The UNI-T UT195E Professional Multimeter is a versatile and reliable tool designed for both professionals and enthusiasts in the electrical field. Featuring a clear digital display, this multimeter allows for accurate measurements of voltage, current, and resistance, making it suitable for a wide range of applications, from troubleshooting electrical systems to conducting routine maintenance. Its robust construction ensures durability, while the intuitive interface provides ease of use, even for those new to multimeter operation. With safety features integrated into its design, the UNI-T UT195E is a practical choice for anyone looking to enhance their toolkit with a dependable measuring instrument.

UNI-T UT195E Professional Multimeter

Built for harsh industrial environments, the UNI-T UT195E Professional Multimeter exudes rugged reliability. Featuring an IP65 rating and 2-meter drop proofing, it resists dust, moisture, and shocks—ensuring dependable performance even under demanding conditions. Its rubberized housing offers a sturdy, secure grip for safe handling.

Engineered with practical functionality, the UT195E boasts a bright 6000-count display and a responsive 31-segment analog bar that delivers clear, rapid insights into measurements. An integrated flashlight illuminates dim work areas, while data hold, auto backlight, and auto power-off features enhance convenience and usability.

Equipped with True RMS measurement, the device ensures accuracy even in waveform-distorted scenarios. Safety is paramount with CAT III 1000 V and CAT IV 600 V ratings. The inclusion of LoZ (low impedance) voltage mode guards against ghost readings. Altogether, the UT195E blends resilience, intuitive design, and professional-grade measurement confidence into one compact instrument.

Feature:

IP65 environmental protection (dust and water resistance)
2-meter drop proofing
True RMS measurement
LoZ (low impedance) voltage mode
High-resolution 6000-count LCD display
31-segment analog bar graph
Integrated flashlight
Auto backlight (light sensor controlled)
Data Hold function
MAX/MIN recording functionality
Auto power-off
CAT III 1000 V and CAT IV 600 V safety ratings

Specifications:

Specifications	Range	UT195E
DC voltage (V)	1000V	±(0.5%+3)
AC+DC	750V	±(0.7%+3)
LoZ ACV	600V	±(2%+3)
DC current (A)	20A	±(0.8%+3)
AC current (A)	20A	±(1%+3)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance	60mF	±(3%+5)
Frequency	60Hz~10MHz	±(0.1%+4)
Duty cycle	0.1%~99.9%	±(2%+5)
Features
Display count		6000
Display interface (LCD)		Single
Measurement sampling rate	times/s	3
Analog bar sampling rate	times/s	10
Analog bar	31 sections	√
True RMS		√
AC voltage frequency response		45~400Hz
AC current frequency response		45~400Hz
Diode/Continuity test		3.5V
Peak hold	250μs
Auto/Manual range	√
Continuity buzzer	√
Low battery indication	√
Data hold/Auto power off	√
MAX/MIN	√
Function selection	√
Flashlight/Auto backlight	√
General Characteristics
Power	9V battery
LCD size	66mm x 51mm
Product Color	Red and grey
Product net weight	437g
Product size	195mm x 95 mm x 58mm

Applications:

Industrial Electrical Maintenance
Factory Equipment Troubleshooting
Field Service Operations
Construction and Facility Management

Package Contents:

1x UNI-T UT195E Professional Digital Multimeter
1x Test Probes
1x 9 V Battery
1x Carrying Bag
1x User Manual (English, with options in German/French/Spanish)

Documents:

Datasheet
User Manual
