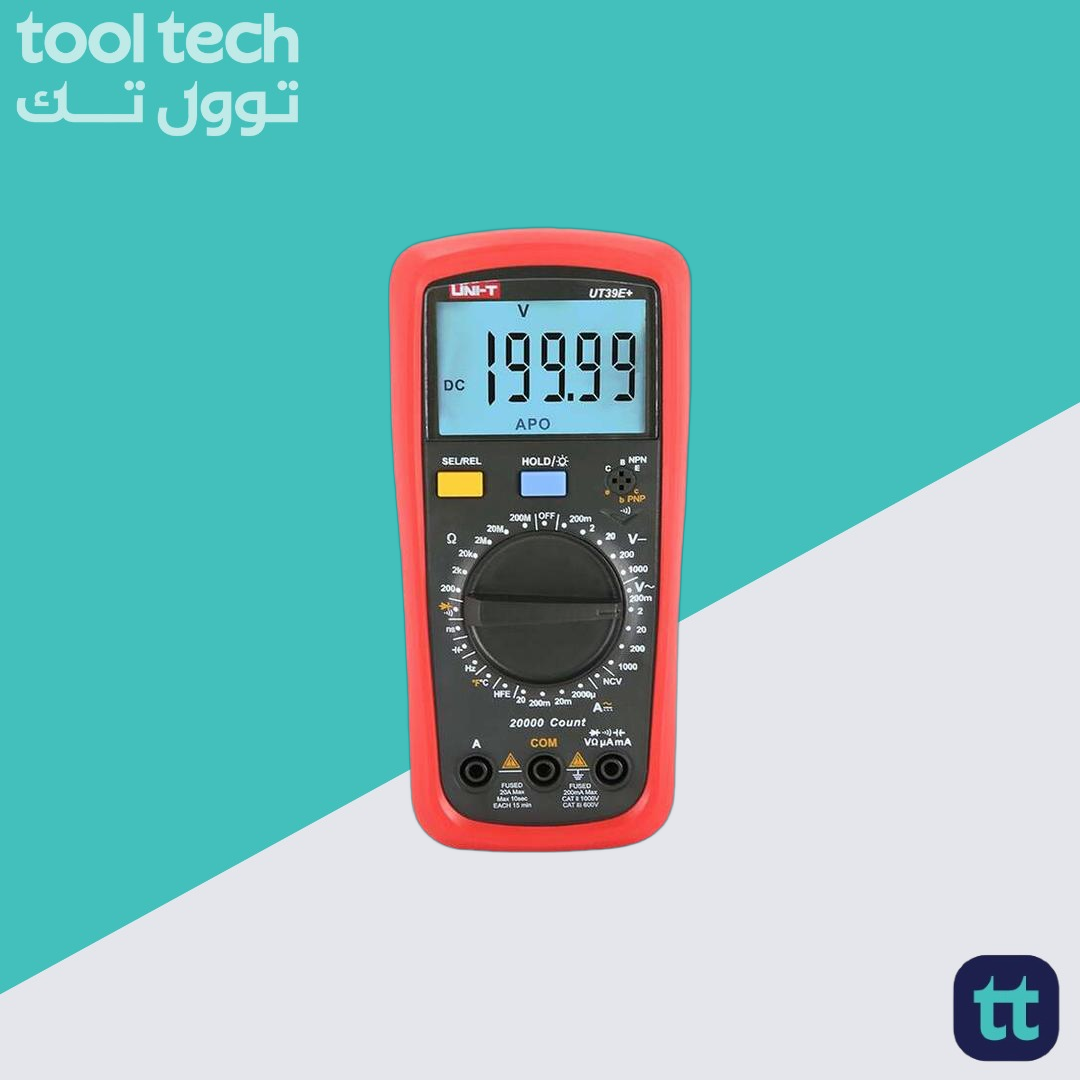

Name: UNI-T UT39E+ Digital Multimeter
SKU: UT39E
Availability: InStock

UNI-T UT39E+ Digital Multimeter

1,700 EGP

The UNI-T UT39E+ Digital Multimeter is a reliable and accurate tool designed for professional electrical testing and troubleshooting. It delivers precise measurements of voltage, current, resistance, continuity, and more, making it ideal for electricians, technicians, and maintenance work. With a clear display, stable performance, and durable design, the UT39E+ helps users diagnose electrical issues quickly, work safely, and achieve dependable results every time.

Description

The UNI-T UT39E+ Digital Multimeter is a versatile and reliable tool designed for both professionals and DIY enthusiasts, offering precise measurements of voltage, current, and resistance. Its user-friendly interface features a clear LCD display, making it easy to read results in various lighting conditions. With a compact design and durable construction, this multimeter is ideal for use in a variety of settings, from home projects to industrial applications. The UT39E+ also includes essential functions such as data hold and auto power-off, ensuring efficient and convenient operation for all your electrical testing needs.

UNI-T UT39E+ Digital Multimeter

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+/E+ are suitable for HVACR maintenance with its temperature measurement feature.

UT39E+ is a 20000 count high accuracy meter, suitable for electronics design work.

Features:

1000V DC voltage measurement
750V AC voltage measurement
10A DC/AC current measurement
Resistance/Capacitance
hFE
Diode/Continuity test

Specifications:

Specifications	Range	UT39E+
Category ratings	CAT II 1000V, CAT III 600V
DC voltage (V)	200mV/2V/20V/200V/1000V	±(0.05%+3)
AC voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+10)
DC current (A)	2000uA/20mA/200mA/2A/20A	±(0.5%+5)
AC current (A)	2000uA/20mA/200mA/2A/20A	±(0.8%+10)
Resistance (Ω)	200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ	±(0.3%+2)
Capacitance (F)	2000uF	±(4%+20)
Frequency (Hz)	10Hz~2MHz	±(0.1%+3)
Temperature	-40℃~1000℃	±(1%+5)
Temperature	-40℉~1832℉	±(1.5%+5)
Conductance (nS)	0.1~100nS	±(1%+3)
Display count		20000
NCV		√

General Characteristics
Power	1.5V battery (R03) x 2
Display	56.5mm x 36mm
Product net weight	330g
Product size	175mm x 83mm x 53mm

Applications:

Voltage measurement (AC/DC).
Current measurement (AC/DC).
Resistance / Continuity testing.
Diode testing.
Capacitance measurement.
Frequency measurement.
Temperature measurement.
Conductance / high resistance measurement.
Non-Contact Voltage (NCV) detection.

Package Contents:

1× UT39E+ Digital Multimeter
1× Pair of test leads
1× Temperature probe (K-type or similar)
1× Battery or batteries needed for operation
1× Rubber case or protective cover
1× Operating / user manual
1× Box / outer packaging box

Documents:

Datasheet
User Manual
