Name: UNI-T UTi120P Pocket-Sized Thermal Camera
SKU: UTI120P
Availability: InStock

UNI-T UTi120P Pocket-Sized Thermal Camera

13,000 EGP

The UNI-T UTi120P Thermal Imaging Camera is a compact and efficient tool for fast temperature detection and visual fault diagnosis. It delivers clear thermal images to quickly locate overheating components, electrical issues, and energy loss. Ideal for electrical inspection, HVAC maintenance, and basic industrial troubleshooting, the UTi120P combines portability, ease of use, and reliable performance—making it a smart choice for professionals who want quick results and better maintenance decisions.

Description

The UNI-T UTi120P Pocket-Sized Thermal Camera is a compact and versatile tool designed for a variety of thermal imaging applications. With its lightweight design, this thermal camera is easy to carry, making it ideal for professionals and DIY enthusiasts alike. It features a user-friendly interface that allows for quick access to essential functions, enabling users to capture clear thermal images and monitor temperature variations effectively. Whether for building inspections, electrical troubleshooting, or HVAC maintenance, the UNI-T UTi120P provides reliable performance in a portable format, ensuring you have the right tool at your fingertips whenever you need it.

UNI-T UTi120P Pocket-Sized Thermal Camera

UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.

Features :

Mini and portable
2.4” TFT display screen (320×240 Pixels)
IR resolution: 120×90
Temperature measurement range:-20℃ to 400℃ / -4℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
Image capture
Color palettes: 3(Iron, Rainbow, Grey)
PC software analysis
Rechargeable Li-ion battery
1/4” tripod mounting hole
1m drop proof

Specifications:



Technical Data
IR resolution (Pixels)	120×90
Display	2.4” TFT LCD (320×240)
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
General Characteristics
Battery	Fixed Li-ion battery (3.7V 1350mAh)
Battery operation time	≥3.5 hours
USB	Micro USB
Drop proof	1m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE, RoHS
Product net weight	125g
Product size	76mm×76mm×24mm

Applications:

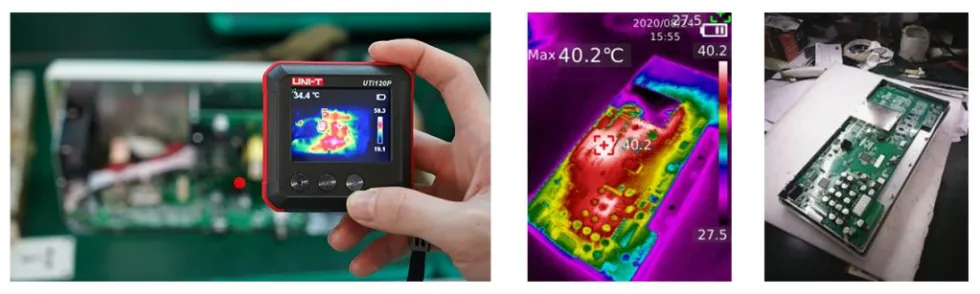

PCBA inspection:

UTi120P can quickly locate the components where temperature is abnormally higher.

Power Distribution Cabinet Inspection
The thermal camera can quickly find the problems on switcher, contactor, transformer etc, which maybe caused by oxidation, corrosion, poor contact.

Motor inspection:
It can detect the imbalance loading, overloading, wiring error and parts malfunction etc. Heat insulation protection is the key action for avoid fire risk, users can also use the thermal camera check the protection situation regularly to ensure the safety production.

Package Contents:

1x UNI-T UTi120P Pocket-Sized Thermal Camera Unit
1x User Manual

Documents:

UTi120P-User-Manual
